Lithe Audio WiSA Cinema Subwoofer

Deliver Resonant Bass over Wireless Connections

Experience the deep thumping bass of movie theaters in your own home with the Lithe Audio WiSA Cinema Subwoofer. This powerful subwoofer contains an 8-inch downward-firing driver with dual ports and a 150W RMS amplifier in order to produce premium resonant bass audio in tandem with your home audio speakers. Built-in WiSA HT technology enables the subwoofer to wirelessly transmit HD audio, including Dolby Atmos or Dolby Audio, from compatible sources alongside other WiSA certified speakers. Connect the Subwoofer to traditional wired AVRs via RCA connections to include the Subwoofer into traditional audio systems, or connect to a secondary subwoofer for even more powerful bass audio. All of this premium audio tech fits inside a compact design that can fit into entertainment cabinets, behind or between furniture, or wall mounted to save more space.

• WiSA subwoofer delivers deep bass in when paired with any wireless WiSA HT compatible speakers or wired AVRs
• Contains 8" driver, 150W amplifier, and dual ports for robust, deep bass audio
• Supports Dolby Atmos or Dolby TrueHD audio sources
• WiSA connectivity requires Lithe Audio Cinema Hub, Lithe Audio Soundsend Transmitter, or other WiSA transmitter

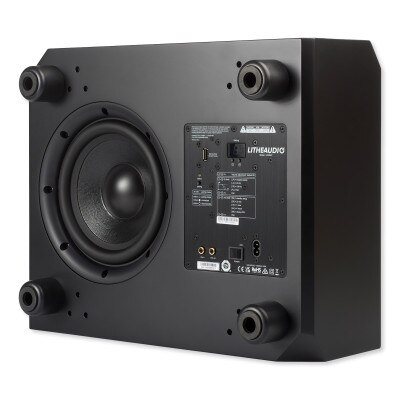

• Digital control interface of Phase, Gain, and LPF settings
• Line-out port allows for stacking multiple subwoofers for deeper and richer bass
• Slim profile and optional wall mounting allow for versatile and discreet installation

Installation Details

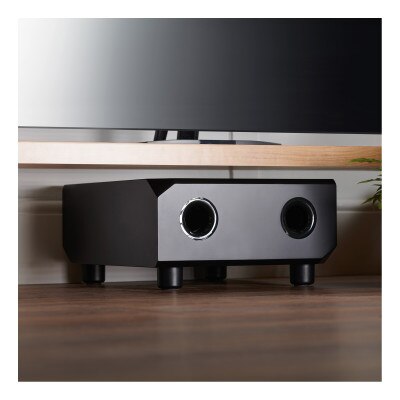

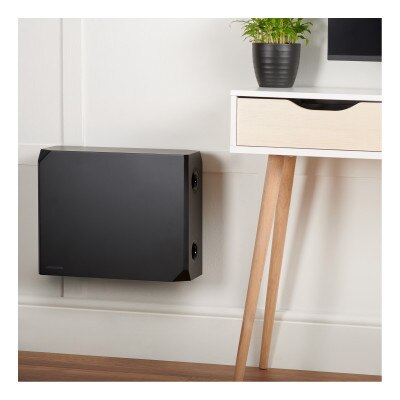

The Subwoofer can be placed onto floors, shelves, or other horizontal surfaces. The Subwoofers' rubberised feet prevent the Subwoofer from easily sliding around. Alternatively, the Subwoofer can be wall mounted with optional wall brackets to lift the device off of the floor.

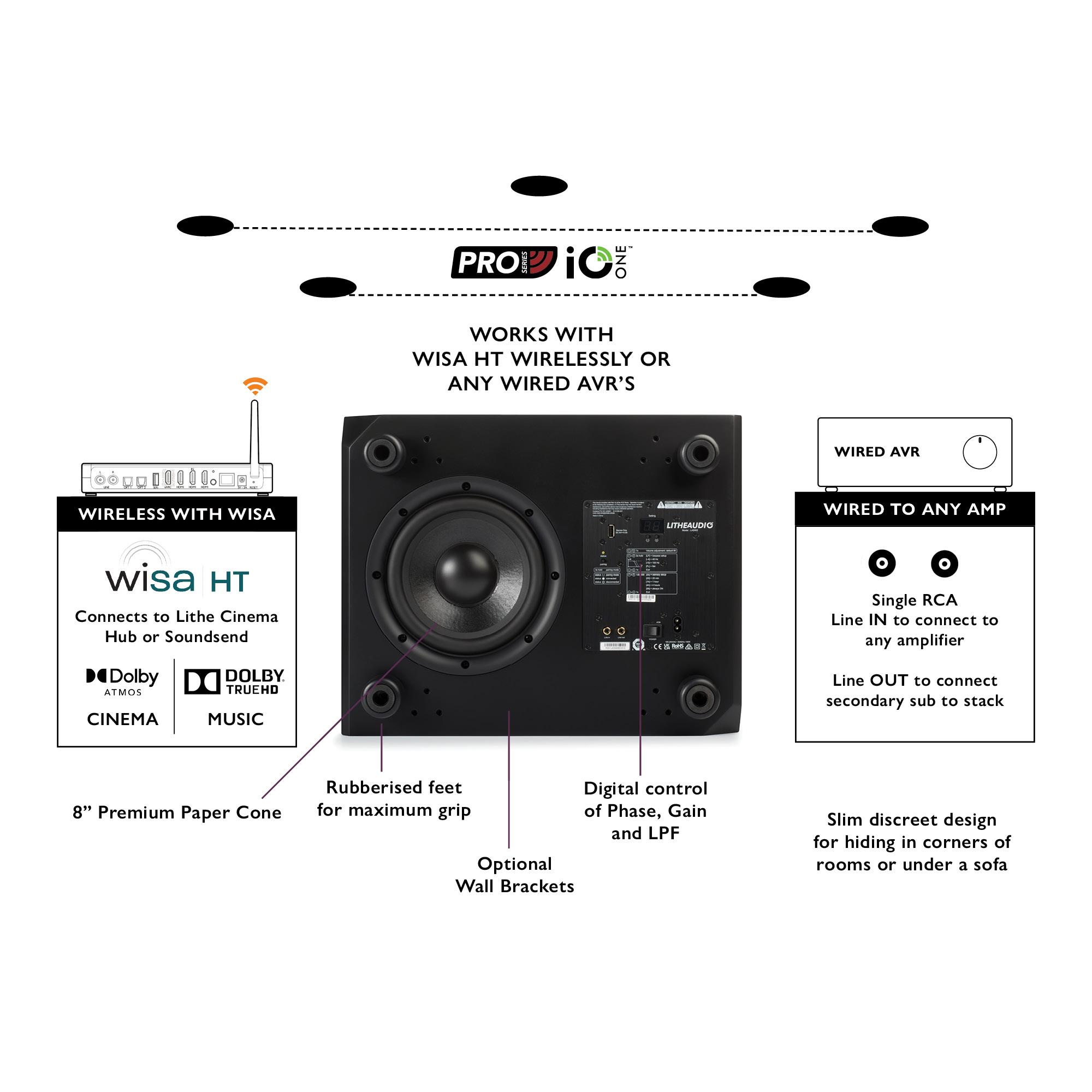

The Subwoofer wirelessly connects to a WiSA HT compatible transmitter, such as the Lithe Audio WiSA Cinema Hub or Lithe Audio WiSA SoundSend Transmitter. If the WiSA HT transmitter is paired with WiSA speakers, the subwoofer will synchronize with the speakers. The Subwoofer can use its "Line In" RCA input to connect to wired amplifiers. The Subwoofer can also be stacked with a secondary subwoofer for increased bass performance through its "Line Out" RCA output.

Lithe Audio App

The Lithe Audio app, for iOS and Android devices, lets you effortlessly control the music throughout your home from a single interface. It's simple and easy to set up because it will automatically detect all Wi-Fi speakers that are connected to your network. Easily drag and drop rooms into groups to play the same music in multiple spaces, or keep rooms separate to enjoy different music in each area simultaneously. You can fully personalize your zones, allowing speakers to be independently renamed, switched between Left and Right speaker output, and volume controlled.

Contents

• Wireless Active Subwoofer
• Power Cable
• Instruction Manual

NOTE: WiSA connectivity requires Lithe Audio WiSA Cinema Hub, Lithe Audio WiSA SoundSend Transmitter, or other WiSA transmitter, all sold separately.

Innovative Audio Products

As an innovative audio company based in the United Kingdom, Lithe Audio specializes in wireless audio technologies for the residential and hospitality markets. They offer an extensive selection of active ceiling speakers, each designed with cutting-edge innovation. Their expertise lies in Wi-Fi and Bluetooth technologies, seamlessly integrating with leading smart home brands like Apple, Amazon, Google, and Control4. This enables customers around the world to fully embrace the evolving audio landscape of today and the future.

• Manufacturer Part #: 06540
• EAN: 5060544557304

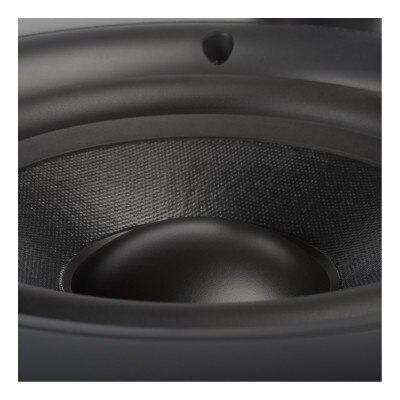

• Woofer: 8" Paper Woofer Cone
• RMS Power: 150W RMS
• Connectivity:
• Wireless: WiSA – Connects to Cinema Hub or Soundsend
• Wired: RCA In/Out
• Ability to add a Streamer to add AirPlay2, Google Cast
• Bluetooth Connectivity (optional Extra)
• Enclosure: Bass Reflex / Dual Ported
• Dimensions: 7.67 H x 17.71 W x 14.17 D inches (195 x 450 x 360 mm)
• Power Consumption: 100-240VAC – 50/60Hz
• Weight: 21.38 lbs (9.7kg)
• Ratings and Certifications: FCC, CE, UKCA, RoHS
• Warranty: 2-Year Limited

»Lithe Audio 06540 WiSA Cinema Subwoofer Spec Sheet (.pdf)
