Lithe Audio WiSA Module Bolt-On For Pro Series Wi-Fi Ceiling Speakers

SKU: LI06521

Usually ships in 3-5 days.

$120.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Easily Upgrade to a Cinema Quality Audio System

Add high quality Dolby audio format to your Lithe Audio speaker system with the Lithe Audio WiSA Module Bolt-On For Pro Series Ceiling Speakers! This bolt-on module made exclusively for the Lithe Audio Pro Series Wi-Fi Ceiling Speakers adds the WiSA (Wireless Speaker and Audio) audio specification to your home audio system to transform it into a cinema quality audio experience. With the WiSA Module and WiSA-enabled devices, you can enjoy uncompressed high quality audio, including premium Dolby Audio and Dolby Atmos formats from your favorite streaming services, media players, or video game consoles. Stream uncompressed audio at 24-bit, 96KHz with an extremely low 5.2ms of latency and less than 1 microsecond of synchronization to up to eight (8) channels. The WiSA Module automatically recognizes the size of your WiSA certified audio system and provides the highest quality audio possible based on the system size, from single zone stereo speaker up to Dolby 7.1 and Dolby Atmos surround sound configurations. One WiSA Module is required to connect to a WiSA certified transmitter, TV, or the Lithe Audio WiSA Cinema Hub to achieve Dolby Audio for your entire system.

  • Add-on audio module connects to a WiSA audio hub or transmitter to enable delivery of highest quality audio based on system size and active audio source
  • Transmits 24bits at 48kHz/96kHz at less than 1/10th the latency of a Bluetooth audio device, preventing audio delay and visible lip sync

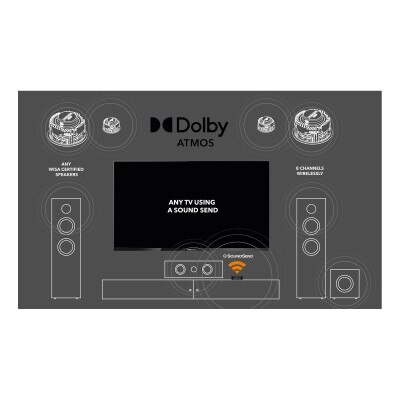

  • Supports Dolby Atmos for 5.1.2 and 7.1.2 surround sound speaker setups
  • WiSA compatible audio sources include TVs, A/V receivers and matrices, video game consoles, VR devices, and more
  • Automatically recognizes surround sound configurations and adjusts performance if WiSA Certified speakers / components are added or removed

Installation Details

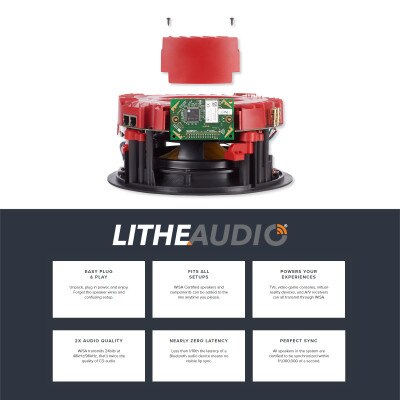

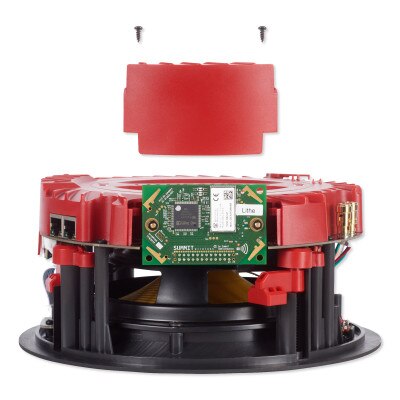

The WiSA Module Bolt-On attaches directly onto Pro Series Wi-Fi Ceiling Speakers. On the Pro Series Speaker is a removable cap that covers the mounting location for the WiSA Module. Simply connect the Module to a powered circuit and secure it to the Pro Series Speaker. The WiSA Module must then connect to a Lithe Audio WiSA SoundSend Transmitter of a Lithe Audio Cinema Hub to be added into your audio system.

Lithe Audio App

The Lithe Audio app, for iOS and Android devices, lets you effortlessly control the music throughout your home from a single interface. It's simple and easy to set up because it will automatically detect all Wi-Fi speakers that are connected to your network. Easily drag and drop rooms into groups to play the same music in multiple spaces, or keep rooms separate to enjoy different music in each area simultaneously. You can fully personalize your zones, allowing speakers to be independently renamed, switched between Left and Right speaker output, and volume controlled.

Contents

  • Lithe Audio WiSA Module Bolt-On For Pro Series Wi-Fi Ceiling Speakers

Notes

Innovative Audio Products

As an innovative audio company based in the United Kingdom, Lithe Audio specializes in wireless audio technologies for the residential and hospitality markets. They offer an extensive selection of active ceiling speakers, each designed with cutting-edge innovation. Their expertise lies in Wi-Fi and Bluetooth technologies, seamlessly integrating with leading smart home brands like Apple, Amazon, Google, and Control4. This enables customers around the world to fully embrace the evolving audio landscape of today and the future.

Specifications

  • Manufacturer Part #: 06521
  • EAN: 5060544555034
  • Supported Audio Formats:
    • Supports 2.0 / 2.1 / 3.0 / 3.1 / 5.1 / 7.1 / 5.1.2 speaker configurations
    • Dolby Digital
    • Dolby Digital+ / Dolby TrueHD
    • Dolby Atmos and Dolby Atmos Virtual
    • PCM Multi-Channel
  • Certifications: WiSA Certified
  • WiSA: 24-bit / 48KHz or 24-bit / 96KHz
  • Number of Channels: 8
  • Wireless Audio Latency: 5.2ms
  • Synchronization Between Speakers: <1ms
  • Dolby Surround Formats Supported: 5.1, 7.1 and Dolby Atmos
  • App Compatibility: iOS 10.0 or later, Android 5.0 or later
  • Warranty: 2-Year Limited
