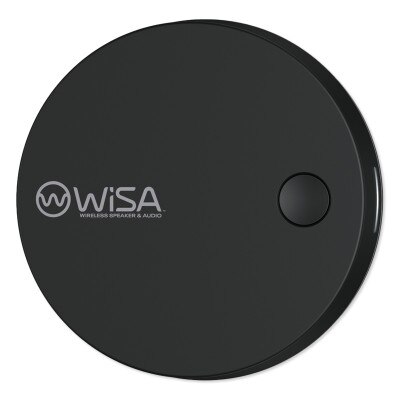

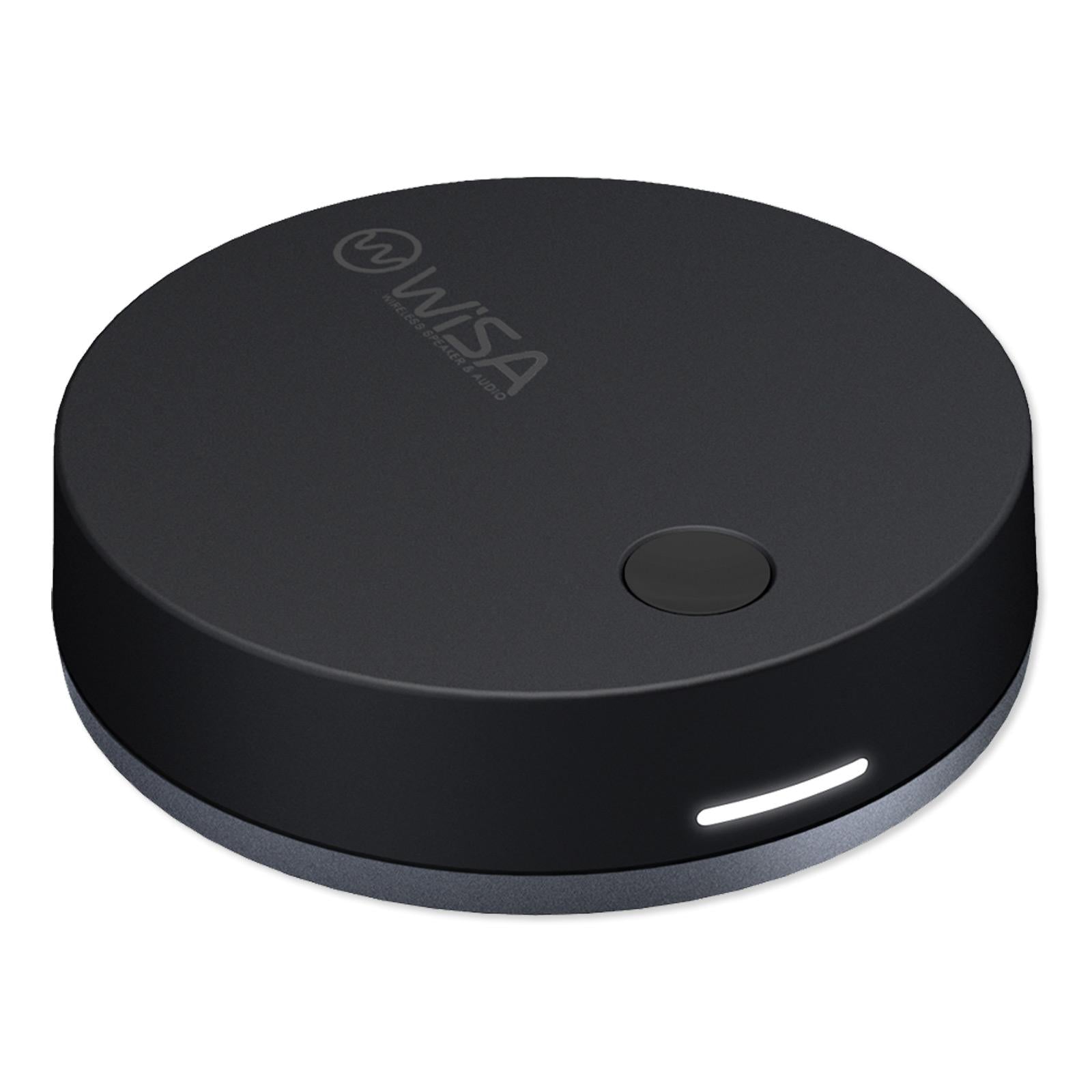

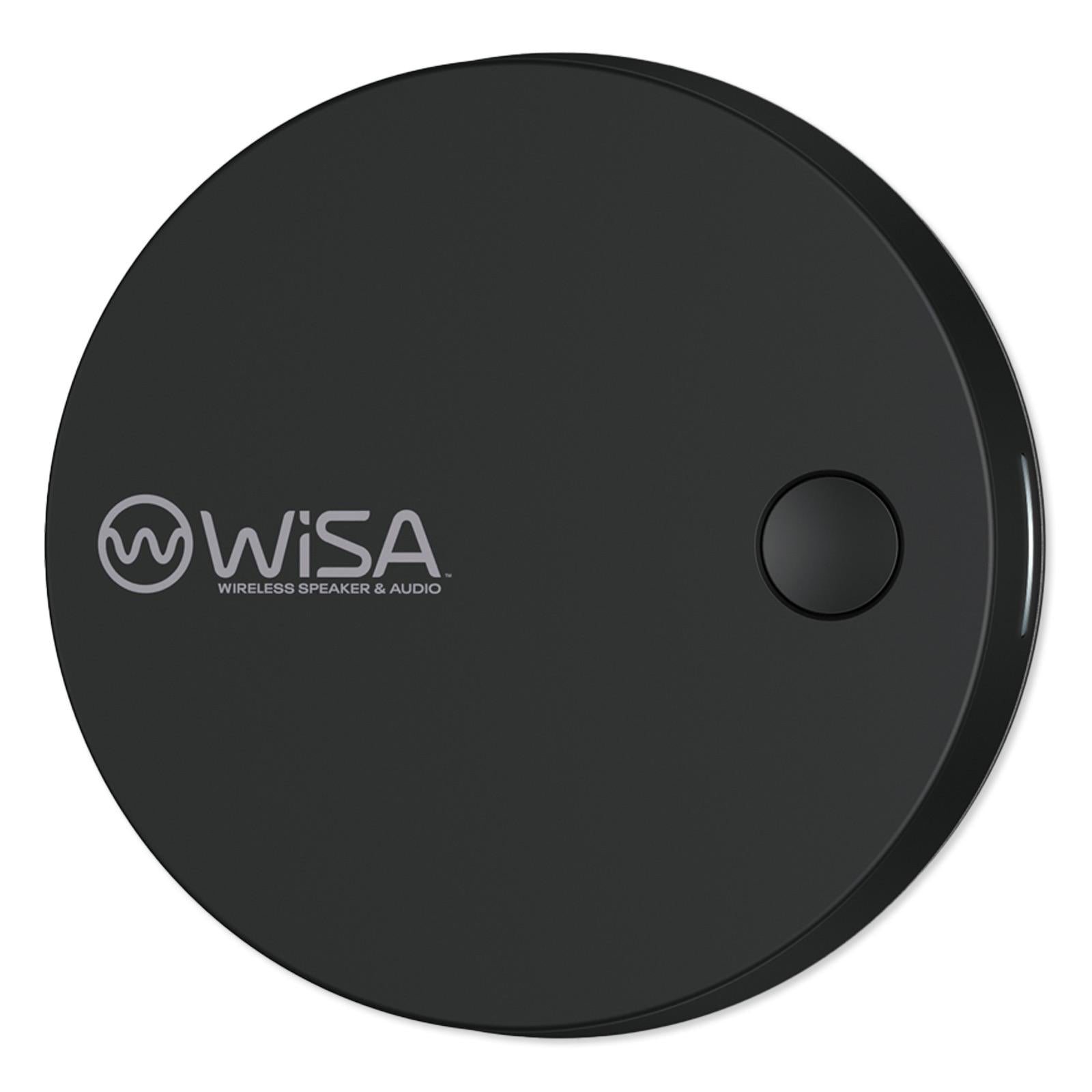

Lithe Audio WiSA SoundSend Transmitter

Experience True Cinema Sound With Wireless Connections

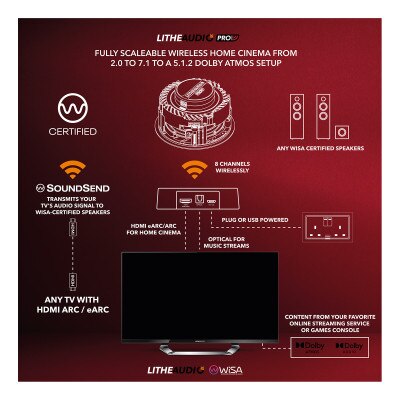

Set up the ultimate home theater experience with the Lithe Audio WiSA SoundSend Transmitter. This AV transmitter connects to your TV via an HDMI-ARC or HDMI-eARC compatible HDMI port to relay audio to WiSA Certified HT compatible speakers. The transmitter can pair with up to 8 channels to deliver 24-bit, 96 KHz uncompressed audio with ultra-low latency and less than 1 microsecond of synchronization between speakers to turn your home audio system into a wireless cinema quality audio experience. The WiSA SoundSend Transmitter supports 2.0 to 7.1 stereo and Dolby Atmos 3.1.2 and 5.1.2 audio configurations. Easily set up the system using the SoundSend app for iOS and Android devices, where you can manage and adjust the speaker and audio settings, and adjust the volume, which can also be done with your TV's remote control.

• Utilizes WiSA wireless streaming technology to deliver high-fidelity sound to any WiSA HT certified wireless speakers
• Supports up to 8 channels of wireless audio and connects to TV via HDMI-eARC or HDMI-ARC for home cinema and optical for music streams
• Supports 2.0 to 7.1 stereo and Atmos 3.1.2 and 5.1.2 speaker configurations
• Transmits 24bits at 48kHz/96kHz at 5.2ms of latency, preventing audio delay and visible lip sync

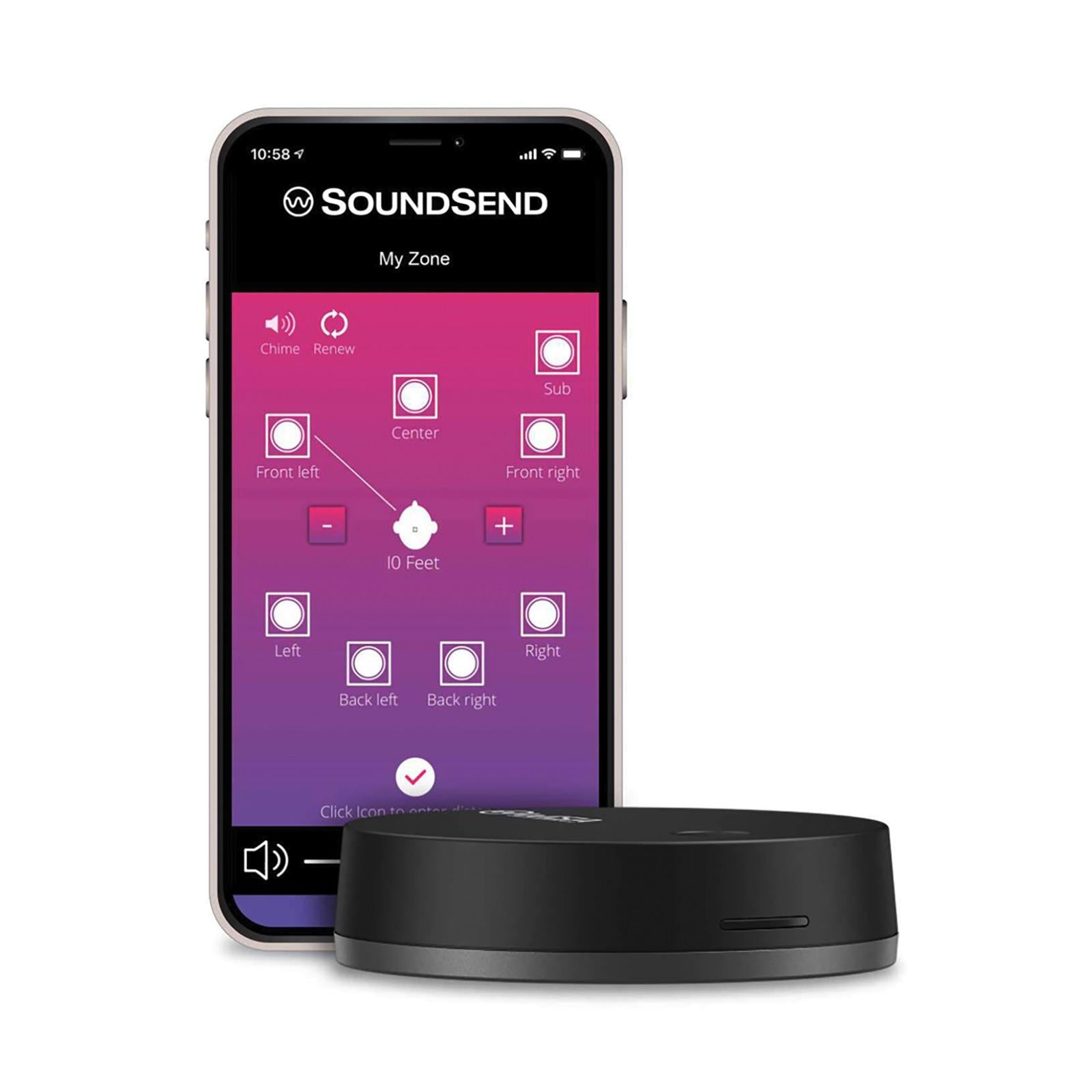

• Easy setup and configuration using the SoundSend app for iOS and Android devices

Installation Details

The Lithe Audio WiSA SoundSend Transmitter can be placed on a flat surface within your media cabinet near your smart TV, and plugs into a standard outlet. Ensure your WiSA certified speakers are powered on. Once powered, the blue LED on the transmitter will blink as it connects your WiSA speakers – once connected, the blue LED will become solid, indicating that your speakers are properly connected to the WiSA SoundSend Transmitter. You can use the WiSA SoundSend Mobile app for iOS and Android devices to confirm and adjust speaker locations, manage and adjust the speaker and audio settings, and adjust the volume.

Contents

• WiSA SoundSend Transmitter
• Instruction Manual

Innovative Audio Products

As an innovative audio company based in the United Kingdom, Lithe Audio specializes in wireless audio technologies for the residential and hospitality markets. They offer an extensive selection of active ceiling speakers, each designed with cutting-edge innovation. Their expertise lies in Wi-Fi and Bluetooth technologies, seamlessly integrating with leading smart home brands like Apple, Amazon, Google, and Control4. This enables customers around the world to fully embrace the evolving audio landscape of today and the future.

• Manufacturer Part #: 06530
• EAN: N/A
• Supported Audio Formats:
• Supports 2.0 / 2.1 / 3.0 / 3.1 / 5.1 / 7.1 / 5.1.2 speaker configurations
• Dolby Digital
• Dolby Digital+ / Dolby TrueHD
• Dolby Atmos

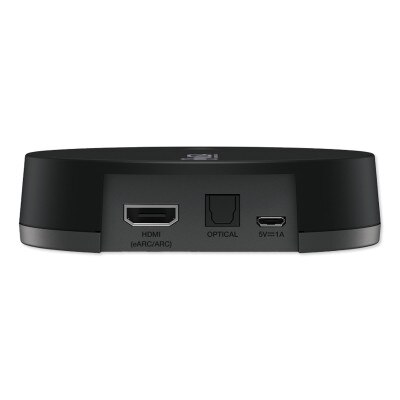

• Physical Inputs:
• HDMI ARC/eARC
• Optical
• Plug or USB Powered
• WiSA: Uncompressed 24-bit, 48K/96KHz
• Supported Channels: Up to 8
• Audio Bit Rate: 24 bits
• Wireless Audio Latency: 5.2ms
• Dimensions: 1.0625(H) x 4.3125(W) inches (27 x 110mm)
• Warranty: 2-Year Limited

»Lithe Audio All-in-One Wireless Audio Systems Brochure (.pdf)
