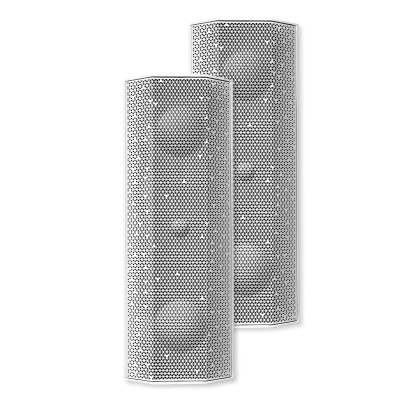

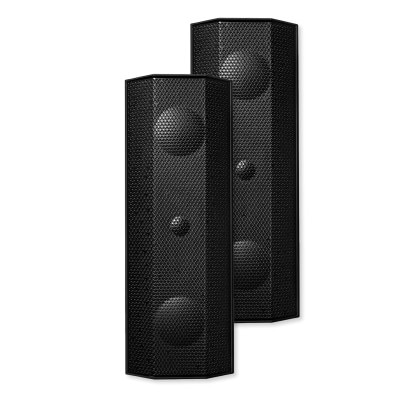

Lithe Audio IO1 Wi-Fi Speaker, WISA, (Pair)

All-In-One Wi-Fi Indoor/Outdoor Speaker Set With WiSA Technology

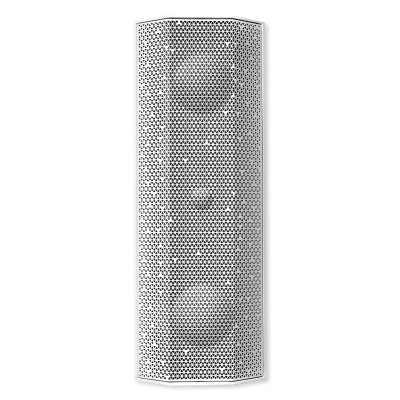

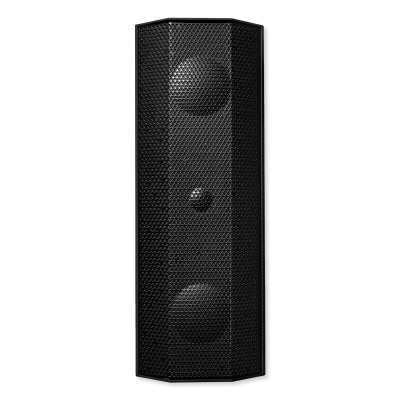

Add high-quality, wireless surround sound to either your indoor or outdoor living space with the Lithe Audio IO1 Wi-Fi Speakers, WiSA Pair. This set of Wi-Fi connected speakers includes a master speaker designed with a Wi-Fi receiver and a built-in amplifier, and a passive speaker. These speakers connect to either 2.4GHz & 5GHz Wi-Fi networks for versatile placement around your home. The WiSA (Wireless Speaker and Audio) certified master speaker pairs with the Lithe Audio WiSA SoundSend Transmitter or the Lithe Audio WiSA Cinema Hub (both sold separately) to deliver uncompressed high quality audio, including premium Dolby Audio and Dolby Atmos formats, from compatible audio sources. You can chain multiple IO1 Speakers, plus other Lithe Audio Wi-Fi speakers, into a single audio zone or multi-zone system across your entire home through Ethernet or Wi-Fi connections. Lithe Audio IO1 master speakers also enable you to wirelessly stream audio from your smartphone or preferred wireless audio source via Apple AirPlay 2 and Google Chromecast.

• Wi-Fi speaker set with master and passive speakers designed with built-in 100W RMS amplifier for easy installation
• Wi-Fi connectivity for wireless streaming music or audio from connected devices
• WiSA compatibility offers Dolby Audio and Dolby Atmos support, requires Lithe Cinema Hub or Soundsend Transmitter (each sold separately)
• WiSA compatible audio sources include TVs, A/V receivers and matrices, video game consoles, VR devices, and more
• IP66 rated for outdoor use with rust-proof grille, waterproof coated paper cone woofer and water proof silk dome tweeter
• RCA input allows hardwire connection to a PC, turntable, old iPod, and more
• Manage and set up speaker via the Lithe Audio mobile app (Android or iOS)
• Built-in Apple AirPlay 2 and Google Chromecast compatibility

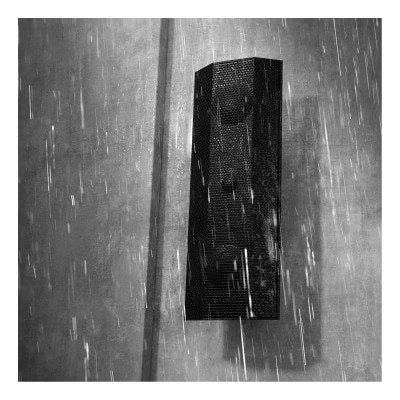

The Lithe Audio IO1 Wi-Fi Speaker Set is ideal for an all-in-one, multi-room solution to provide high quality audio to numerous rooms and zones of your property; whether you want the best home theater setup to watch your favorite films or listen to immersive, crisp sound throughout your outdoor living space. With an IP 66 rating, these speakers are built tough with weather-resistant and waterproof materials to withstand all climate conditions, including rain, sun, and snow. The anti-rust grille is made of durable Aluminium material with UV Powder Coating, which means the speakers can be left outdoors all year round. Additionally, the grilles can be painted, but ONLY for indoor use – you can use spray paint and apply 2x thin coats from 30cm distance. The built-in 100W RMS (2x 50W) amplifier features a waterproof coated paper cone woofer and waterproof coated silk dome tweeter to ensure robust, balanced sound for both indoor and outdoor environments.

Connect With WiSA Technology

WiSA Technology raises the bar for adding high-quality immersive surround sound to your property. With WiSA Technology, wireless cinema-quality sound can now be added to home audio systems using audio components that are certified by WiSA or use WiSA Home Theater (HT) technology to work seamlessly together. WiSA certified speakers can automatically recognize the size of your WiSA certified audio system and provides the highest quality audio possible, from single zone stereo speakers up to Dolby 7.1 and Dolby Atmos surround sound configurations. WiSA certified Speakers or receivers are required to connect to a WiSA certified transmitter, TV, or the Lithe Audio WiSA Cinema Hub to achieve Dolby Audio for your entire system.

Installation Details

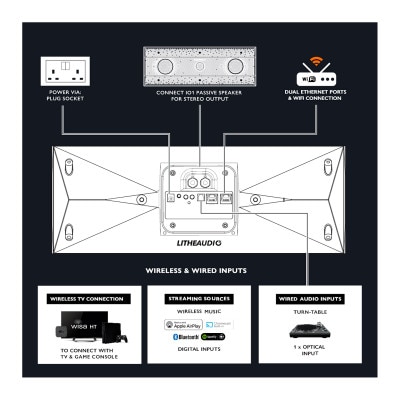

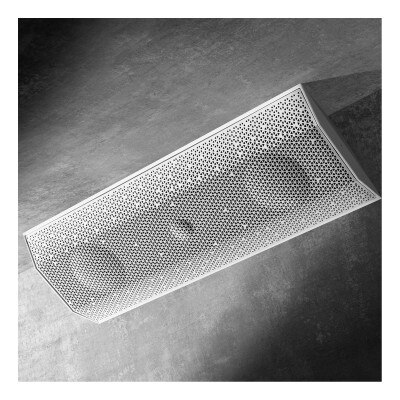

Lithe Audio IO1 Wi-Fi Speakers can be installed just about anywhere due to the speaker's versatile mounting design. Each IO1 speaker can be mounted onto walls, ground spikes, counter tops, corners, or as a pendant installation. Simply power your speakers using a standard or outdoor electrical outlet. Connect devices like your TV or turntable via our hardwired connections, and wirelessly stream music from your phone or tablet. IO1 speakers connect to your Internet network via Ethernet or either 2.4GHz & 5GHz Wi-Fi networks for versatile placement around your home without suffering from poor connections.

Lithe Audio App

The Lithe Audio app, for iOS and Android devices, lets you effortlessly control the music throughout your home from a single interface. It's simple and easy to set up because it will automatically detect all Wi-Fi speakers that are connected to your network. Easily drag and drop rooms into groups to play the same music in multiple spaces, or keep rooms separate to enjoy different music in each area simultaneously. You can fully personalize your zones, allowing speakers to be independently renamed, switched between Left and Right speaker output, and volume controlled. Lithe Audio Speakers are ideal for the entire family. With support for multiple users, everyone can be their own DJ using their Apple or Android smartphone.

Contents

• IO1 WiSA Surface Mount Speaker (Active)
• IO1 Surface Mount Speaker (Passive)
• 16AWG Speaker Cable 7m
• Power Supply
• (2) Mounting Brackets
• Instruction Manual

NOTE: Requires either a Lithe Audio WiSA Cinema Hub (06531) or a Lithe Audio WiSA SoundSend Transmitter (06530) to achieve Dolby formatting.

Innovative Audio Products

As an innovative audio company based in the United Kingdom, Lithe Audio specializes in wireless audio technologies for the residential and hospitality markets. They offer an extensive selection of active ceiling speakers, each designed with cutting-edge innovation. Their expertise lies in Wi-Fi and Bluetooth technologies, seamlessly integrating with leading smart home brands like Apple, Amazon, Google, and Control4. This enables customers around the world to fully embrace the evolving audio landscape of today and the future.

• Manufacturer Part #:
• 06810W: Black
• 06811W: White
• EAN:
• 06810W: 5060544557205
• 06811W: 5060544557243
• Connectivity:
• WiSA Certified – Pairs with Cinema Hub or Soundsend
• Wi-Fi Certified 2.4Ghz/5Ghz (802.11a/b/g/n/ac)
• 10/100 Ethernet Ports (In/Out)
• Apple AirPlay 2
• Google Chromecast
• Works with OK Google
• Spotify Connect
• Bluetooth 5.0
• Amazon Alexa (via Bluetooth)
• Line In (Optical), auto-detecting
• Passive Speaker Output
• RMS Power: 100W RMS (2x 50W)
• Frequency Response: (-3dB) 60Hz – 20kHz
• Frequency Range: (-10dB) 38Hz – 20kHz
• Impedance: 4 Ohms nominal (8 8)
• Sound Quality: THD+N < 0.01%
• Sensitivity (1W/1m): 82dB
• Coverage (1 – 4kHZ): Vertical 100 degree / Horizontal 170 degree
• Type: Class D (Digital)
• Audio Compression: 192kHz / 24 bits
• Woofer: 2 x 3" Waterproof Coated Paper Cone
• Tweeter: 0.75" Waterproof Coated Silk Dome
• IP Rating: IP66
• Housing Material: ABS+PC (UL f1/f2 Certification Standard UL746C-V0)
• Grille: Aluminium (UV Powder Coating)
• Power Input Supply: 100 – 240V, 50/60Hz / 2.5A
• Operating Temperature: -50 – 122°F (-10 to 50°C)
• Storage Temperature: -68 – 140°F (-20 to 60°C)
• Net Weight: 3.7kg (8.1lbs) (Single)
• Dimensions: 18.3(H) x 6.7(W) x 3.9(D) inches (465 x 170 x 100mm)
• Warranty: 2-Year Limited
