Russound 8" Premium Performance Loudspeakers (Pair)
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Install Premium Speakers with Adjustable Performance
Transform any room into a mini-concert or theater with the Russound 8" Premium Performance Loudspeakers (Pair)! This pair of speakers is built with premium materials and design choices to provide a higher quality and richer sound experience compared to most other speaker models. The speaker's pivoting titanium tweeter can have its angle adjusted up to 15 degrees to better aim sound at your preferred listing spot. Additionally, this model of speaker includes a sliding 3dB tweeter adjustment switch that allows you better perform based on a room's acoustic characteristics. This premium Russound model also features its proprietary, patented SwiftLock® technology for effortless installation at the push of a button.
- 8" in-ceiling pair of speakers composed of premium materials for enhanced performance
- Excellent for both music and TV/movie/home theater use

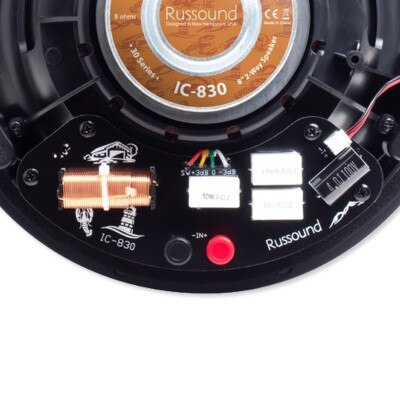

- 3dB tweeter adjustment switch allows you to accommodate a room's acoustic characteristics
- Tone down frequencies for rooms with hard reflective surfaces
- Support higher frequencies in rooms with large furniture, thick carpet, or heavy curtains
- Swiftlock® tool-less quick and easy installation
- Paintable edgeless grilles blend seamlessly into any décor
- Powerful neodymium grille magnets for easy and secure attachment
Speaker Placement in the Room
Russound's Architectural Series Speakers are designed to provide full sounding dispersion even in suboptimal positions away from the targeted primary axis, so that listeners throughout the room are treated to full, rich audio reproduction. For each room, think about what kind of listening will be most often occurring there. In a Great Room, living room, or bedroom, the ideal speaker placement will result in smooth, even coverage throughout the room. In a Home Theater set-up, you want the speakers to be equidistant from the prime listening position in order for the breadth and depth of the audio to feel like a movie theater's surround sound system.
For TV, movie, and music usage, ceiling speakers should be placed directly to the sides or behind the prime listening position and aimed toward the listener. If the prime purpose of the surround system is to listen to music, the in-ceiling speakers should be aimed at the prime listening position. Any in-ceiling speakers used for rear surround sound channels should be placed just behind the viewers.
Your speaker's low frequency bass reproduction is "helped" when ceiling speakers are placed close to a wall or ceiling. This is known as the boundary effect. Each nearby surface helps to amplify the perceived sound output. Better audio performance will result if both speakers are placed in similar positions and face a similar type of surface. For example, avoid placing one speaker in a corner and another on a long flat surface.
Below are some examples for in-ceiling placement options:
- Good placement for serious listening: Stereo pair In-ceiling. 6' to 8' (1.8m-2.4m) apart, on the long wall of a rectangular room, centered on the listening area.
- Good placement for background listening: Stereo pair behind, above or to the sides of the main listening area. 6' to 8' (1.8m-2.4m) apart, centered on the listening area.
Contents
- Speaker
- Installation Hardware
- Cut-Out Template
NOTE: Russound recommends cutting an 9.875" (25 cm) opening for ease of installation.
Russound Brings Engineered Innovation and Extraordinary Sound
The Russound name is synonymous with audio quality around the world. Every speaker model from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. From the kitchen to the living room to the bedroom, with Russound, there is a perfect speaker for every room.
Specifications

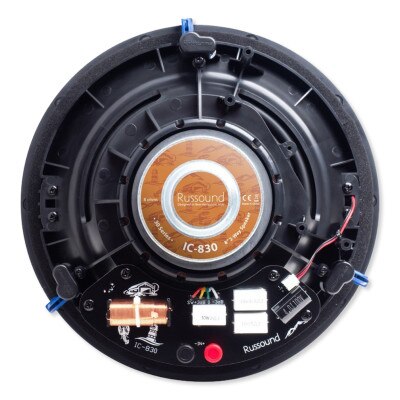

- Manufacturer Part #: IC-830
- UPC: 612934853593
- Speaker Type: Two-way in-ceiling
- Frequency Response: 38 Hz – 25 kHz
- Impedance: 8 ohms
- Magnet Structure: 11 oz (0.312 kg)
- Mounting Depth: 5.06" (12.84 cm)
- Recommended Power: 5 to 130 watts
- Sensitivity: 93 dB @ 1w/1m
- Tweeter: 1" / (25 mm) Pivoting Titanium
- Woofer: 8" / (20.33 cm) IM Polypropylene cone with vapor deposited Titanium
- Overall Dimensions: 11.04" (28.1 cm) diameter
- Cutout Dimensions: 9.875" (25 cm) diameter
- Shipping Dimensions (Pair): 14" H x 12.75" D x 13.75" W (35.56 cm H x 32.39 cm D x 34.93 cm W)
- Shipping Weight (Pair): 9.6 lbs (5.35 kg)
- Warranty: Limited Lifetime
