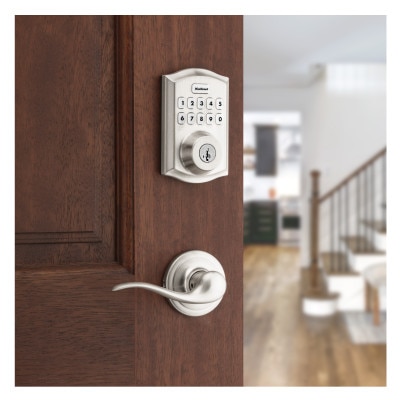

Kwikset Home Connect 620 Traditional Keypad Connected Z-Wave 700 Smart Lock

SKU: KW9893000x

Please Select Option To View Availability


WARNING: Cancer and Reproductive Harm –


Include Your Front Door Into Your Z-Wave 700 Network

Add your smart door lock to your Z-Wave network with the Kwikset Home Connect 620 Traditional Keypad Connected Z-Wave 700 Smart Lock. This Z-Wave 700 smart lock is a suitable replacement for your existing standard or smart locks, offering premium protection and accessibility to your home. The Home Connect Smart Lock includes three methods to lock/unlock your front door: traditional turnkey, numeric passcodes, and remote access through a connected Z-Wave hub's app. The Smart Lock features SmartKey Security™ which protects against advanced break-in techniques and ReKey design allows you to rekey your lock yourself in seconds should you ever need to change your locks.

  • Z-Wave 700 smart lock locks/unlocks via passcode, standard turnkey or compatible Z-Wave hub's mobile app
  • Keypad saves up to 250 4-to-8 digit user codes, remains lit for 30 seconds after inactivity, and includes One Touch Locking by pressing the Kwikset button
  • SmartKey Security™ protects against advanced break-in techniques
  • Re-key technology is compatible with KW1 or SC1 keyway options and allows for easy rekeying
  • Home Connect technology communicates wirelessly to security and home automation systems via Z-Wave
  • Z-Wave Smart Start technology pairs news devices quickly and S2 framework ensures enhanced security
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Multiple predefined Auto-locking settings available
  • Compatible with Amazon Alexa, Google Assistant, SmartThings, Ring, Wink, Vera, and Ezlo

SmartCode 620 Electronic Locks Features

The Kwikset Home Connect 620 Smart Lock saves up to 250 different 4-to-8-digit pass codes, allowing family, friends, and guests to enter their own codes to access your home at pre-selected times. Codes are easily created and deleted, so you can give temporary access to housesitters, maintenance workers, etc. One master user has complete control over the system, preventing all other users from adding or deleting codes.

The lock's keypad includes a one-touch locking feature by pressing the Kwikset button. The lock may also be remotely accessed via a Z-Wave hub's smartphone app to lock/unlock your door from anywhere.

Home Connect Technology

Kwikset's Home Connect Technology allows your front door lock to communicate with other smart devices in your home, such as your security system, smart lighting, or smart thermostat via wireless Z-Wave connectivity. As a Z-Wave 700-enabled device, the Smart Lock is compatible with all existing Z-Wave networks and benefits from SmartStart pairing, S2 encryption, and greater range of Z-Wave connectivity.

A smarter way to connect to your home:

  • Lock or unlock your door from your mobile device via the Z-Wave hub's app
  • Check lock status remotely
  • Receive notification and/or video of who enters your home
  • Remotely add or delete access codes

Integrate with security systems:

  • Lock doors when system is armed
  • Disarm Security System when door is unlocked
  • Communicate door lock status
  • Integrate with home control systems

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave 700 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series, Gen7 Z-Wave, or Z-Wave Plus v2. Z-Wave 700 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

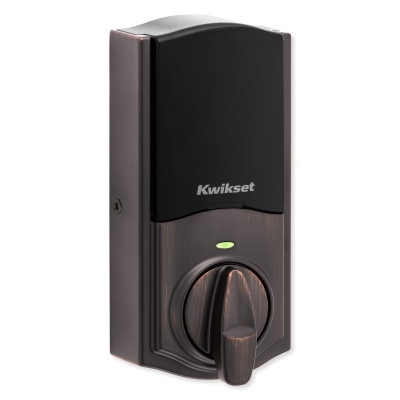

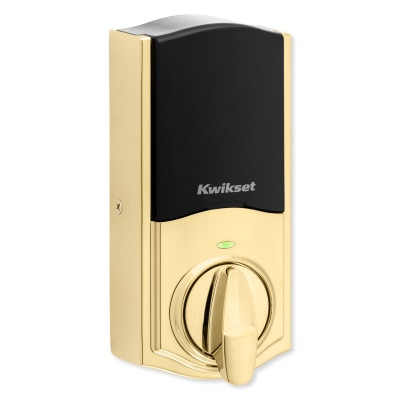

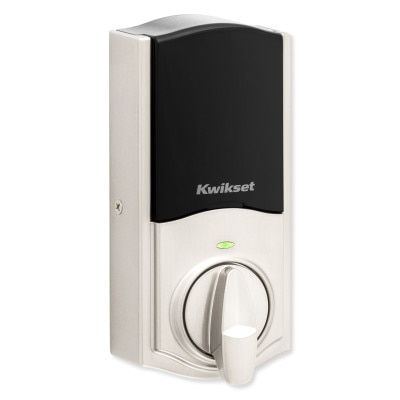

  • Interior Assembly
  • Interior Cover

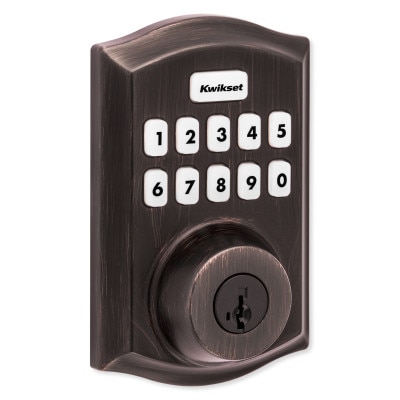

  • Exterior Assembly
  • Battery Pack
  • Mounting Plate
  • (4) AA Batteries
  • (2) Keys
  • SmartKey Rekey Tool
  • Installation Hardware


  • Kwikset Home Connect 620 Traditional Keypad Connected Smart Lock, Z-Wave 700 requires a Z-Wave network hub or controller (sold separately).
  • Do not use an electric drill or an electric screwdriver to tighten screws.

The Best Security Is Smart Security

An established leader in lock technology, Kwikset is widely recognized for providing families security and peace of mind with high quality door locks and door hardware. No more worrying about keys! The convenience of keyless technology is now available at your fingertips.


  • Manufacturer Part #:

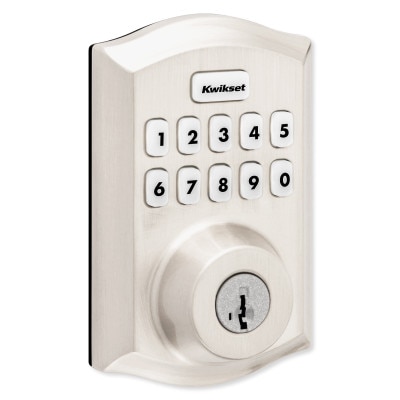

    • 98930-001: Satin Nickel

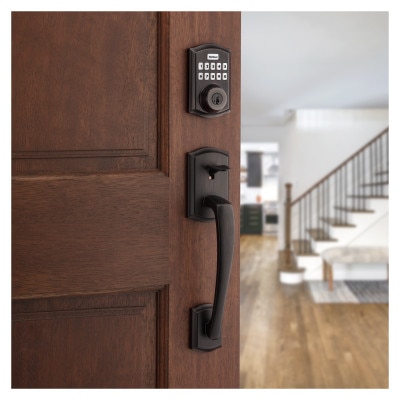

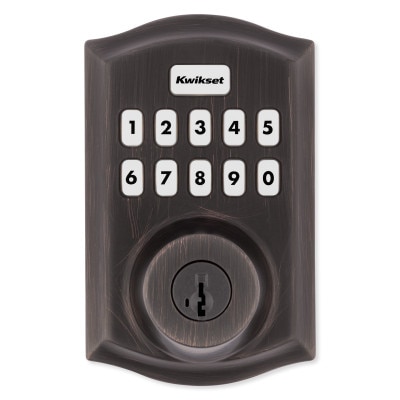

    • 98930-002: Venetian Bronze

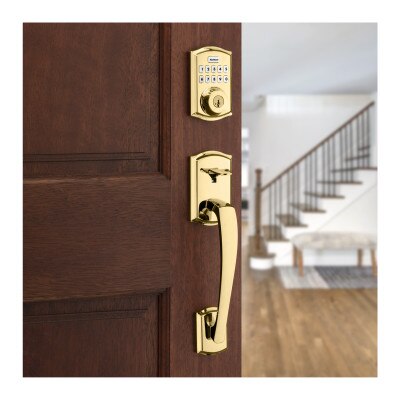

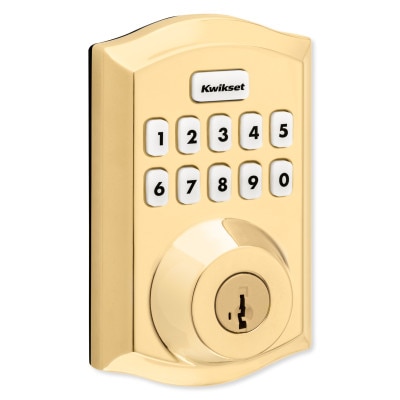

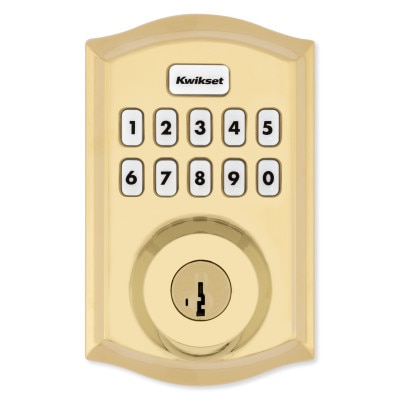

    • 98930-003: Brass
  • UPC:
    • 98930-001 (Satin Nickel): 883351793407
    • 98930-002 (Venetian Bronze): 883351793414
    • 98930-003 (Brass): 883351793421
  • Electrical: Input Power 6V (4 x AA alkaline batteries)
  • Mechanical:
    • Door Prep 1 1/2" & 2 1/8" diameter bore hole & 1" deep latch hole
    • Backset Adjustable 2 3/8" or 2 3/4"
    • Door Thickness 1 3/8" – 2 " automatic adjustment
    • Faceplates 1" x 2 1/4" round corner standard
    • Strikes Round corner strike 1 1/8" x 2 3/4"
    • Latch Round corner adjustable 2 3/8" x 2 3/4"
    • Bolt 1" throw, steel deadbolt
    • Door Handing Reversible
    • Cylinder SmartKey® Keyway
  • Environmental:
    • Temperature Range:
      • Exterior: -40°F to 150°F
      • Interior: 32°F to 140°F
    • Humidity:
      • Exterior: 100% condensing
      • Interior: 30% – 95% non-condensing
  • Dimensions:
    • Exterior: 2.81 W x 4.56 H x 1.25 D inches (71.43 W x 115.88 H x 31.75 D mm)
    • Interior: 2.71 W x 5.78 H x 1.93 D inches (69.1 W x 146.6 H x 49.5 D mm)
  • ANSI/BHMA grade 2 certified
  • Warranty:
    • Lifetime mechanical and finish warranty
    • 1-year electronic warranty
