KBSound In-Wall Bluetooth Audio Receiver with Power Supply, Black, EU

SKU: ES5285B

Usually ships in 3-5 days.

$185.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Listen To Quality Sound From A Paired Bluetooth Device

Listen to audio content via external speakers from your Bluetooth-enabled device with the KBSound In-Wall Bluetooth Audio Receiver with Power Supply, Black (E.U.). This audio receiver can fit into European sized light switches (45x45mm), allowing it to perfectly blend with other light switches in your room. The receiver features right and left speaker outputs and has a signal reach of 33 feet (10m) so you can easily pair with your smartphone or other Bluetooth-friendly device. You'll be able to listen to all of your favorite online audio content, including popular podcasts and streaming stations such as Napster, Stitcher, YouTube, Pandora, Deezer, and more.

  • Pairs with Bluetooth devices (A2DP/AVRCP) and connects to external speakers for streaming music, online podcasts, or other audio content
  • Fits into European sized light switches (45x45mm)
  • Left and right speaker outputs allows for connecting to external speakers
  • External audio input (3.5mm Jack) for connecting to headphones/other devices
  • Line output for extending signal to a different area/room
  • Bluetooth ID can be assigned to each module so that they can co-exist in the same installation

The KBSound In-Wall Bluetooth Audio Receiver features a power connect button, an LED status light, an external audio input (3.5mm jack), and a Bluetooth identifier number to allow different modules to coexist in the same installation. The receiver provides a stereo line output so you can extend the audio signal to a secondary area/room or increase the audio output level with an auxiliary amplifier (part# 13204, sold separately).

You can connect up to two 8 ohm speakers or up to four 16 ohm speakers (speakers not included) with a maximum stereo speaker output of 5W. This module also has a Max Volume Limit Switch in the back with 2 positions that will allow the installer to select what the maximum volume will be in normal operation.

Each audio receiver module has a KINGBT-XXXX identifying number associated with it. The XXXX will be the serial number that lets the user identify each individual module that co-exists within the same installation. An adhesive label with the serial number is included with each module so you can fix it to the face cover. This will allow users to choose which module to stream audio through from their smartphone or other Bluetooth friendly device.

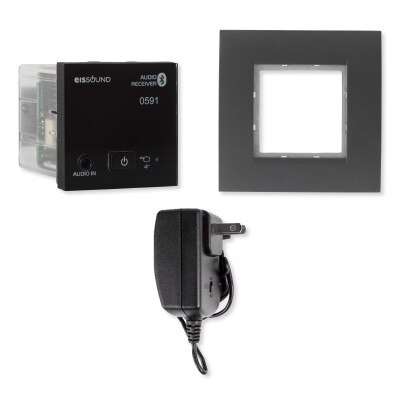

Contents

  • Bluetooth Audio Receiver (E.U.) Black
  • Power Supply
  • Manual

KBSound: Providing Quality Audio Solutions

Since 1993, KBSound has been producing innovative products in the Multiroom Audio Sector. As the first to create an audio control unit specifically designed to fit and mimic the look of most popular light switches, KBSound's in-wall audio control units provide an easy way to listen to digital audio content in quality sound. From In-Wall Bluetooth Audio Receivers to Soundaround Wi-Fi Speakers, KBSound's product range is always evolving so that consumers have the very best audio solutions available.

Specifications

  • Manufacturer Part #: 5285B
  • UPC: 8436031618822
  • Outputs:
    • Stereo Line
    • Right Speaker
    • Left Speaker
    • Amplifier Trigger
  • Speaker Impedance: 4/8/16 ohms
  • Speaker Output: 5W stereo max.
  • Other Connection: Volume limitation and mono/stereo jumpers
  • LED Display:
    • Off: Disconnected and Audio Off
    • Bluetooth: Blue Flashing – searching BT Device
    • Bluetooth: Blue On – BT connected
    • Audio-In: Red On – Audio-In Activated
  • Voltage Terminals VDC, GND:
    • Normal: 15Vdc
    • Max: 16Vdc
  • Consumption Demand Bluetooth:
    • Minimum: 22mA
    • Normal: 111Vdc
  • Consumption Demand Jack 3.5mm:
    • Minimum: 22mA
    • Normal: 99Vdc
  • Input Signal Jack 3.5mm:
    • Normal: 100mVrms
    • Maximum: 550mVrms
  • Input Signal Jack 3.5mm Input Impedance:
    • Minimum: 7Kohms
    • Maximum: 60Kohms
  • Output Signal Output 4 ohm:
    • Maximum: 5Wrms
  • Output Signal Output 8 ohm:
    • Maximum: 2.5Wrms
  • Output Signal Output 16 ohm:
    • Maximum: 1.5Wrms
  • Line Output Signal Terminals 65, 66, 4:
    • Maximum: 1.82Vrms
  • Line Output Signal Terminals 65, 66, 4 Output Impedance:
    • Maximum: 50ohm
  • Amplifier Trigger Signal Terminals 62, 4:
    • Maximum: 14Vdc
  • Amplifier Trigger Signal Terminals 62, 4 Output Impedance:
    • Maximum: 1Kohms
  • Left/Right Channel Separation:
    • Normal: 58dB
  • Passband:
    • Minimum: 45Hz
    • Maximum: 20000Hz
  • Distortion:
    • Normal: 0.1%
  • SNR:
    • Normal: 84dB
  • Bluetooth Identification Number:
    • Minimum: 0000
    • Maximum: 9999
  • Bluetooth:
    • Class2 BT2.1 + EDR
    • A2DP 1.2
    • AVRCP 1.4
  • Wireless Transceiver: 2.4GHz
  • RF Power Transmitter: 7 dBm
  • Dimensions:
    • Exterior: 1.8 x 1.8 x 1.7 inches (45 x 45 x 42mm)
    • Cavity: 1.8 x 1.8 x 1.4 inches (45 x 45 x 36mm)
    • Face Cover: 1.8 x 1.8 inches (45 x 45mm)
  • Range: 33 feet (10m)
  • Warranty: 2-Year
