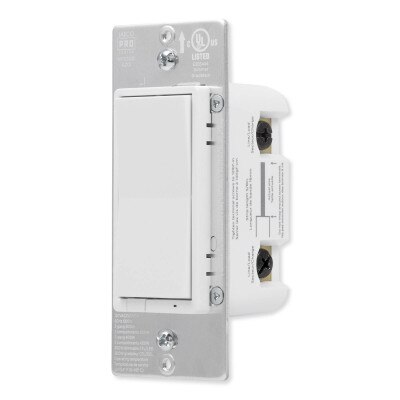

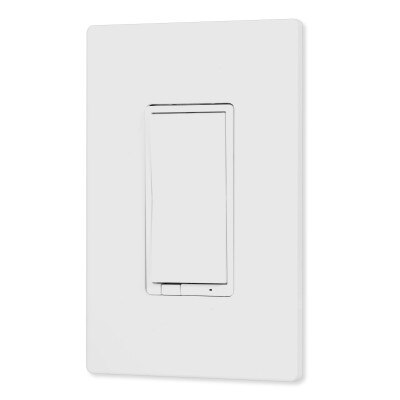

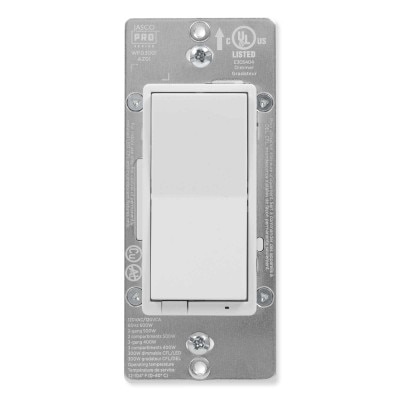

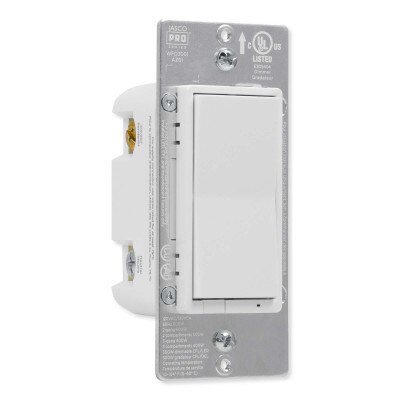

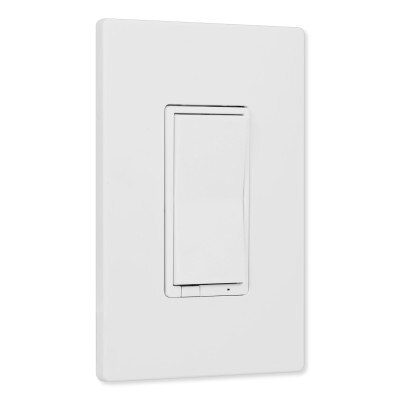

JascoPro Wi-Fi In-Wall Smart Dimmer

Add Dim/Brighten and Remote Wi-Fi Control to Your Lighting

Add smart Wi-Fi control over your lighting without requiring a smart home hub with the Jasco Pro Series™ In-Wall Smart Dimmer. This smart dimmer connects to a 2.4GHz Wi-Fi network to control and schedule permanently installed lights with On/Off and Dim/Brighten commands in single- or multi-way installations. Remote control of the Smart Toggle Switch is conducted via the JascoPro app. This toggle switch supports dual- and tri-band routers, making it ideal for the latest home Wi-Fi networks. Additionally, the dimmer includes built-in direct compatibility with Amazon Alexa and Google Assistant, which allows it to be controlled with voice commands without needing a smart home hub or dedicated smart assistant device.

• Wi-Fi connected dimmer switch enables local and remote On/Off and Dim/Brighten control of most dimmable bulb types
• Double or triple tap operation activates automated scenes
• Compatible with single-, 3-way, or 4-way installations with Jasco 46560 add-on switches
• 100 ft Wi-Fi operating range
• Compressed design helps the switch fit into crowded electrical boxes
• Blue LED indicated pairing mode and device status
• Remote Wi-Fi control via the JascoPro app for iOS and Android
• Voice control compatible with Amazon Alexa and Google Assistant, no hub required
• White and light almond rocker-style paddles included

Jasco Pro Series Wi-Fi In-Wall Smart Dimmer is also designed with new QuickFit and SimpleWire features:

• QuickFit: Provides a housing that's smaller by 20% with no break-off tabs to remove, which is ideal for older-style switch boxes, multi-gang configurations, or any other application with limited space.

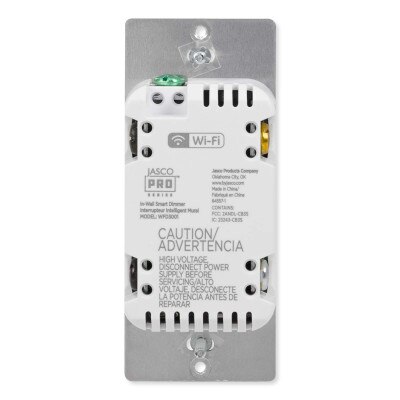

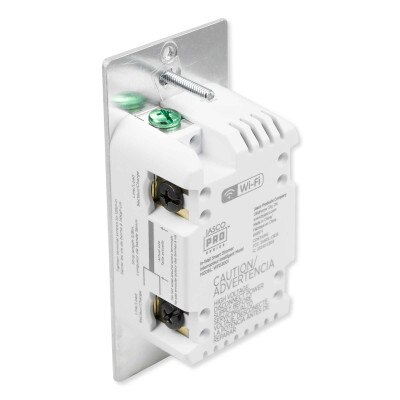

• SimpleWire: Auto-detects line/load terminals, making installation easier and quicker by detecting line and load wires and configuring the dimmer accordingly. It also features an offset dual ground terminal to avoid switch box mounting screws.

Control Wi-Fi Lighting with JascoPro

Control plug-in and hardwired equipment from anywhere using the free JascoPro™ mobile app for Android and iOS. The JascoPro™ app allows for on-demand On/Off operation, timer-based shutdown, daily or weekly scheduling, and custom automations via your Wi-Fi network. The JascoPro app acts independently of Wi-Fi automation hubs compatible with JascoPro devices.

Installation Details

The Wi-Fi In-Wall Smart DImmer works with incandescent lights up to 600W, and CFL/LEDs up to 360W. The switch supports single- or multi-pole applications, using up to two Jasco 46560 add-on switches in 3 or 4-way wiring configurations. Multi-pole installation also requires a neutral wire. This model has an effective Wi-Fi range of 100 ft line of sight. The switch requires standard screw terminal installation with wiring connections for Line (Hot), Load, Neutral, and Ground.

Contents

• Smart Dimmer
• White Paddle
• Light Almond Paddle

Notes

• For indoor use only.
• A neutral wire is required for installation.

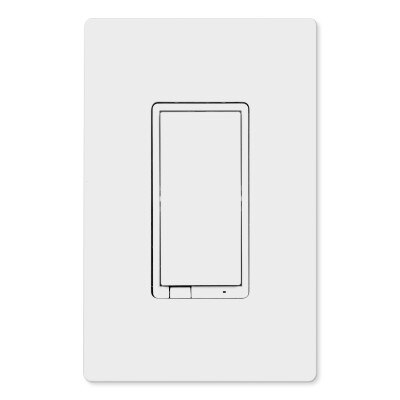

• Uses a standard single-gang wallplate.

Jasco: Leader And Innovator In Electronics

Established in 1975, Jasco Products is a leader in the design and development of home automation products and wireless accessories. Jasco develops consumer electronic accessories, computer accessories, home electrical products, and personal security and surveillance products. The company is also an active member of the Consumer Electronics Association (CEA).

• Manufacturer Part #: 64557
• UPC: 030878645577
• Power: 120 VAC, 60 Hz
• Signal Frequency: 2.4 GHz
• Load Ratings: 600W Incandescent; 360 CFL/LED
• Range: Up to 100 feet line of sight between the dimmer and the nearest router or system hub.
• Environmental Conditions: For indoor use only.
• Operating Temperature Range: 32 to 104°F (0 to 40°C)
• Approvals: FCC, IC
• Warranty: 5-Year Limited

»Jasco 64557 Pro Series Wi-Fi In-Wall Smart Dimmer Spec Sheet (.pdf)
