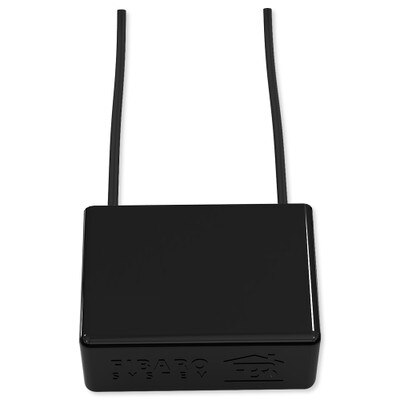

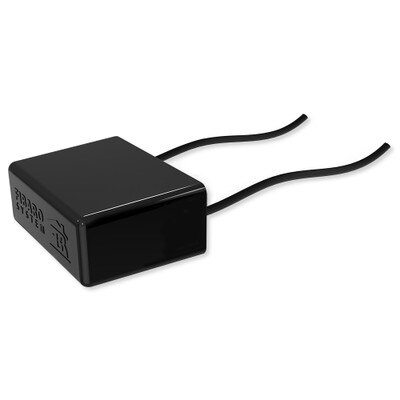

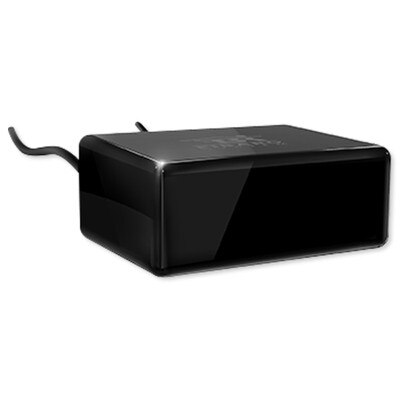

FIBARO Bypass 2

SKU: FBFGB002

Order now and we'll ship same business day (if ordered before 3 pm PST).

$14.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Dim LEDs & CFLs with the FIBARO Dimmer 2

Designed to allow dimming of LEDs and CFLs, the FIBARO Bypass 2 enables the Fibaro Z-Wave Dimmer 2 (sold separately) to dim light sources with low power consumption (less than 1.4 Watts) by reducing the minimum load required by the Dimmer 2. Using the Bypass, you can prevent LEDs from flickering and prevent CFLs from continuing to flow after they've been turned off. The Bypass easily connect to the Dimmer using a 2-wire connection.

NOTE: Requires the FIBARO Dimmer 2 (FGD-212, sold separately). Only operates dimmable light sources.

Innovative Z-Wave Solutions by FIBARO

With multiple award-winning products, FIBARO has become one of the leading Z-Wave manufacturers in the home automation and security industries. The company has been lauded time and time again for bringing uniquely innovative Z-Wave solutions to people across the globe. Introduce your home to your imagination through FIBARO.

Specifications

  • Manufacturer Part #: FGB-002
  • Power Source: 100-240V~ 50/60Hz
  • Operating Temperature: 0° to 95°F (-17° to 35°C)
  • Power Consumption:< 1.4W
  • Installation: To be mounted in standard wall switch boxes Ø 50 mm
  • Outside Dimensions: 1.22(L) x 0.85(W) x 0.51(H) inches
  • Approvals: RoHS 2011/65/EU, LVD 2006/95/EC, EMC 2004/108/EC
  • Warranty: 12 months for business / 24 months for individual customer
