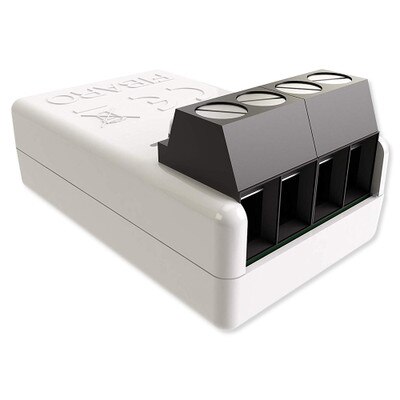

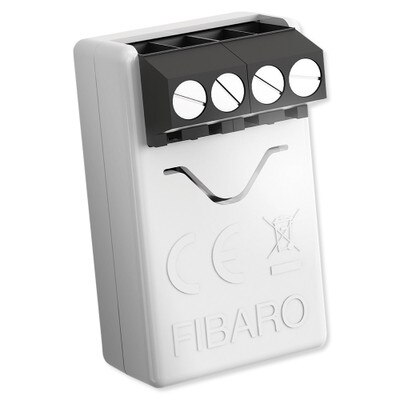

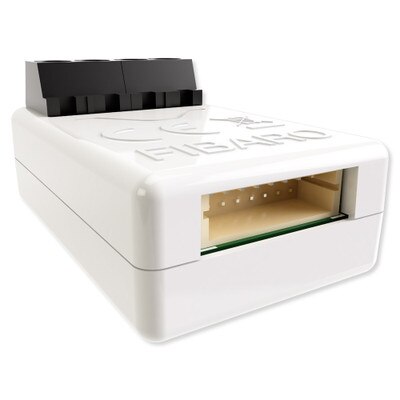

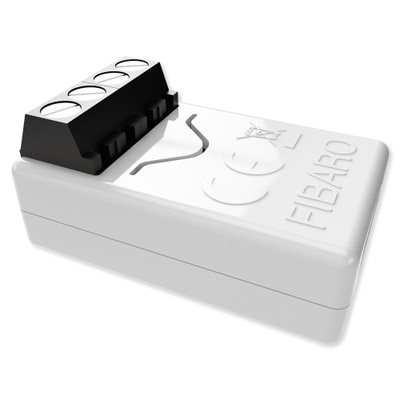

FIBARO Smart Implant

Order now and we'll ship same business day (if ordered before 3 pm PST).

SKU: FBFGBS222US
$44.99

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Retrofit Old Sensors into your Z-Wave Network

Integrate existing wired sensors in your home or business to your Z-Wave network with the FIBARO Smart Implant. This wired Z-Wave Plus module connects existing sensors using wired connections in order to add them to your Z-Wave network.

  • Connects binary sensors, analog sensors, or humidity and temperature sensors to Z-Wave network
  • Add Z-Wave control to various contact, temperature, or motion sensors, as well as garage door openers or relay switches
  • Built-in temperature sensor
  • Acts as a Z-Wave signal repeater and is Z-Wave Plus compatible
  • Flashing LEDs indicate status and program modes

The FIBARO Smart Implant allows for any of the following sensor connections:

  • (6) DS18B20 sensors
  • (1) DHT sensor
  • (2) 2-wire analog sensor
  • (2) 3-wire analog sensor
  • (2) binary sensors

Installation Details

Turn off your alarm system and sensors before connecting to the Smart Implant. Follow the included instructions to connect the Implant to a selected sensor. Once the Implant is connected, power your device and add them to the Z-Wave network.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

  • Smart Z-Wave Plus Implant
  • Operating Manual

NOTE: For indoor use only. Do not place the Implant antenna near metallic components in order to avoid signal interference.

Innovative Z-Wave Solutions By FIBARO

With multiple award-winning products, FIBARO has become one of the leading Z-Wave manufacturers in the home automation and security industries. The company has been lauded time and time again for bringing uniquely innovative Z-Wave solutions to people across the globe. Introduce your home to your imagination through FIBARO.

  • Manufacturer Part #: FGBS-222 US
  • Power supply: 9-30V DC ±10%
  • Inputs:
    • 2 0-10V or digital inputs
    • 1 serial 1-wire input
  • Outputs: 2 potential-free outputs
  • Supported digital sensors: 6 DS18B20 or 1 DHT22
  • Maximum current on outputs: 150mA
  • Maximum voltage on outputs: 30V DC / 20V AC ±5%
  • Built-in temperature sensor measurement range: -55 C to 126 degrees C (-67 F to 259 degrees F)
  • Operating temperature: 0 to 40 degrees C (32 to 104 degrees F)

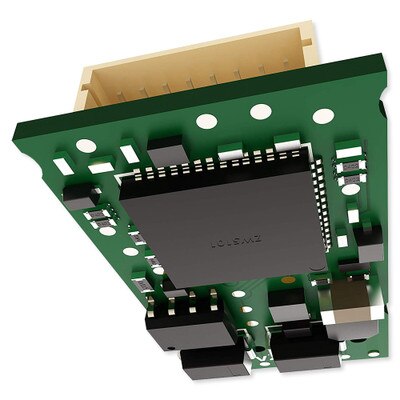

  • Radio protocol: Z-Wave (500 series chip)
  • Radio frequency: 8
    • 68.4 or 869.8 MHz EU;
    • 908.4, 908.42 or 916.0 MHz US;
    • 921.4 or 919.8 MHz ANZ;
    • 869.0 MHz RU
  • Radio transmit power: max. 7 dBm (EIRP)
  • Range: up to 40m (131 ft) indoors
  • Dimensions: 29 L x 18 W x 13 H mm (1.14 x 0.71 x 0.51 inches)
  • RoHS 2011/65/EU and RED 2014/53/EU compliant
  • Warranty: 1 Year
