ELK Recordable Voice Annunciator Module

SKU: ELK124

Order now and we'll ship same business day (if ordered before 3 pm PST).

$202.11

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Enhanced 8 Channel Recordable Voice Module

The Elk Recordable Voice Annunciator Module is an 8 channel module. It's ideal for applications such as telephone on-hold announcements, security and access control warnings, museum narrations, and more. Each channel can hold up to 1 minute of recorded voice and/or music with a combined total record time of 8 minutes. Recording is quick and easy using the built-in microphone and push to record button.

A line-level output jack allows connection to external amplifiers, audio equipment, and paging systems. It features convenient channel activation switches and the ability to play each channel once or to repeat endlessly. The optional ELK-129 Computer Interface may be used to download .WAV sounds from a PC to this Annunciator Module.

  • Eight Channels of Recordable Voice/Music.
  • Maximum record time is 8 minutes which may be divided between the number of channels required.
  • Recordings are stored in non-volatile memory.
  • Each channel selectable for "+" or "-" triggering.
  • Each channel will accept a momentary trigger.
  • Continuous playback or "One Shot" settings.
  • Built-in condenser microphone for recording.
  • Adjustable speaker volume and current draw.
  • Powerful 24 watt audio amplifier for Speakers.
  • Line Level Output for Amplifiers and Paging Systems.
  • PC sound card interface connector.

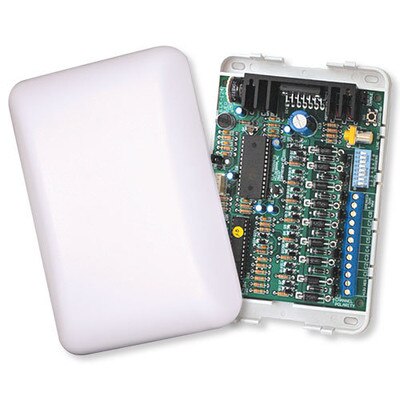

  • Mounted inside ELK-PB1 plastic enclosure.

Premium Products For Security & Automation

Elk Products designs and manufactures quality electronic equipment for the professional security alarm and home automation installer. Our products include siren drivers, speakers, relays, timers, programmable controls, surge suppressors, telephone equipment, amplifiers, recordable units, batteries and more.

Specifications

  • Manufacturer Part #: ELK-124
  • UPC: 762158001246
  • Operating Voltage: 11 to 14 Volts DC
  • Current Draw: .2 to 2 Amps, (depends on volume setting and speaker loading)
  • Sound Level: 122 db @ 1 meter, 14 vdc
  • Max. Speaker Loading: 4 Ohms
  • Max. Message Length: 1 minute per channel or 8 minutes for a combined single channel
  • Enclosure Size: 6.5" W x 4.375"H x 2"D, White Plastic

Downloads

»Elk ELK-124 Recordable Voice Annunciator Module Installation Manual (.pdf)
