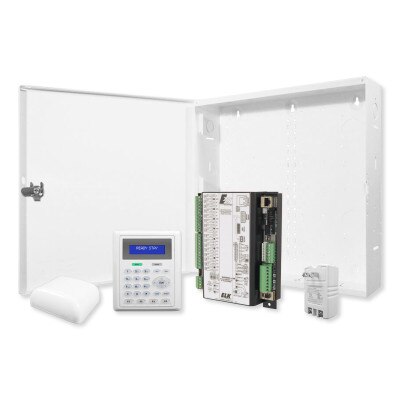

ELK E27 Alarm Engine System Kit with Metal Enclosure

Start Your Security System with the Essentials

Create a powerful customizable security and automation system with the ELK E27 Alarm Engine System Kit with Metal Enclosure! This starter security kit includes the E27CB Control Board, AEKP Keypad, P1426 Power Supply, 73 Speaker, and SWB14 Metal Enclosure. The E27 control board is the brains and heart of the ELK 27 security and automation control system, providing the foundation for a hybrid hardwired and wireless network of sensors and devices to monitor, protect, and automate your home or business. The E27 supports up to 128 hardwired, wireless, or hybrid zones, all of which can be partitioned into 8 security areas. The E27 features 16 on-board wired zones and if connected to additional E27 Alarm Engines, the number of wired zones can be expanded up to 128. Onboard alarm inputs include one form C relay and one 10V (12VDC, 50mA). The system's open connectivity platform allows integration with Elk's 50+ partners, offering a seamlessly interconnected system with control over Security, Energy Management, Lighting, and more into a single, robust system.

ELK Products requires any professional installers of Elk E27 Alarm Engine Systems to create an ElkConnect account.

• ELK27 Cloud-centric hybrid control system supports up to 128 wired, wireless, or hybrid inputs
• Compatible with 319.5 MHz and Z-Wave Plus wireless devices (via respective add-on modules)
• Control Up to 80 Z-Wave Devices: Up to 64 lights, 8 locks, 4 thermostats, and 4 garage doors
• Supports up to three 2-Wire Smoke Zones along with 4-wire zones
• Built-In Astronomical Clock with Sunset/Sunrise calculation and activation
• Create up to 199 user profiles organized in up to 10 user groups
• On-board Ethernet port with built-in IP reporting to a Central Monitoring Station
• SD Card slot for additional event log memory storage
• Powerful Rules Engine with AND, OR, and ELSE logic for varied security or automation tasks
• ElkConnect cloud portal and mobile app streamlines system configuration, management, and control

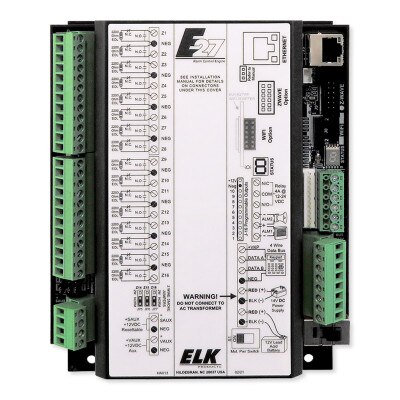

The ELK27 Alarm Engine is a scalable home security and automation solution for any sized installation. Out of the box, the ELK27 Alarm Engine Main Board supports 16 on-board wired zones, two 12VDC Power Outputs, 10 programmable outputs, one programmable Form "C" Relay output, two supervised 4 to 8 ohm alarm outputs, one RS485 Data Bus, and two power supply options. To add wireless inputs from 319.5MHz or Z-Wave devices, additional zone inputs, outputs, or relays, their corresponding add-on modules must be purchased separately.

The ELK-AERF3 and the ELK-AERF9 allows the E27 to communicate with ELK 319.5 and two-way wireless sensors respectively, up to 128 sensors and 16 keychain remotes in total. The ELK-AEWF Wi-Fi Adapter increases the operational reach of a single system in installations where Ethernet connections are not possible. The ELK-AEZW Z-Wave module adds up to 80 Z-Wave Plus devices to the Elk network. The Z-Wave Module does not add new zones to the ELK 27 network; any connected Z-Wave Plus device uses an available wireless zone. The ELK-AEXDD Alarm Engine Digital Dialer connects the E27 to a Central Monitoring Station using a standard landline telephone or cellular device.

The ELK 27 Alarm Engine is a user-friendly system that can control virtually any security or automation device in homes or businesses. It sports a powerful new engine with AND, OR & ELSE logic that enables complex security or automation scenes and immediate responses to triggered devices or preprogrammed routines. Configuring automated routines is made easy with easy to understand text based references. The addition of Z-Wave Plus compatibility exponentially increases the amount of automated routines that can be run and the kinds of devices that can be monitored or controlled.

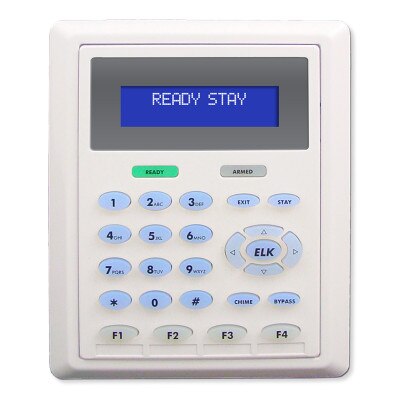

The ELK-AEKP Low Profile LCD Keypad features a 32 character blue/white backlit display, blue lighted keys, 4 programmable function keys, and the ELK menu navigation keys. It may also be flush mounted using a back box kit (ELK-M1BBK2, sold separately). The AEKP is compatible with external 26 bit Wiegand compatible proximity readers, allowing RFID cards or keyfobs to be used for various security functions (arming, disarming,door strike control, etc.)

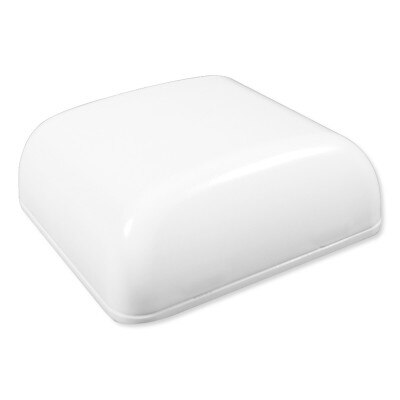

The ELK-73 is a 20 Watt, 8 Ohm Speaker mounted in an attractive surface mount plastic enclosure. This versatile Echo Series speaker is designed to be heard but not seen! Sound "echoes" off the mounting surface from the back plate edge. This unique contemporary speaker has a smooth, paintable, "no grill" surface that easily blends with any décor. This speaker mounts to any flat surface or single gang electrical "J" box.

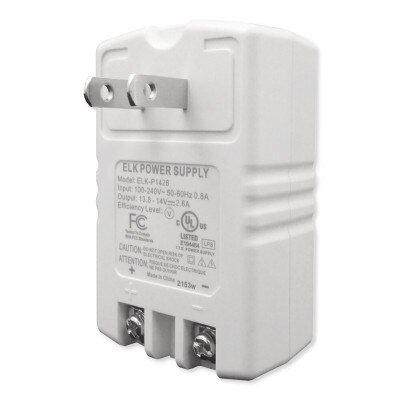

The ELKP1426 Plug-in Power Supply (14VDC, 2.6A) has positive and negative screw terminal connections to deliver 2.6A/14VDC power to surveillance cameras, access control, alarm devices, and other security devices. The Power Supply has built-in overload reset to protect devices and provide reliable power. It comes with a mounting bracket for secure installation near your powered device.

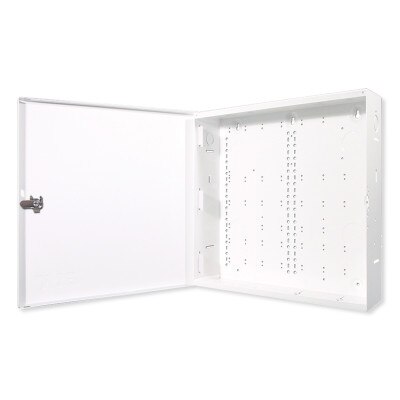

The ELK-SWB14 Structured Wiring Box, 14" is a universal structured wiring box featuring a pattern of hole-slot-hole that allows it to accommodate accessories, circuit boards, shelves, brackets, and wiring modules from many different manufacturers. It is designed to be surface mounted but can also be flush mounted with the addition of an optional ELK-SWFD14 (not included) Flush Mount Door.

Elk Connect App and Web Portal

ElkConnect® brings the power of the ELK E27 platform to life. This advanced mobile app and cloud portal streamlines system configuration, management, and control with powerful tools and a consistent user experience. A robust automation environment fuels the Alarm Engine with simplified customization and unrestricted creation of rules.

Both the ElkConnect app and portal provide a credential based experience and offers different levels of functionality for installers and end-users. Installers get configuration and management tools to manage multiple E27 systems from their phone or computer. Users get interactive services and an intuitive interface for full control of the system.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the "Next Gen" Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• E27 Alarm Engine Control Board with terminal blocks
• ELK-AEKP Low Profile LCD Keypad
• ELK-73 Compact Echo Speaker
• ELK-SWB14 Structured Wiring Metal Box, 14"
• ELK-P1426 Plug-in Power Supply
• Hook up Diagram mounted on M1 Plastic Housing
• (2) Mini Jumpers
• (3) 820 Ohm Resistors
• (18) 2200 Ohm Resistors
• (4) 8/32 Shoulder Screws
• Relay Adapter 12 Conductor Cable Assembly
• Mounting Bracket with Hardware
• Multicolor Labels
• (4) #6 Flat Head Phillips Sheet Metal Screw
• (4) #4-20 Pan Head Phillips Plastite Screw
• 2200 Ohm Resistor
• (5) Gel Filled B-Connector
• Mini Jumper
• 6-wire Flying Lead Cable Assembly
• Instructions

NOTE: Add-on modules, including wireless adapters, relays, expansion modules, and miscellaneous accessories all sold separately.

Premium Products For Security And Automation

Elk Products designs and manufactures quality electronic equipment for the professional security alarm and home automation installer. Our products include siren drivers, speakers, relays, timers, programmable controls, surge suppressors, telephone equipment, amplifiers, recordable units, batteries and more.

• Manufacturer Part #: E27SYS1
• UPC: 762158570124

ELK E27 Alarm Engine Main Board (ELK-E27CB)

• Manufacturer Part #: E27CB
• UPC: 762158570001
• Inputs: Up to 128 Hardwired, Wireless or Hybrid
• 16 Wired On-Board
• Supports up to 3 two-wire smoke detector zones and any 4-wire smoke detector zones
• Keypads: Up to 8
• On Board Outputs:
• 2 Alarm speaker outputs
• 1 Form "C" Relay
• 10 Voltage Outputs (12VDC, 50 mA) Expandable to 32
• Wireless Compatibility: Supports Two-Way, 319.5MHz, or Z-Wave Wireless Sensors
• Areas: Up to 8
• Users: Up to 199, User Groups: Up to 10
• Z-Wave Devices with optional Z-Wave Adapter: 64 Lights, 8 Locks, 4 Thermostats, and 4 Garage Doors
• History Log: Up to 500 Events with Date & Time Stamp, Includes Users/Zone Info
• Power:
• 2.5 Amp Power Supply with Master Power Switch
• Low Battery Cutoff
• Warranty: 2-Year Limited

ELK Alarm Engine Low Profile Keypad (ELK-AEKP)

• Manufacturer Part #: ELK-AEKP
• UPC: 762158570018
• Connection: 6 Pin Plug-in "Flying Lead" Connector (Included)
• Color: White
• Operating Voltage: 13.8 VDC
• Current Draw:
• ~30 mA Idle (low back light level, sounder silent)
• ~85mA Fully Active (max. back light & sounder active)
• Size: 4.658" W x 5.5" H x .95" D (.375" D with recess mount)

Elk Compact Echo Speaker (ELK-73)

• Manufacturer Part #: ELK-73
• UPC: 762158000737
• Impedance: 8 Ohms
• Rating: 20 Watts Nominal
• Frequency Response: 500 to 7000 Hz
• Size: 4.56" H x 4.3" W x 1.875" D

Elk Plug-In Power Supply, 14VDC, 2.6A (ELK-P1426)

• Manufacturer Part #: ELK-P1426
• UPC: 762158010040
• Input Voltage Range: 100 – 240 Volts AC, 50/60Hz
• Input Current: 0.8 Amps AC
• Size w/Mounting Bracket: 3.07" x 2.83" x 1.5" (78 x 72 x 38 mm)
• AC Input Plug Style: NEMA 1-15P (non-polarized)
• Certification: Energy Star EISA Level V, RoHS (RoHS2-2011/65/EU)
• Warranty: Limited Lifetime

Elk 14" Structured Wiring Box (ELK-SWB14)

• Manufacturer Part #: ELK-SWB14
• UPC: 762158800146
• Color: White
• Overall Box: 14.25" W x 14.25" H x 3.5" D
• Metal Gauge: 18 gauge
