ELK Alarm Engine Retrofit Data Bus Hub
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Quadruple the Number of RS-485 Connections in Your

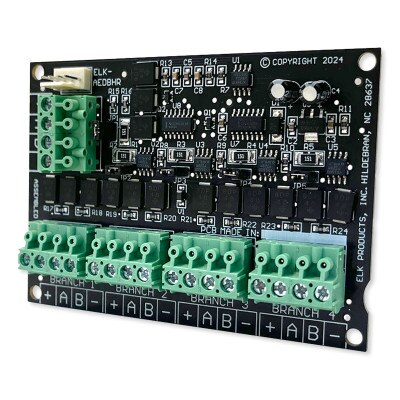

Increase the amount of RS-485 connections in your ELK E27 Alarm Engine system with the ELK Alarm Engine Retrofit Data Bus Hub. This RS-485 data bus hub is designed to split a single RS-485 input into 4 managed branches. Each branch can be further split into 2 parallel home run cables for a total of 8 direct home run connections. The ELK Alarm Engine Retrofit Data Bus Hub is perfect for systems and installations where an Alarm Engine is retrofitting an existing older configuration with multiple home run 4 conductor keypad/data wires. The AEDBHR is designed with terminating jumpers for each branch to ensure proper operation and supervision when appropriately paired with end-of-line devices.
- Databus module splits the Alarm Engine' RS-485 Output Into 4 Managed Branches
- Each Managed Branch Can Have 2 Parallel Home Run Cables (Total Of 8 Home Runs)
- EOL Termination Of Each Branch Insures Proper Operation And Supervision
- Removable terminal blocks for easy wiring
- Works with standard 4 conductor home run wire
- Includes Mounting glides for ELK-SWB Boxes
Installation Details
The AEDBHR can be mounted inside the Alarm Engine enclosure on either side of the Alarm Engine board using the supplied ELK-SWG Circuit Board Glides. If all the mounting locations are consumed, an additional ELK-SWB14 or ELK-SWB28 enclosure may be installed.
The ELK-SWG Circuit Board Glides attach to the enclosure at strategically placed 2-hole punch patterns. Note that one hole in each pattern is slightly larger than the other. The small hole is for a 6/32 type "F" mounting screw and the large hole is for a half-moon shaped locator tab on the bottom of each glide.
Contents
- Alarm Engine Retrofit Data Bus Hub
- SWG Circuit Board Glides
- Instructions
Notes
- Professional installation is recommended.
- Any data bus devices that are added to the Control must be enrolled using the ElkConnect app.
- DO NOT connect more than two (2) AEDBHR Hubs to a single Alarm Engine Control.
- DO NOT connect an AEDBHR on a branch of another AEDBHR. The AEDBHR CANNOT be used as an extender or remote repeater.
- DO NOT remote AEDBHR(s) away from the Alarm Engine. Mount within the main enclosure. Terminate last (end line) device on each home run.
Premium Products For Security And Automation
ELK Products designs and manufactures quality electronic equipment for the professional security alarm and home automation installer. Our products include siren drivers, speakers, relays, timers, programmable controls, surge suppressors, telephone equipment, amplifiers, recordable units, batteries and more.
Specifications
- Manufacturer Part #: AEDBHR
- UPC: 762158570162
- Inputs: Elevator Screw Terminals, 4 Position
- Outputs: Elevator Screw Terminals, 4 Position
- Current Draw: 30mA nominal PLUS 20mA per RS485 active branch driver. Total combined with all 4 branches active would be ~110mA. Note: This is in addition to the power requirements of any connected data bus devices (keypads, expanders, etc.)
- Circuit Board Dimensions: 4" x 2.75"
- Warranty: 2-Year Limited
