Aeotec Z-Wave Plus v2 Recessed Door Sensor 7, Gen7 (Open Box)


Huge Savings! (All Sales Final.)

1 available at this price.

$22.70 $40.95

WARNING: Cancer and Reproductive Harm –


Z-Wave Plus Sensor Hides Inside the Door Frame

The Aeotec Z-Wave Recessed Door Sensor 7 adds discreet security monitoring to your Z-Wave security network. This miniscule Z-Wave Plus magnetic contact sensor fits within the frame of a door, providing completely discreet monitoring. The intelligent sensor sends command signals to your Z-Wave controller to trigger alerts and events upon activation. For example, your sensor may be programmed to trigger an alarm (sold separately) if the door is opened.

  • Battery-powered Z-Wave door sensor designed to hide from view within a frame
  • Sends commands to Z-Wave devices
  • Wireless range up to 130 feet indoors, 492 feet outdoors

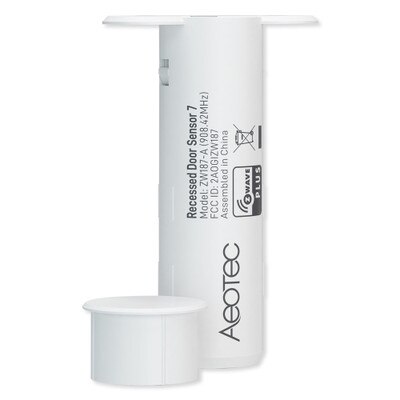

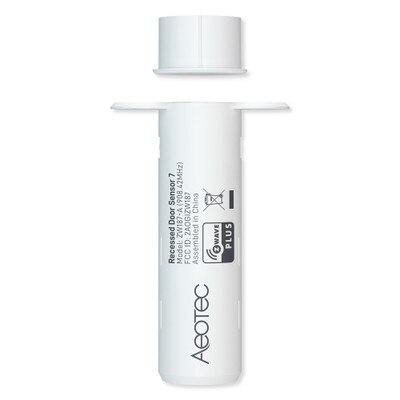

The Door Sensor 7 consists of two components: the main sensor, which mounts inside the door frame, and the smaller magnet, which mounts to the door itself. When the two parts are separated and/or joined again, the sensor sends a Z-Wave command to your Z-Wave network.

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave 700 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series, Gen7 Z-Wave, or Z-Wave Plus v2. Z-Wave 700 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.


  • Door Sensor
  • Battery
  • Magnet
  • Mounting Screws
  • User Manual

NOTE: Requires a Z-Wave controller, (sold separately).

Harmonizing The Digital Home With Z-Wave

Aeotec is a leading developer and manufacturer of wireless products which complement the "Digital Smart Home". Their products are designed to save energy, protect the home, and ultimately improve life. They focus on providing innovation, the highest caliber of quality, and unparalleled user experience without sacrifice.


  • Manufacturer Part #: ZW187
  • UPC: 810667025267
  • Operating Distance: Up to 131 feet (40 m) indoors, 492 feet (150 m) outdoors
  • Frequency: 908.42 MHz
  • Battery: Lithium cell CR2 battery, 3V, 800 mAh
  • Working Current: 30mA
  • Standby Current: 10uA (Inside the Z-Wave network) / 50uA (Outside the Z-wave network)
  • Max Standby Power Consumption: 0.03mW
  • Battery Life: 1 Year
  • Operating Temperature: 32 to 140° F (0 to 40° C)
  • Relative Humidity: 8 to 80 percent
  • Size: 1.92 x 6.4 cm (main body), 2.2 x 1.3 cm (Magnet Sensor)
  • Waterproof and Dustproof Rating: IP20
  • Certifications: FCC, CE, RoHS, Z-Wave Plus
  • Warranty: 1 Year
