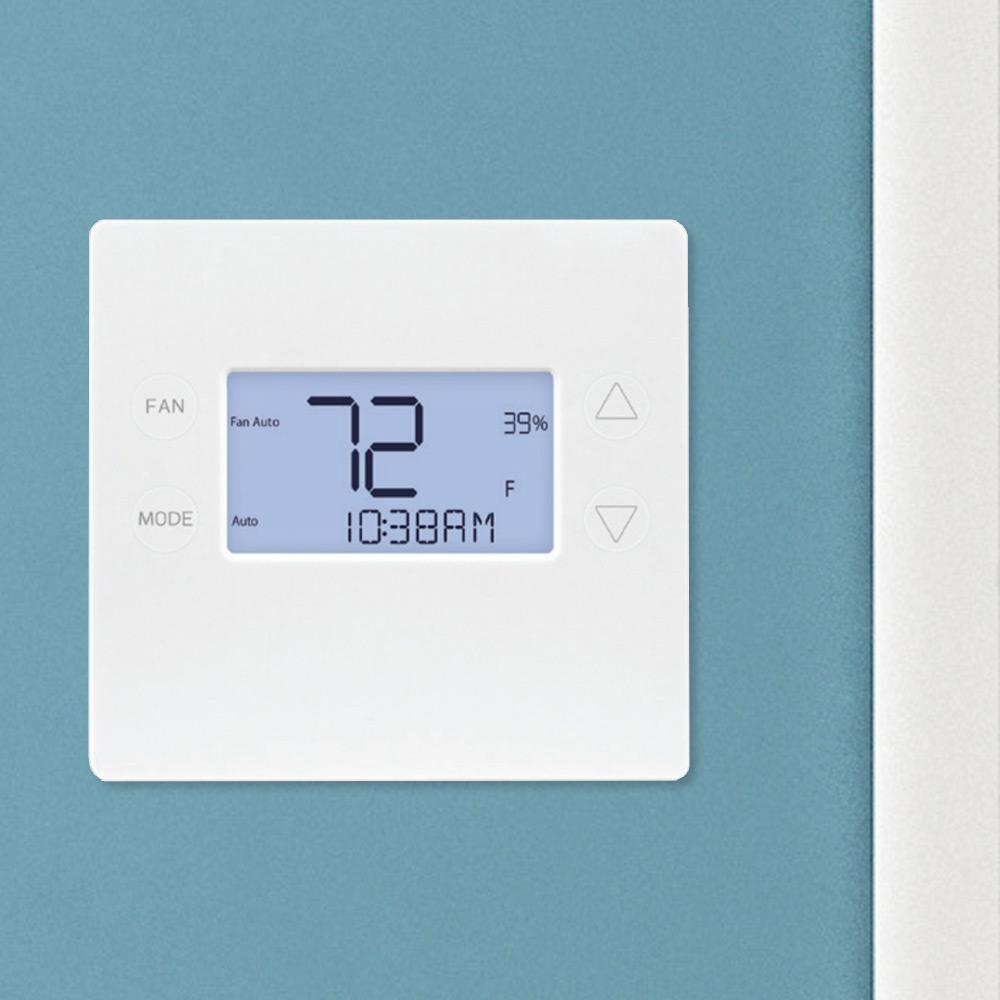

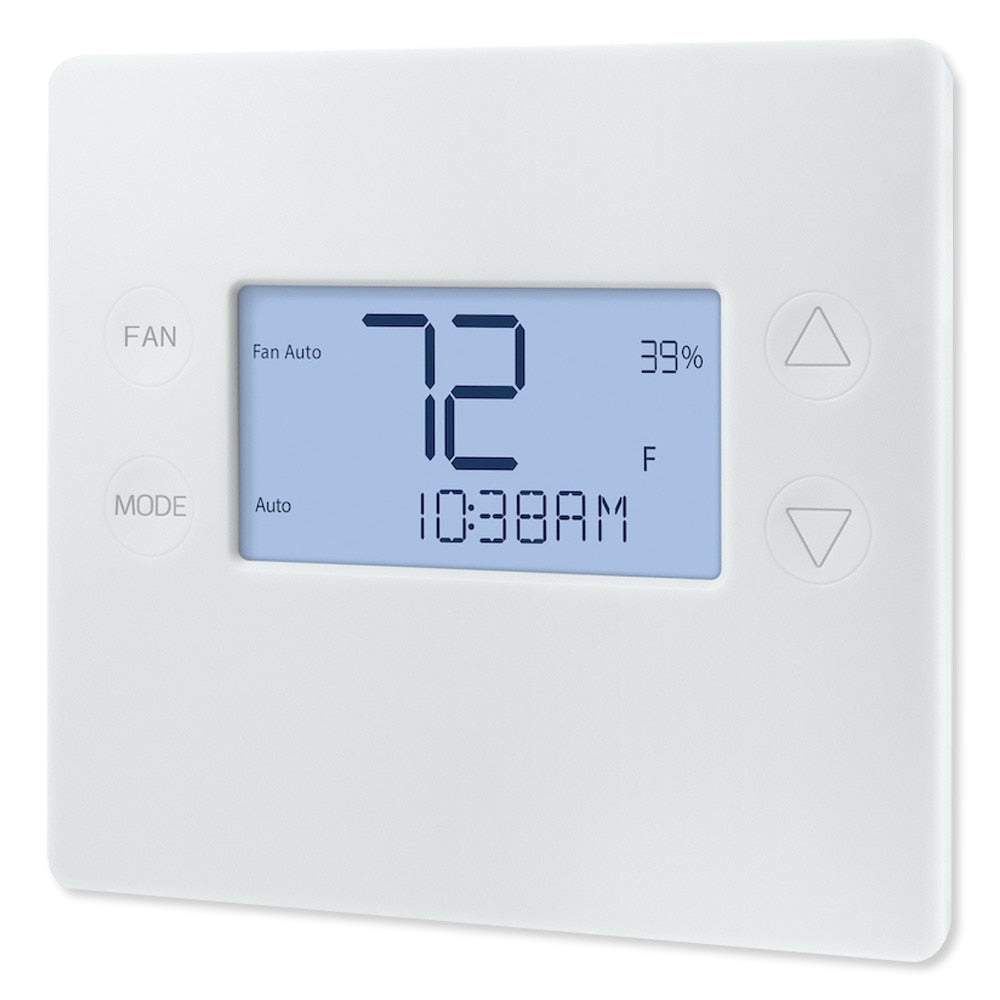

2GIG Z-Wave 700 Programmable Thermostat

Easy-To-Install Z-Wave Plus Thermostat

Add Z-Wave control to your HVAC system by replacing your traditional thermostat with the 2GIG Z-Wave 700 Programmable Thermostat. This programmable Z-Wave 700 thermostat allows you to command your heating and AC systems from the thermostat or through your smart device using a new or existing Z-Wave network.

• Z-Wave 700 Thermostat compatible with most HVAC systems and Z-Wave hubs

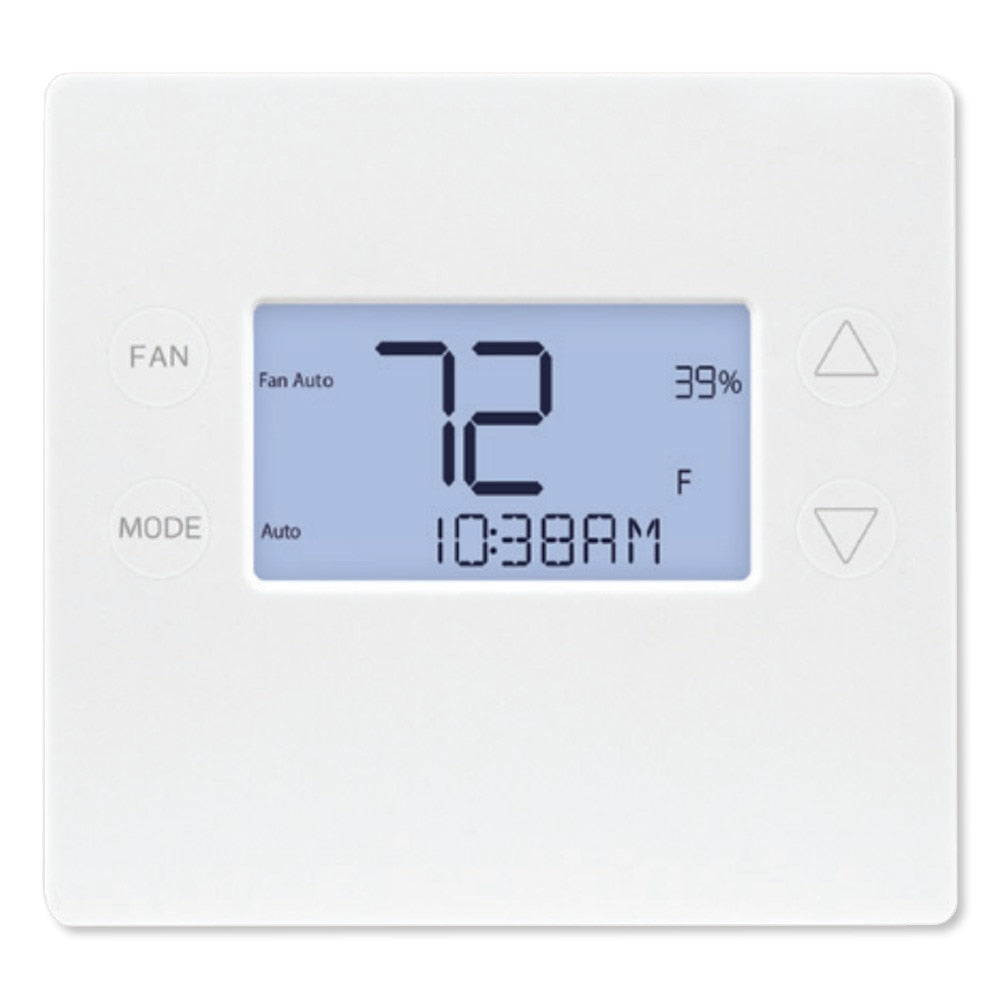

• Capacitive touch buttons and bright LED screen provide clear info and controls
• Display shows current system mode, temperature set points, humidity, and time
• External humidifier / dehumidifier support
• Fahrenheit/Celsius mode and sensor calibration
• SmartStart Support and S2 authentication security
• 24VAC or AA battery powered

Suitable for both new and retrofit applications, the 2GIG Z-Wave 700 Programmable Thermostat works with most modern HVAC systems (standard and heat pump). Compatible systems include:

• Standard Gas/Electric HVAC: 2-stage heating, 2-stage cooling
• Heat Pump HVAC: 3-stage heating, 2-stage cooling and Humidifier/Dehumidifier support

The thermostat can be powered by 24VAC through the connected HVAC system (if both "R" & "C" wires are available at the thermostat) or using four (4) AA batteries for up to two (2) years. DO not install batteries if the thermostat is powered by 24VAC. If the thermostat is battery powered it will not be able to repeat Z-Wave signals in your network.

Z-Wave 700 Series / Z-Wave Plus v2 Certification

Z-Wave 700 is an upgraded Z-Wave certification program to help you identify products that take advantage of the latest Z-Wave hardware platform, also known as 700 Series, Gen7 Z-Wave, or Z-Wave Plus v2. Z-Wave 700 compatible devices include extended wireless range up to 2600 ft/800 m, three layers of encryption, faster operation, and longer battery life.

Contents

• Thermostat
• (4) AA Batteries
• Mounting Hardware
• Install Manual and Quick Start Guide

NOTE: Not compatible with 120/240 VAC systems. Batteries are not required for backup power.

Innovation Drives 2GIG Technology

Now a member of NICE's family brands, 2GIG offers intuitive and creative home automation and smart security technologies. Their premium security and home automation security panels, thermostats, and security sensors provide reliable and easy to use solutions to improve your home living or routine business days. 2GIG's has become a leading name in Z-Wave wireless systems, and has won numerous industry awards since 2011. With 2GIG in control, users experience cutting edge technology to make their homes smarter, safer, and more efficient. 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has and won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

• Manufacturer Part #: 2GIG-STZ1-345
• Programmable thermostat for:
• 24VAC 3H/2C non-heat pump
• 24VAC 3H/2C heat pump systems with humidifier/dehumidifier support
• Room Temperature Measurement:
• Temp. Scale: Fahrenheit / Celsius (user selectable)
• Temp. Range: 32 ~ 122°F (0 ~ 50°C) (Operating Temperature Limit)
• Temp. Accuracy: ± 1°F (0.5°C)
• Temperature Setpoint Range:
• Heat Set Point: 32 – 90 °F (0 – 32 °C)
• Cool Set Point: 61 – 122 °F (16 – 50 °C)
• Setting resolution: 1°F (0.5°C)
• Standard Systems:
• 1 Stage Heating and Cooling
• 2 Stage Heating and Cooling
• Heat Pump Systems:
• 1 Stage Heating and Cooling
• 2 Stage Heating and Cooling
• 2nd or 3rd Stage Aux Heating (Electric Heat Strips)
• Fan Control: Auto/On
• Output Relays:
• Latching type relay for all switching.
• Seven Relays (C, RC, RH, W1, W2/O, Y1, Y2, G, W3, HUM+, HUM-)
• Control Logic:
• Compressor short cycle protection: 5 – 9 minutes, user configurable
• Minimum Run Time: 3 minutes (gas/electric heating), 4 minutes (compressor operation)
• Program: OFF, Heat, Cool, Auto, E-Heat
• Power Supply:
• AC: 18-26VAC 60Hz (R and C)
• 4x AA size battery (6VDC)
• Operating Temperature Range: 32° to 122° F (0° to 50° C)
• Operating Humidity: 10-90 percent Non-Condensing
• Size: 5.75 x 4.5 x 1 in (14.6 x 11.4 x 2.5 cm)
• Weight: 1lb (0.45kg)
• Certification: FCC Part 15, Industry Canada, Z-Wave
• Warranty: 1-Year Limited
