2GIG Takeover Hardwire Enclosure Kit

Helps Convert Hardwired Security Zones Into Wireless Zones

Simplify the process of converting third-party hardwired security zones into wireless zones so that the signals can be transmitted to the 2GIG Control Panel with the 2GIG Takeover Hardwire Enclosure Kit. This kit includes an Enclosure, a Power Supply Board, and a Plug-In Transformer. It does not include the 2GIG Super Switch Takeover Module (part# 2GIG-TAKE-345). The enclosure is made out of durable ABS plastic material and has enough room to house up to three Super Switch Takeover Modules, a Power Supply Board (with backup battery charging circuit), and a backup battery.

• Enclosure kit simplifies conversion of hardwired security zones into wireless zones for the 2GIG Control Panel
• 12.5-inch enclosure made out of durable ABS plastic material (UL 94:V-0)
• Power Supply Board: Input 16.5VAC, 20VA, output 12/24 VDC
• Plug-In Transformer: primary 120VAC 60Hz, secondary 16.5VAC 40VA
• Does not include the 2GIG Takeover Module (part# 2GIG-TAKE-345)

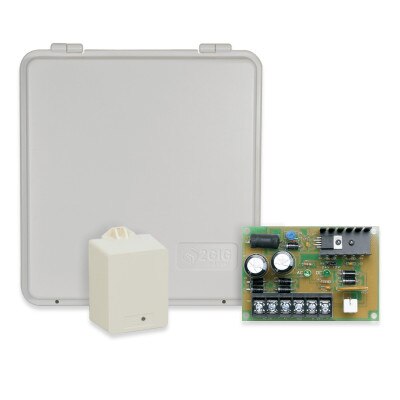

Contents

• Enclosure
• Power Supply Board
• Plug-In Transformer
• Manual

NOTE: The 2GIG Takeover Module is sold separately (part# 2GIG-TAKE-345).

Innovation Drives 2GIG Technology

Now under Nice's family of Linear products, 2GIG offers intuitive and creative home technology with its premier self-contained, all-in-one security and home automation system. 2GIG's GoControl system has become a leading control hub for Z-Wave wireless systems, has and won numerous industry awards, including TechHome's 2011 Security Product of the Year and the 2012 Overall Maximum Impact Award at Electronic Security Expo (ESX). With 2GIG in control, users experience technology they never thought possible.

• Manufacturer Part #: 2GIG-TAKE-ENCL
• UPC: 093863148378

Enclosure

• Material and Certification: ABS Plastic UL 94: V-0
• Dimensions: 11.5 x 12.5 x 4 inches (29.2 x 31.8 x 10.2 cm)

Power Supply Board

• Input: 16.5VAC, 20VA
• Output: 12/24 VDC
• Supervision: Low battery and AC fail supervision for "C" contacts (1 amp @ 28VDC)
• Battery Backup: Built-in charger for sealed lead or gel type batteries, automatic switchover to stand-by when AC fails
• Visual Indicators: AC input and DC output LED indicators

Plug-in Transformer

• Primary: 120VAC 60Hz
• Secondary: 16.5VAC 40VA
• LED Indicator: Supervises Power
• Primary Termination: 2 Male Blades
• Secondary Termination: 2 #6-32 Screw Terminals
• Dimensions: 2.64(W) x 4.05(D) x 2.24(H) inches (6.7 x 10.3 x 5.7 cm)
• Weight: 1.6 lbs
• Color: White

»2GIG 2GIG-TAKE-ENCL Wireless Hardwire Takeover Module Enclosure Kit Spec Sheet (.pdf)
