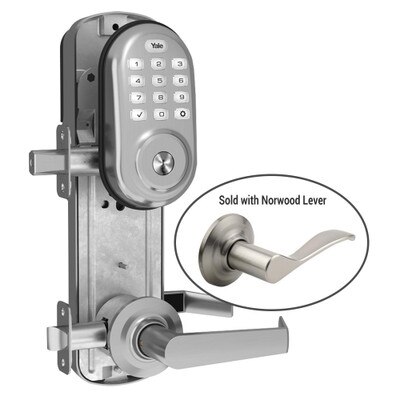

Yale Z-Wave Assure Interconnected Lockset with Push Button Deadbolt, Norwood Lever, Right Handed

SKU: YAYRC216ZW2NW5xRH

Please Select Option To View Availability

$358.10

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Secure Entry And Exits With With Z-Wave Leverset

Add another layer of security to your home or business and maintain a quick and easy exit by installing the Yale Z-Wave Assure Interconnected Lockset with Push Button Deadbolt, Norwood Lever, (Right Handed). This interconnected leverset and deadbolt provides panic-proof entry through 3 ways to access the lock, plus, a quick and easy guaranteed exit with dual bolt retraction.

The handle's latchbolt is operated by the Norwood style lever. The connected motorized deadbolt can be locked/unlocked by inputting your 4-8 digit code into the pushbutton keypad on the outside, by turning the thumbturn on the inside, by using a key with the traditional keyhole, or by remote control when connected to your Z-Wave network. When the lockset is used from the inside, the latchbolt and deadbolt retract simultaneously. Even when the deadbolt is locked, just push down on the handle and open the door to leave.

  • Leverset and keyed deadbolt with backlit pushbutton keypad
  • From inside, latchbolt and deadbolt retract simultaneously for quick exit
  • Lock/unlock deadbolt via Z-Wave, numbered access code, or turnkey
  • Give unique codes to friends, family, and guests
  • Remove individual codes whenever you need to
  • Easy to install, battery-powered, no wiring required
  • Weather-resistant, pushbutton keypad numbers won't wear off
  • One-touch locking and keypad wake-up
  • ANSI/BHMA Grade 2 for strong, reliable security

The Yale Z-Wave Assure Interconnected Lockset with Pushbutton Deadbolt comes with an optional Z-Wave Network Module (U.S. frequency), allowing integration into your Z-Wave network. The deadbolt can easily integrate into 50+ home automation and security systems including Vera, SmartThings, Alarm.com, Honeywell, Vivent, and more. Once integrated, the Z-Wave lock gains additional features:

  • Lock/unlock deadbolt remotely via Z-Wave
  • Max. number of user codes increases from 25 to 250
  • Create codes, view access history, and adjust settings via Z-Wave
  • History log shows when family/friends come and go in real time
  • Trigger other Z-Wave devices upon valid/invalid code entries
  • Privacy mode locks out all users for enhanced security

Installation Details

The interconnected leverset is designed to install on doors measuring 1-3/8 to 1-3/4 inches thick. This model is factory preset for right-handed use by default (hinges right). It may be reversed by a professional installer. (For the left-handed default model, alternatively purchase part YRC226ZW2LV5-xxx-LH, sold separately.) All the necessary installation hardware is included, along with a template for door preparation and detailed instructions.

The deadbolt is powered by four (4) AA batteries, which are included and usually last for about one year. The Z-Wave Network Module snaps in above the batteries. When the battery is low, or wrong codes are entered, or the lock is tampered with, an alert is triggered. Programming is done at the lock via the pushbutton keypad, or through your Z-Wave system controller.

Contents

  • Z-Wave Assure Interconnected Lockset with Pushbutton Deadbolt (RH)
  • Norwood Style Lever
  • Z-Wave Network Module, Plug-In
  • (4) AA Batteries
  • (2) Turnkeys
  • Mounting Hardware
  • Instruction Manual

Notes

  • Optional network integration requires a Z-Wave controller.
  • Features may vary based on the Z-Wave controller.
  • If Apple HomeKit compatibility is desired instead of Z-Wave, alternatively purchase the HomeKit Module, part number YR202IM1, sold separately.

Yale Real Living – Solutions For The Digital Home

As a residential product line under the Yale Security brand, the Yale Real Living series brings over a century of innovation to the digital home. Known for manufacturing top-quality deadbolts and leversets, Yale now offers lock hardware and other home security solutions fit for the modern, connected age.

Specifications

  • Manufacturer Part #:

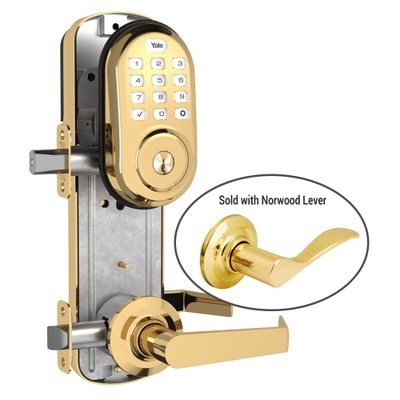

    • Bright Brass: YRC216ZW2NW5-605-RH
    • Oil-Rubbed Bronze: YRC216ZW2NW5-0BP-RH
    • Satin Nickel: YRC216ZW2NW5-619-RH
  • Lever Style: Norwood (NW)
  • Wireless Protocol: Z-Wave (908.4 MHz) U.S. – includes plug-in Network Module
  • Max. User Codes: Standalone: 25 user codes; With Network Module: 250 user codes; 4-8 digits each
  • Keypad Type: Pushbutton
  • Grade: Grade 2: A156.12 ANSI/BHMA
  • Handing: Reversible (Lock is set at RH by default (hinges right); can be reversed in the field for LH by a professional)
  • Batteries: 4 AA Alkaline Batteries (Included)
  • Face Bore: 2-1/8" (54mm)
  • Edge Bore: 1" (25mm)
  • Center to Center: 5-1/2"
  • Backset: 2-3/8" or 2-3/4"
  • Latch: Adjustable
  • Latch Front: RC (Round Corner)
  • Door Thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
  • Strike: 2-1/4" (57mm) Full Lip Lockset and 1" (25mm) W x 2-1/4" (57mm) H Deadbolt; Radius Corner standard, other strikes available to order.
  • Strike Front: RC (Round Corner)
  • Thumbturn: Yes
  • Cylinder: 5-Pin Cylinder
  • Keyway 1: KW-1, 5-Pin
  • Number of Keys: 2
  • Weight: 10 pounds
  • Lock Dimensions:
    • Exterior: 10-5/8 x 2-1/2 x 2-5/8 inches
    • Interior: 12-1/8 x 2-13/16 x 2-5/8 inches
  • Approvals: FCC/IC; ANSI/BHMA Grade 2 – BHMA Certified; ANSI A117.1 Accessibility Code; UL/cUL listed for 90 minute fire doors
  • Warranty: 1-Year for Electronics and Finish; 3-Years for Mechanical
