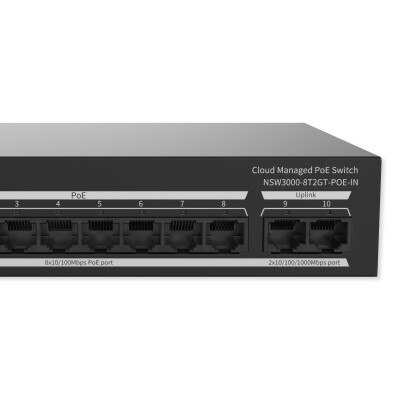

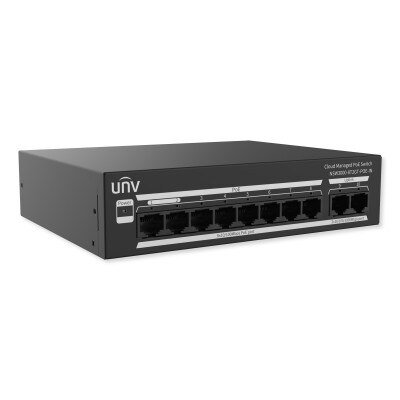

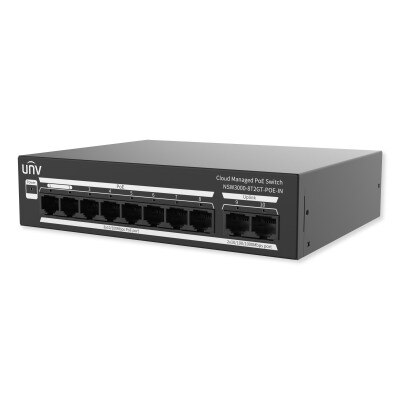

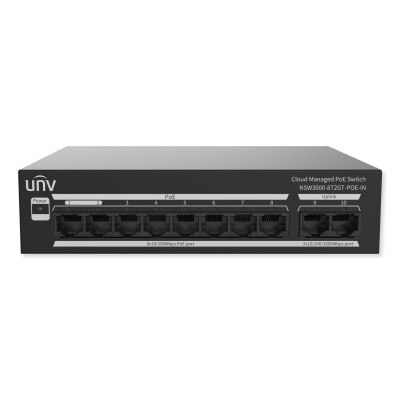

Uniview NSW3000 Series Cloud Managed Ethernet PoE Switch, 8 Port, 120W

Support 8 Network Devices with Room to Expand Your Network

Support 8 network devices with the Uniview NSW3000 Series Cloud Managed Ethernet PoE Switch, 8 Port, 120W! This front-facing managed network switch supports Power over Ethernet (PoE) connectivity for up to eight (8) compatible devices including IP cameras, VoIP telephones, network video recorders, PoE signal extenders, and more. The PoE Switch powers connected devices with a 120W total power budget and transfers data with a 5.6 Gbps switching capacity. Each PoE port can handle a max power output of 30W and use a single ethernet cable (Cat5 or above) to transmit data and power to IEEE802.3af/at-compliant devices. Devices that are separately powered can use one of the PoE ports by disabling the individual port's PoE power supply function. The switch includes an easy-to-use management interface to simplify configuration from a local computer or controller. Easily setup Internet group management protocol (IGMP) on a per-port basis to customize your local network.

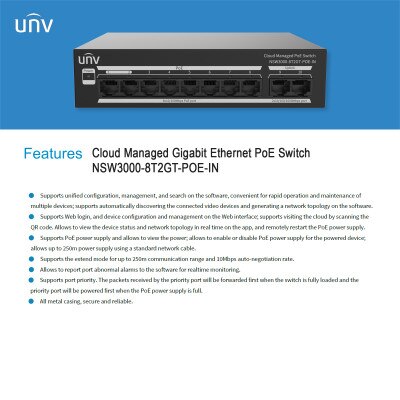

• Gigabit Switch connects up to 8 network devices via Power over Ethernet connections
• 5.6 GB switching capacity and 120W total power budget, up to 30W per PoE port
• Cloud-based management for remote configuration and real-time monitoring
• Extended transmission range up to 250 meters in extend mode for flexible deployment
• Advanced security features including port isolation and access control for enhanced data protection
• Intelligent traffic management with port priority and QoS support for optimized network performance
• Durable all-metal casing ensuring reliability and longevity

Installation Details

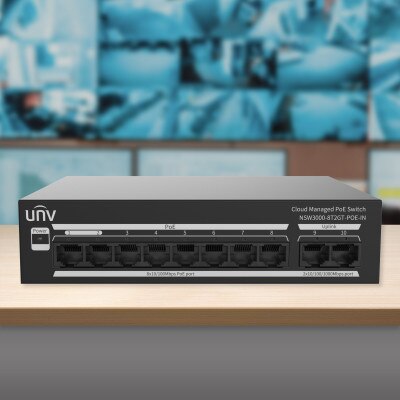

The Uniview NSW3000 Series Cloud Managed Ethernet PoE Switch, 8 Port, 120W can be placed atop or within a media cabinet or desktop, or rack mounted with the included 19 inch rack mounting kit.

Contents

• Managed Ethernet PoE Switch, 8 Port
• Power Cord
• Quick Install Guide

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: NSW3000-8T2GT-POE-IN
• UPC: N/A
• Service Port:
• 8 x 10/100Mbps POE port (RJ45)
• 2 x Gigabit port (RJ45)
• Switching Capacity: 5.6Gbps
• Packet Forwarding Rate: 4.17Mpps
• Packet Buffer: 2Mbit
• MAC: 4K
• Power Supply: AC 100V to 240V, 50/60Hz
• Maximum Total Power: 130W
• Maximum PoE Power:
• Maximum Total Power: 120W
• Maximum PoE Power for Single Port: 30W
• Mode A, 1/2+, 3/6-
• Mode B, 4/5+, 7/8-
• PoE Standard: IEEE802.3af/at
• Priority Ports: 1~2
• Priority QoS: Forwards the packets from the first eight priority ports in the event of data congestion
• Cooling Fans: 0
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -40° to 158°F (-40°C to 70°C)
• Operating Humidity: 10% to 90% RH, noncondensing
• Storage Humidity: 5% to 90% RH, noncondensing

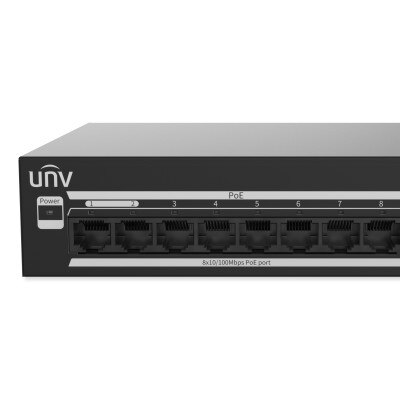

• Indicator:
• Power:
• Power On (Green): Normal power input
• Power On (Yellow): The total PoE power is higher than 85% of the total power of the device
• Off: No AC input
• PoE:
• No PoE Indicator; LINK/ACT Off: No link
• LINK/ACT Steady on: Linked
• LINK/ACT Flashing: Transmitting data
• Ethernet:
• Supports full duplex, half duplex, and auto-negotiation working modes
• Supports enabling/disabling ports
• Supports port auto-negotiation rate
• Supports port priority flow control
• Supports port flow statistics
• Supports a link aggregation group (consist of two uplink ports)
• System:
• Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.
• Allows to edit and manage the IP address and device name
• Supports single-user management, user authentication, and password modification
• Supports manual time configuration and NTP
• Allows to view other switches information on the same network, up to 32 switches
• Allows to view the connected video devices information, up to 64 devices
• VLAN: Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094
• MAC:
• Support (up to 4K)
• Supports clearing the dynamic MAC address
• Port loopback detection: Support
• QoS:
• Supports port rate limitation
• Supports broadcast storm control
• PoE:
• Allows to view PoE status and power
• Allows to enable/disable PoE power supply
• Security:
• Supports port isolation (only for the downlink ports)
• Supports locking login IP address, up to 64 addresses can be locked
• Maintenance:
• Supports N:1 port mirroring
• Supports unified software configuration, management, and search
• Supports discovering the connected video devices and generating a network topology on the software
• Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software
• System:
• Allows to view the device name, device model, serial number, current version, IP address
• MAC address, DNS, operation time, etc.
• Allows you to edit and manage the IP address and device name
• Supports single-user management, user authentication, and password modification
• Supports manual time configuration and NTP
• Allows to view other switches information on the same network, up to 32 switches
• Allows to view the connected video devices information, up to 64 devices
• Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
• Weight: 1.47 lbs (0.67kg)
• Dimensions (WxDxH): 6.65 x 5.19 x 1.57 inches (169mm x 132mm x 40mm)

»Uniview NSW3000 Series Cloud Managed Ethernet PoE Switch Spec Sheet (.pdf)
