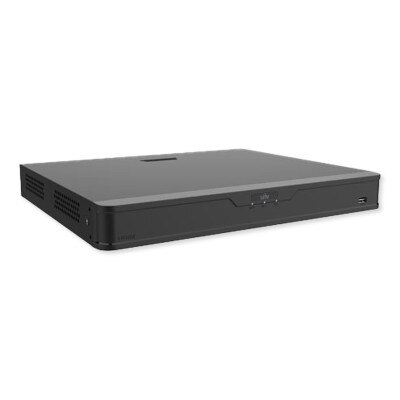

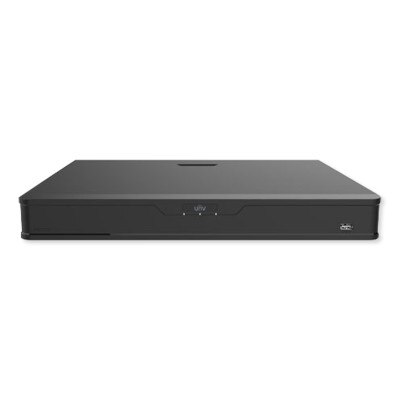

Uniview Digital Video Recorder, 8 Channel

Upgrade to 4K Surveillance Using Your Existing Coax Cables

Support HD and UHD surveillance with new and existing security cameras with the Uniview Digital Video Recorder. This versatile 8-channel hybrid digital video recorder (DVR) is designed to support multiple camera formats, including TVI, AHD, CVI, CVBS, and IP cameras. This flexibility allows seamless integration with various surveillance systems, making it an ideal choice for both new surveillance installations and upgrading existing systems. The DVR supports H.265 and H.264 video compression formats for efficient storage utilization without compromising video quality. With HDMI and VGA outputs, users can display HD to 4K video playback on connected monitors. Additionally, the device offers adaptive access for different camera types, simplifying the setup process.

• 8 channel digital video recorder supports TVI, AHD, CVI, CVBS, and IP cameras for a versatile surveillance system
• Saves video footage in resolutions between 720p@30fps and 8MP@15fps (3840 x 2160)
• Display livestream or recorded footage through HDMI and VGA output
• Supports H.265, and H.264 compression to store up to 8TB of footage
• Supports 3rd party cameras compliant with ONVIF and RTSP protocols
• Smart Video Content Analysis (VCA) offers intelligent monitoring of live and recorded footage that triggers alerts when selected criteria are met within a camera's field of view such as detected faces or motion, intruded areas and more
• Audio over coaxial cable support (only for TVI cameras)

The Uniview XVR302-08U3 allows for the integration of up to 16 IP cameras, making it suitable for larger surveillance setups. The device supports multiple recording resolutions, including 8MP, 5MP, 4MP, 1080P, and 720P, providing flexibility based on specific security needs. While the DVR does not have built-in wireless connectivity or native voice control compatibility, it can be accessed remotely via Uniview's mobile application, enabling users to monitor live feeds and manage recordings from their smartphones.

Installation Details

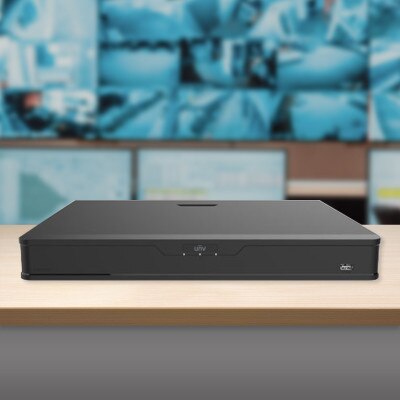

The NVR can be placed on a tabletop or rack mounted. Connect any IP cameras to the recorder with ethernet cables. Once the connections are set up, use the tools to quickly set up your surveillance system. The NVR can be used to set up a new surveillance network, replace an older NVR, or connect to an existing surveillance network through 2 SATA ports to expand the size of your surveillance network.

UNV-Link

Take control of your Uniview cameras and NVRs with the UNV-Link application for iOS and Android. The UNV-Link app aims to enhance the daily experience of end users by providing convenient access to live view, playback and alarms. This all-in-one app offers the power of 24/7 monitoring, intrusion alarms, and video intercom functionality.

Contents

• Uniview XVR302-08U3 DVR
• Power Adapter
• USB Mouse
• Remote Control
• Quick Start Guide

Notes

• Hard drives for storage are sold separately; the DVR supports up to 2 hard drives, each up to 8TB.
• Compatible with various analog camera types; refer to the specifications for supported resolutions and frame rates.
• Ensure all connected cameras are properly powered and compatible with the DVR's supported formats.
• For remote access, connect the DVR to a network and configure the mobile app accordingly.
• Professional installation is recommended to optimize system performance and ensure proper setup.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: XVR302-08U3
• UPC: 810093320264
• Warranty: 3-Year; Hard drives not covered

Audio / Video Input

• IP Video Input: 8 channel
• Analog Video Input: 8 channel, BNC
• Max IP Video Input: 16 channel
• Supported Analog Camera Types:
• Support AHD Input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps
• Support TVI Input: 8MP@15fps, 3K@20fps, 5MP@20ps, 4MP@30fps, 1080P@30fps, 720P@30fps
• Support CVI Input: 8MP@15fps, 5MP@25ps, 4MP@30fps, 1080P@30fps, 720P@30fps
• Support CVBS Input
• BNC Audio Input: 8 channel audio
• RCA Audio Input: 4 channel

Audio / Video Output

• HDMI Output: HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Recording Resolution: 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
• BNC Video Output: 1-ch
• RCA Audio Output: 1-ch
• Live View Display: HDMI/VGA: 1/4/6/8/9/16
• Audio over Coaxial Cable(Form): 8-ch, One-way Audio(TVI)
• Two-Way Audio: 1-ch, RCA(Using the audio input and output)

Network

• Incoming Bandwidth: 80 Mbps (Up to 96 Mbps after all analog channel conversion)
• Outgoing Bandwidth: 160 Mbps
• Remote Users: 128
• Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP
• Browser (Plugin): Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)

Snapshot

• FTP/Schedule/Event Snapshot: Schedule / FTP / Event snapshot:8-ch snapshot, up to 704*576 resolution

Encoding/Decoding

• Recording Resolution: 8MP / 5MP / 4MP / 1080P / 720P / D1
• Recording Frame Rate:
• Main stream: 8MP@8fps, 3K@12fps, 5MP@12fps, 4MP@15fps, 1080P@25fps, 720P@30fps
• Sub Stream: D1@8fps, D1@12fps, D1@15fps, D1@25fps, D1@30fps
• Audio Sample Rate: 8KHz, 16 bit per channel
• Audio Bit Rate: 64Kbps per channel
• Decoding Capability:
• Analog: 8 x 8MP@8, 8 x 3K@12, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 8 x 720@30
• IP: 16 x 720P@30, 8 x 1080P@30, 4 x 4MP@30, 2 x 8MP@30

Hard Disk

• SATA: 2 SATA Interfaces
• Capacity: Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)

Smart

• Analog Smart by XVR: SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
• IP Smart by IPC: Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking
• VCA Search: Face Search, Behavior Search
• Smart Functions by XVR: 8-ch(UMD), 4-ch(SIP)

Alarms

• General Alarm: Motion
• Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface: 1 RJ45 10M / 100M / 1000M self-adaptive Ethernet Interface
• USB Rear Panel: 1 x USB 3.0; Front panel: 1 x USB 2.0
• RS485: 1
• RS232: NA
• Alarm In: 8-ch
• Alarm Out: 4-ch
• Power Supply: DC 12V/3A

PoE

• Interface: 16 RJ-45 10M/100M self-adaptive Ethernet Interface
• Max Power:
• Max 30W for single port
• Max 240W in total
• Supported Standard: IEEE 802.3af/at

General

• Working Environment: 14 to 131° F (10 to 55° C)
• Working Humidity: ≤ 90% RH (non condensing)
• Power Consumption: ≤ 12W
• Dimensions:
• Weight (without HDD): ≤ 2.0 Kg (4.4lb)
• Dimensions: 15.0" x 12.8" x 2.1" (380mm x 326mm x 53mm)
• Certifications: CE; FCC; UL; RoHS; WEEE
• CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
