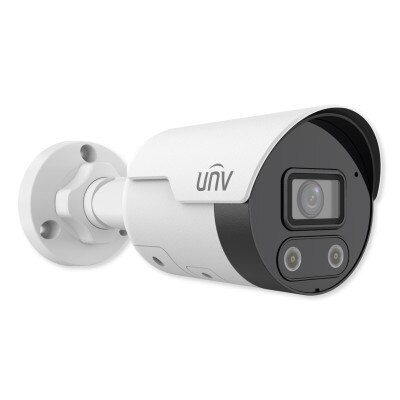

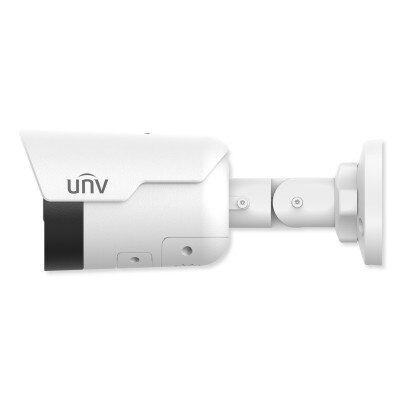

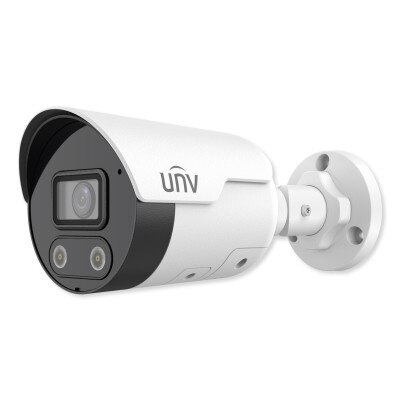

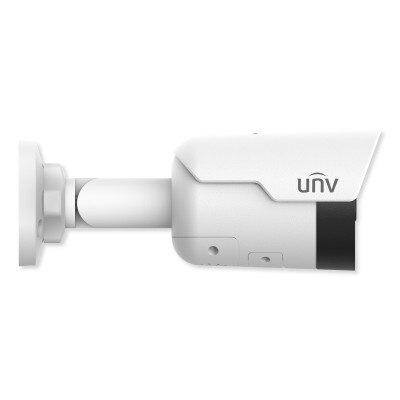

Uniview 5MP HD Tri-Guard Dual-Light Bullet Camera, 2.8mm Fixed Lens

Monitor Indoor/Outdoor Activities In HD Resolution

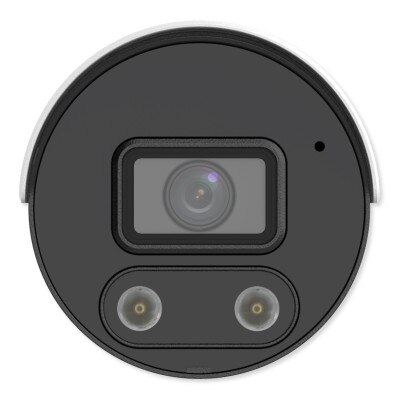

Provide high-quality surveillance in just about any lighting environment by adding the Uniview 5MP HD Tri-Guard Dual-Light Bullet Camera, 2.8mm Fixed Lens to your security system. This fixed bullet camera supports Ultra 265, H.265, H.264, MJPEG compression formats and offers discreet surveillance by capturing HD quality footage with a 5MP, 1/2.7-inch CMOS sensor. UNV Tri-Guard integrates Smart Intrusion Prevention (SIP), ColorHunter, and Active Deterrence technologies to help detect and prevent crimes at night or in other dark locations and only triggers alerts when an actual event occurs. Plus, this bullet camera comes with Dual-Lights built-in, which means it has one infrared light (IR) and one LED light (White Light). These lights switch between night vision mode and a color-illuminated mode to provide clear color footage with less light pollution.

The Uniview 5MP HD Tri-Guard Dual-Light Bullet Camera allows you to monitor narrow vertical areas such as aisles and hallways through the camera's 9:16 Corridor Mode, which allows you to change the camera's aspect ratio from 16:9 to 9:16. It comes with a built-in microphone so you can have audio recordings of the captured footage, allowing you to not only see what is happening but also hear the audio while reviewing the recorded footage.

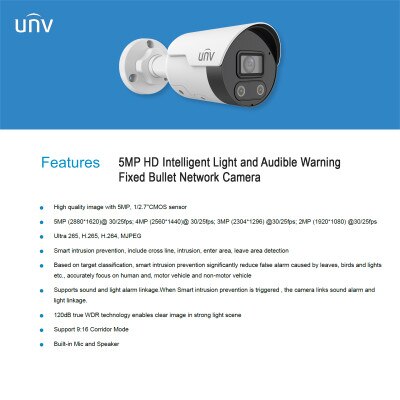

• Surveillance bullet camera supports up to 5MP (2880 x 1620 @25fps) and Ultra 265, H.265, H.264, MJPEG compression
• Tri-Guard technology ensures full-color image quality at night and reduces false alarm triggers
• Supports 9:16 Corridor Mode for 9:16 aspect ratio, vertical view monitoring
• IP67 rated for weather resistant outdoor use
• Powered via DC 12V(±25%) or PoE connection
• Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software

When connected to a compatible NVR, this Uniview 5MP Camera is designed to support advanced smart intrusion prevention technology to offer precise false alarm filtering and detection features for Cross Line, Intrusion, Enter Area, and Leave Area. It provides support for People Flow Counting and Crowd Density Monitoring so that you can see where people enter and exit as well as where people tend to linger the most in a monitored area, helping to analyze the footage so you can determine where you might want to provide extra security. Additionally, it supports detection capabilities such as Motion Detection, Ultra Motion Detection, Tampering Alarm, and Audio Detection, making this dome camera a much-needed and excellent addition to your security system.

Installation Details

This Bullet Camera is weather-resistant (IP67) and can be installed outdoors or indoors. The camera is powered by DC 12V±25% or via a PoE connection. Included is a mounting template and hardware for installation with alternative mounting options available such as wall mounting, poll mounting, and more are available through mounting adapter accessories (sold separately).

UNV-Link

Take control of your Uniview cameras and NVRs with the UNV-Lin application for iOS and Android. The UNV-Link app aims to enhance the daily experience of end users by providing convenient access to live view, playback and alarms. This all-in-one app offers the power of 24/7 monitoring, intrusion alarms, and video intercom functionality.

Contents

• Bullet Camera
• Mounting Hardware
• Manual

Notes

• This device supports viewing and management via a web browser on a PC.
• Compatible network video recorders (NVR) sold separately.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: IPC2125SB-ADF28KMC-I0
• UPC: 810093328314

Camera

• Max Resolution: 5MP
• Sensor: 1/2.7" CMOS
• Minimum illumination:
• Colour: 0.001Lux (F1.0, AGC ON)
• 0 Lux with light
• Shutter: Auto/Manual, 1 to 1/100000s
• Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
• WDR (Wide Dynamic Range): 120dB
• S/N: >52dB

Lens

• Focal Length: 2.8mm
• Iris Type: Fixed
• Iris: F1.6
• Field of View (H): 110.0°
• Field of View (V): 58.7°
• Field of View (D): 130°
• Lens Type: Fixed

DORI

• Lens (mm): 2.8
• Detect (m): 63.0 (206.7ft)
• Observe (m): 25.2 (82.7ft)
• Recognize (m): 12.6 (41.3ft)
• Identify (m): 6.3 (20.7ft)

Illuminator

• Supplemental Light: Dual light
• Illumination Distance (IR): 30 m (98.4 ft)
• Illumination Distance (Warm Light): 30 m (98.4 ft)
• Light On/Off Control: Auto/Manual
• Wavelength: 850 nm

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
• Main Stream: 5MP (2880x1620), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps;
• Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps;
• Third Stream: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps
• Video Bit Rate: 128 Kbps to 16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple streams


• White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal, Flip Vertical, Flip Horizontal, 180° , 90° Clockwise, 90° Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Intelligent

• Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
• Statistical Analysis: N/A

Events

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
• General Function: Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Suppression: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 512 GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
• Client: UNV-Link, UNV-Link Pro, EZStation
• Web Browser:
• Plug-in Required Live View: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
• Plug-in Free Live View: Chrome 57+, Firefox 58+, Edge 16+

Interface

• Audio I/O: N/A
• Alarm I/O: N/A
• Serial Port: N/A
• Built-in Mic: Support
• Built-in Speaker: Support
• Wi-Fi: N/A
• Network: 1 RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power Consumption: Max 11.5W
• Power Interface: Ø5.5 mm coaxial power plug
• Dimensions: 7.5(L) x 2.9(W) x 2.9(H) inches (191 x 75 x 74mm)
• Weight: 1.10lb (0.50kg)
• Material: Metal
• Working Environment:
• -22° F to 140° F (-30° C to 60° C)
• Humidity: ≤ 95% RH (non-condensing)
• Storage Environment:
• -22° F ~ 140° F (-30° C ~ 60° C)
• Humidity: ≤ 95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Support

Certifications

• EMC:
• CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
• FCC (FCC 47 CFR part15 B)
• Safety:
• CE LVD (EN 62368-1)
• CB (IEC 62368-1)
• UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-ROHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection: Ingression protection: IP67 (IEC 60529-2013)
