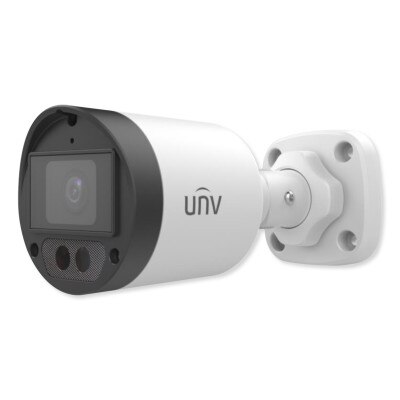

Uniview 5MP HD IR Bullet Analog Camera, Fixed 2.8mm Lens

Capture Indoor/Outdoor Footage In 5MP Resolution

Add discreet, HD-quality video surveillance at your property with the Uniview 5MP HD IR Fixed Bullet Analog Camera, 2.8mm Lens. Capturing indoor or outdoor activity in 1620p resolution at 25fps, this 5MP bullet camera supports a variety of video outputs, which include TVI, AHD, CVI, and CVBS. It's designed with an IR-cut filter, Lighthunter technology, and four exposure modes (Global, BLC, HLC, and DWDR) to deliver exceptional image quality even in low-light conditions. It also utilizes an IR cut filter and an ICR (Infrared Cut Removable) feature to enable day/night functionality so that you get the best possible footage in both daylight and nighttime settings. This HD bullet camera features a Flip function that enables you to digitally rotate the image horizontally or vertically. This ensures the view the image displays right-side up on your monitor in rare instances when the camera is installed upside down or at an unusual angle. It also comes with a built-in microphone so you can have audio recordings of the captured footage, allowing you to not only see what is happening but hear the audio to aid in investigating and understanding the recorded video.

• Surveillance bullet camera captures footage with a 5MP (2880 x 1620 @25fps) sensor and provides TVI / AHD / CVI / CVBS video outputs
• LightHunter and DWDR technologies ensure clear, image quality in low-light environments
• Flip functionality allows the view to be rotated 180 degrees
• IP67-rated as weather resistant for long-lasting use
• Powered via DC 12V(±25%), with reverse polarity protection
• Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software

Installation Details

This Fixed Bullet Analog Camera is weather-resistant (IP67) and can be installed outdoors or indoors. The camera is powered by a 5.5 mm interface with 4kV surge protection to handle voltage spikes up to 4 kilovolts in magnitude. Included is a mounting template and hardware for installation with alternative mounting options available such as pole mounting, pendant mounting, and more are available through mounting adapter accessories (sold separately).

UNV-Link

Take control of your Uniview cameras and NVRs with the UNV-Lin application for iOS and Android. The UNV-Link app aims to enhance the daily experience of end users by providing convenient access to live view, playback and alarms. This all-in-one app offers the power of 24/7 monitoring, intrusion alarms, and video intercom functionality.

Contents

• Bullet Camera
• Mounting Hardware
• Manual

Notes

• This device supports viewing and management via a web browser on a PC.
• Compatible network video recorders (NVR) sold separately.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: UAC-B125-AF28M
• UPC: 810093323050

Sensor

• Pixel: 5MP
• Size: 1/2.7"
• Minimum illumination:
• 0.005 lux (F1.6, AGC ON)
• 0 lux (IR on)

Lens

• Lens Type: 2.8mm
• Lens Mount: M12
• Angle of View: H: 109.1° V: 60.9° D: 126.7°

Illuminator

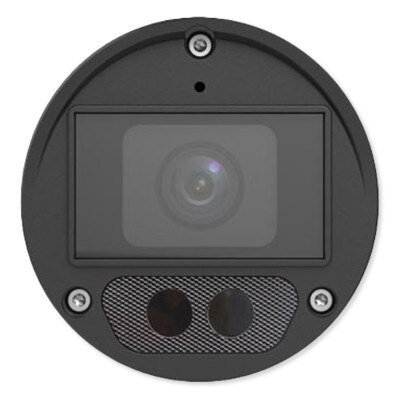

• Illuminator: Two IR illuminators
• Illumination Distance: 40m
• Lifetime: ≥60, 000 hours

Video

• Resolution: 5MP@25fps: 2880(H) x 1620(V); 5MP@20fps: 2592(H) x 1944(V); 5MP@12.5fps: 2592(H) x 1944(V); 4MP: 2560(H) x 1440(V); 1080P: 1920(H) x 1080(V)
• Frame Rate:
• TVI:
• NTSC: 5MP@20fps(default), 5MP@12.5fps, 4MP@30fps, 1080P@30fps
• PAL: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 1080P@25fps
• AHD:
• NTSC: 5MP@20fps, 4MP@30fps, 1080P@30fps
• PAL: 5MP@20fps, 4MP@25fps, 1080P@25fps
• CVI:
• NTSC: 5MP@25fps, 4MP@30fps, 1080P@30fps
• PAL: 5MP@25fps, 4MP@25fps, 1080P@25fps
• CVBS:
• NTSC：1200x480
• PAL: 1200x576


• Shutter Time:
• NTSC: 1/30s–1/50000s
• PAL: 1/25s-1/50000s
• Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
• Day/Night: Three modes: Auto (default), Day, Night
• Noise Reduction: 2D
• White Balance: Two modes: Auto (default), Manual
• WDR (Wide Dynamic Range): DWDR
• Smart IR: Support
• Flip: Supports 180° horizontal flip, 180° vertical flip

Audio

• Microphone:
• TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
• CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps

Interface

• Power: 5.5mm power interface
• Video Output: BNC, supports TVI / AHD / CVI / CVBS

Operating Environment

• Temperature: -22° F to 140° F (-30° C to 60° C)
• Humidity: ≤ 95% (RH, non-condensing)
• Surge Protection: 4kV for power and video output interfaces
• Ingress Protection: IP67
• IK Rating: IK10

General

• Power: DC 12V(±25%), with reverse polarity protection, Max 3.3W
• Mount: Surface mount (default), optional tilted mounting bracket
• Dimensions (Ø x H): ♦109 x 83mm (♦4.2" x 3.3")
• Weight: 327g (0.82lb)
• Material: Metal
• Certification: CB, CE, FCC, UL
