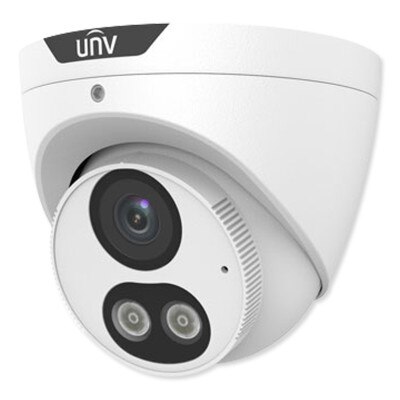

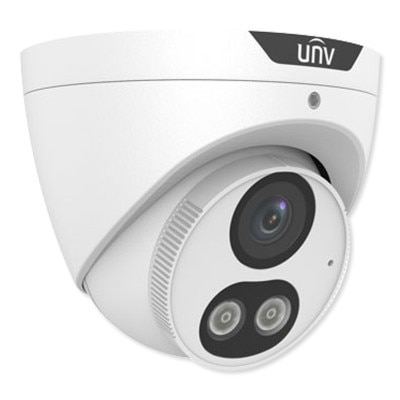

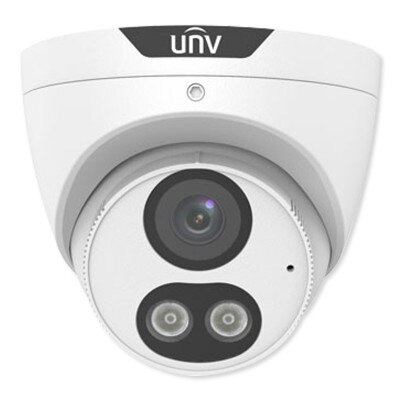

Uniview 5MP HD Eyeball Network Dome Camera, 2.8mm Fixed Lens

Capture Indoor And Outdoor Activity In High Definition

Improve the security surveillance around your property by capturing HD quality footage with the Uniview 5MP HD Eyeball Network Fixed Dome Camera, 2.8mm Lens. This fixed network dome camera supports Ultra 265, H.265, H.264, MJPEG compression formats and captures high quality footage using a 5MP, 1/2.7-inch CMOS sensor, making it ideal for both indoor and outdoor settings. It features 120dB true WDR and Colorhunter technologies to ensure optimal, full-color image quality is captured in low light environments. Monitor narrow vertical areas such as hallways or aisles through the camera's 9:16 Corridor Mode, which allows you to change the camera's aspect ratio from 16:9 to 9:16. It also comes with a built-in microphone so you can have audio recordings of the captured footage, allowing you to not only see what is happening but hear the audio to aid in investigating and understanding the recorded video.

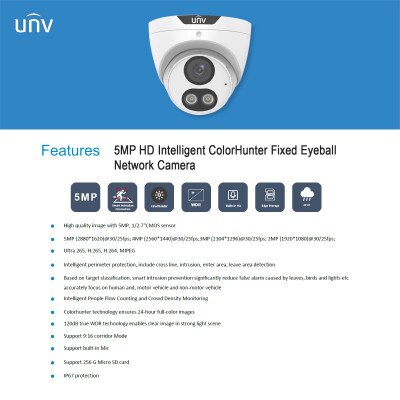

• Surveillance dome camera supports up to 5MP (2880 x 1620 @25fps) and Ultra 265, H.265, H.264, MJPEG compression
• ColorHunter technology ensures full-color image quality in low, ultra-dark environments
• Supports 9:16 Corridor Mode for 9:16 aspect ratio, vertical view monitoring
• IP67 rated for weather resistant outdoor use
• Powered via DC 12V(±25%) or PoE connection
• Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software

When connected to a compatible NVR, this Uniview 5MP Camera is designed to support advanced smart intrusion prevention technology to offer precise false alarm filtering and detection features for Line Crossing, Intrusion, Region Entrance, and Region Exit. It provides statistical analysis tools, which include People Counting, Tripwire People Counting, and Area People Counting so that you can see where people enter and exit the most in a monitored area, helping to analyze the footage so you can determine where you might want to provide additional security. Additionally, it supports detection capabilities such as Motion Detection, Ultra Motion Detection, Tampering Alarm, and Audio Detection, making this dome camera a much-needed and excellent addition to your security system.

Installation Details

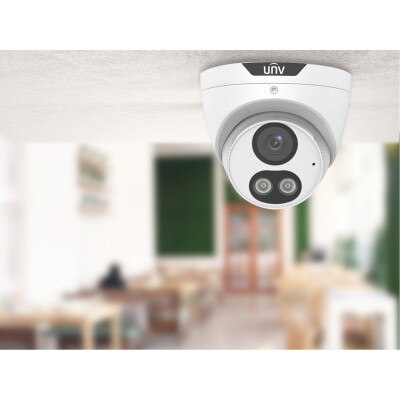

This Eyeball Network Dome Camera is weather-resistant (IP67) and can be installed outdoors or indoors. The camera is powered by DC 12V±25% or via a PoE connection to help minimize the use of power cables, making installation easier. Included is a mounting template and hardware for installation with alternative mounting options available such as wall mounting, pendant mounting, and more are available through mounting adapter accessories (sold separately).

UNV-Link

Take control of your Uniview cameras and NVRs with the UNV-Lin application for iOS and Android. The UNV-Link app aims to enhance the daily experience of end users by providing convenient access to live view, playback and alarms. This all-in-one app offers the power of 24/7 monitoring, intrusion alarms, and video intercom functionality.

Contents

• Dome Camera
• Mounting Hardware
• Manual

Notes

• This device supports viewing and management via a web browser on a PC.
• Compatible network video recorders (NVR) sold separately.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: IPC3615SE-ADF28KM-WL-I0
• UPC: 810093320745

Camera

• Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS
• Minimum illumination: Colour: 0.001Lux (F1.0, AGC ON)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment Angle:
• Pan: 3° ~ 360°
• Tilt: 0° ~ 80°
• Rotate: 3° ~ 360°
• WDR (Wide Dynamic Range): 120dB
• S/N: >56dB

Lens

• Lens Type: 2.8mm@F1.0
• Angle of View: H: 102.0° V: 53.4° D: 121.0°

DORI

• Lens (mm): 2.8
• Detect (m): 63.0
• Observe (m): 25.2
• Recognize (m): 12.6
• Identify (m): 6.3

Illuminator

• LED Distance: Up to 30m (98ft)
• LED Number: 2
• LED On/Off Control: Auto/Manual

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• Resolution: 5MP@25fps: 2880(H) x 1620(V); 5MP@20fps: 2592(H) x 1944(V); 5MP@12.5fps: 2592(H) x 1944(V); 4MP: 2560(H) x 1440(V); 1080P: 1920(H) x 1080(V)
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
• Main Stream: 5MP (2880x1620), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 2MP (1920x1080), Max 30fps; 720P(1280x720), Max 30fps
• Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps;
• Third Stream: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• ROI: Up to 8 areas
• Video Stream: Triple streams
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas


• White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
• Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
• Digital Noise Reduction: 2D/3D DNR
• Smart Illumination: Support
• Flip: Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Intelligent

• Smart Intrusion Prevention: Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
• Statistical Analysis: People counting, support tripwire people counting and area people counting

Events

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
• General Function: Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Suppression: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• Client:
• EZStation
• EZView
• EZLive
• Web Browser:
• Plug-in Required Live View: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Plug-in Free Live View: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Audio I/O: N/A
• Alarm I/O: N/A
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• Wi-Fi: N/A
• Network: 1 RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

General

• Power:
• DC 12V±25%, PoE (IEEE 802.3af)
• Power Consumption: Max 7.5W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Ø4.4 x 3.7 inches (♦110.5 x 94.1mm)
• Weight: 0.97lb (0.44kg)
• Material: Metal
• Working Environment:
• -22° F to 140° F (-30° C to 60° C)
• Humidity: ≤ 95% RH (non-condensing)
• Storage Environment:
• -22° F to 140° F (-30° C to 60° C)
• Humidity: ≤ 95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: N/A

Certifications

• EMC:
• FCC CFR 47 Part 15
• EN 55032:2015
• EN 55024:2010
• EN 61000-3-2:2014
• EN 61000-3-3-2013
• Safety:
• IEC 62368-1
• EN 62368-1
• UL 62368-1
• Environment: CE-ROHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
• Protection: Ingression protection: IP67 (IEC 60529-2013)
