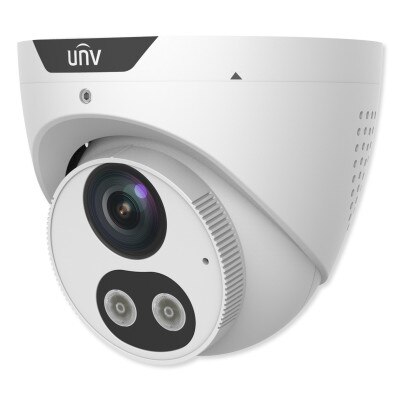

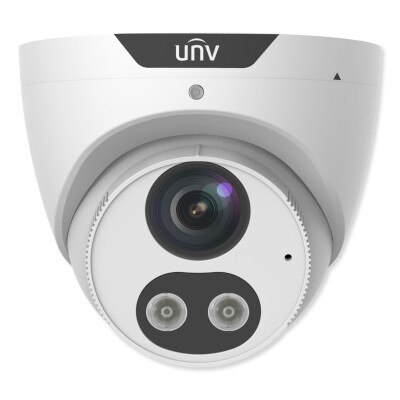

Uniview 4MP HD Tri-Guard Dual-Light Turret Camera, 2.8mm Fixed Lens

Capture Indoor/Outdoor Footage In HD Resolution

Give your security system an upgrade by adding HD-quality surveillance to your property with the Uniview 4MP HD Tri-Guard Dual-Light Turret Camera, 2.8mm Fixed Lens. Designed with a slightly larger form factor than a dome camera, this turret camera has a more flexible mounting system, giving it an easier way to adjust the lens in any direction. This camera supports Ultra 265, H.265, H.264, MJPEG compression formats and captures HD quality footage with a 5MP, 1/2.7-inch CMOS sensor. It features UNV Tri-Guard technology to eliminate the lack of color image information from a dark environment as well as false alarm triggers that typically occur from birds, dogs, and fallen leaves. UNV Tri-Guard integrates Smart Intrusion Prevention (SIP), ColorHunter, and Active Deterrence technologies to help prevent crimes at night or in other dark locations and only triggers alerts when an actual event occurs. Additionally, this turret camera comes with Dual-Lights built-in, which means it has one infrared light (IR) and one LED light (White Light). These lights switch between night vision mode and a color-illuminated mode to provide clear color footage with less light pollution.

The Uniview 4MP Turret Camera supports 9:16 Corridor Mode, which will allow you to monitor narrow vertical areas such as aisles and hallways because you'll be able to change the camera's aspect ratio from 16:9 to 9:16. It also comes with a built-in microphone and speaker to allow conversations with monitored subjects and to capture audio recordings of the footage. For example, you may want to tell an unwanted intruder to leave your property or instruct delivery personnel to leave the package at the door; and by having recorded audio it will aid in investigating and understanding the recorded video.

• Surveillance turret camera supports up to 4MP (2688x1520 @30fps) and Ultra 265, H.265, H.264, MJPEG compression
• Tri-Guard technology reduces false alarm triggers and ensures full-color image quality at night
• Vertical view monitoring with 9:16 Corridor Mode changes aspect ratio from 16:9 to 9:16
• Durable with IP67 rating for weather resistant outdoor use
• Powered via DC 12V(±25%) or PoE connection
• Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software

When connected to a compatible NVR, this Uniview 4MP Camera is designed to support advanced smart intrusion prevention technology to offer precise false alarm filtering and detection features for Cross Line, Intrusion, Enter Area, and Leave Area. It provides support for People Flow Counting and Crowd Density Monitoring so that you can see where people enter and exit as well as where people tend to congregate the most in a monitored area, helping to analyze the footage so you can determine where you might want to provide extra security. Additionally, it supports detection capabilities such as Motion Detection, Ultra Motion Detection, Tampering Alarm, and Audio Detection, making this turret camera a much-needed and excellent addition to your security system.

Installation Details

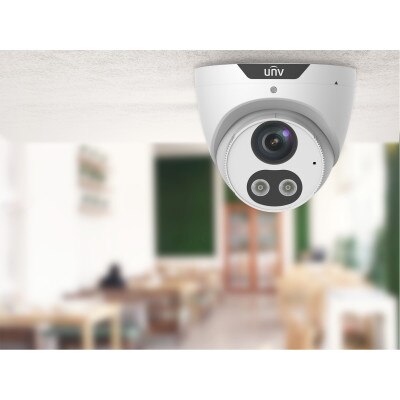

This Turret Camera is weather-resistant (IP67) and can be installed outdoors or indoors. The camera is powered by DC 12V±25% or via a PoE connection. Included is a mounting template and hardware for installation with alternative mounting options available such as wall mounting, poll mounting, and more are available through mounting adapter accessories (sold separately).

UNV-Link

Take control of your Uniview cameras and NVRs with the UNV-Lin application for iOS and Android. The UNV-Link app aims to enhance the daily experience of end users by providing convenient access to live view, playback and alarms. This all-in-one app offers the power of 24/7 monitoring, intrusion alarms, and video intercom functionality.

Contents

• Turret Camera
• Mounting Hardware
• Manual

Notes

• This device supports viewing and management via a web browser on a PC.
• Compatible network video recorders (NVR) sold separately.

Uniview – A Global Provider of Security and AIoT Solutions

Uniview aspires to provide excellent product performance at an affordable price. As a leading security camera service provider, Uniview can meet any security needs across different indoor or outdoor scenarios. Their high quality security cameras render images even in low illumination environments and utilize smart security functions based on video content analytics, while minimizing bandwidth and storage. Uniview creates IP cameras, NVRs, Encoders, Decoders, storage devices, and client software including their UNV-Link app. Uniview evolves their hardware and software products by taking into consideration AIoT (Artificial intelligence of things), Cloud networking, and Internet of Things infrastructure.

• Manufacturer Part #: IPC3614SB-ADF28KMC-I0
• UPC: 810093320370

Camera

• Max Resolution: 4MP
• Sensor: 1/2.7" CMOS
• Minimum illumination:
• Colour: 0.002 lux ( F1.6, AGC ON)
• 0 Lux with light
• Shutter: Auto/Manual, 1 to 1/100000s
• Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 80°
• Rotate: 0° to 360°
• WDR (Wide Dynamic Range): 120dB
• S/N: >52dB

Lens

• Focal Length: 2.8mm
• Iris Type: Fixed
• Iris: F1.6
• Field of View (H): 101.1°
• Field of View (V): 55.3°
• Field of View (D): 111.1°
• Lens Type: Fixed

DORI

• Lens (mm): 2.8
• Detect (m): 63.0 (206.7ft)
• Observe (m): 25.2 (82.7ft)
• Recognize (m): 12.6 (41.3ft)
• Identify (m): 6.3 (20.7ft)

Illuminator

• Supplemental Light: Dual light
• Illumination Distance (IR): 30 m (98.4 ft)
• Illumination Distance (Warm Light): 30 m (98.4 ft)
• Light On/Off Control: Auto/Manual
• Wavelength: 850 nm

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• H.264 Code Profile: Baseline profile, Main profile, High profile
• Frame Rate:
• Main Stream: 4MP (2688x1520), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps
• Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps
• Third Stream: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps
• Video Bit Rate: 128 Kbps to 16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Support
• Video Stream: Triple streams


• White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart IR: Support
• Flip: Normal, Flip Vertical, Flip Horizontal, 180° , 90° Clockwise, 90° Anti-clockwise
• Dewarping: N/A
• HLC: Support
• BLC: Support
• Defog: Digital Defog

Intelligent

• Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
• Statistical Analysis: N/A
• People Counting: Support People Flow Counting and Crowd Density Monitoring

Events

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
• General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Audio

• Audio Compression: G.711U, G.711A
• Audio Bitrate: 64 Kbps
• Two-Way Audio: Support
• Suppression: Support
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 512 GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
• Client: UNV-Link, UNV-Link Pro, EZStation
• Web Browser:
• Plug-in Required Live View: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
• Plug-in Free Live View: Chrome 57+, Firefox 58+, Edge 16+

Interface

• Audio I/O: N/A
• Alarm I/O: N/A
• Serial Port: N/A
• Built-in Mic: Support
• Built-in Speaker: Support
• Wi-Fi: N/A
• Network: 1 RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)
• Power Consumption: Max 7.5W
• Power Interface: Ø5.5 mm coaxial power plug
• Dimensions: Ø4.4 x 3.7 inches (Ø111 x 95mm)
• Weight: 0.97lb (0.44kg)
• Material: Metal
• Working Environment:
• -22° F to 140° F (-30° C to 60° C)
• Humidity: ≤ 95% RH (non-condensing)
• Storage Environment:
• -22° F to 140° F (-30° C to 60° C)
• Humidity: ≤ 95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: N/A
• Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese

Certifications

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
• Safety:
• CE LVD (EN 62368-1)
• CB (IEC 62368-1)
• UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
• Protection: IP67 (IEC 60529)
