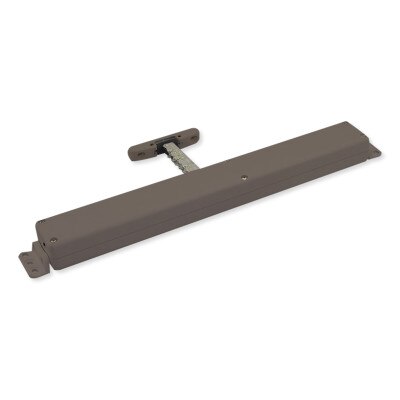

Truth Marvel Power Window System, Bronze

SKU: TR429003100

Usually ships in 3-5 days.

$954.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Add Motorized Operation To Windows & Skylights

Easily open large and heavy windows or skylights with the push of a button with the Truth Marvel Power Window System, Bronze. This motorized operator opens and closes awning windows and skylights weighing up to 90lbs. The operator opens and closes windows with a double central link chain that is controlled by a hardwired in-wall switch or a wireless remote control and receiver pack (Truth Marvel Handheld Remote (42.90.00.201) and Truth Marvel RF Receiver Pack (42.90.00.300), both sold separately). The Marvel system is simple to install, easy to operate, and affordable to own so you can enjoy a simple and automated home lifestyle.

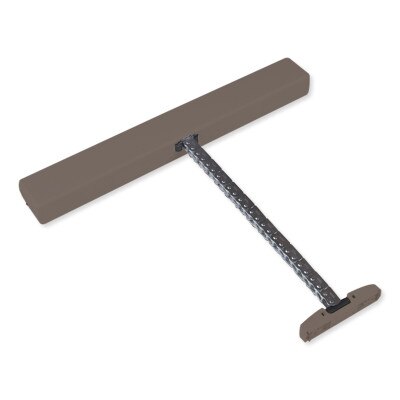

  • Motorized operator opens/closes windows and skylights with durable 9.5" double link chain
  • Capable of lifting awning windows and skylights weighing up to 90 lbs.
  • Controlled by single momentary contact switch or with Truth Marvel Handheld Remote (42.90.00.201) and Truth Marvel RF Receiver Pack (42.90.00.300) (both sold separately)
  • Three mounting bracket styles for easy mounting
  • Operates using 110V current; no transformer required
  • Users can operate multiple Marvel motors from one manual contact switch

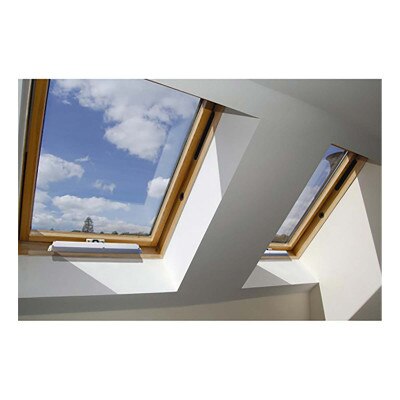

The Marvel Power Window System can be face-mounted or placed onto framed installations with sills. The Marvel System is designed to be installed with a properly-aligned counterbalance hinge such as Truth Hardware's 13 series or 34 series bar hinges for Truth Hardware compatible awning windows. For compatible skylight installations, the Marvel system is designed to be installed on push-to-open, pull-to-close skylights that weigh up to 90 pounds.

Contents

  • Marvel Power Window Motor
  • Mounting Brackets
  • Mounting Hardware
  • Power Cord

Notes

Complete Window Automation From Truth Hardware

The built-in flexibility of the Truth Marvel Power Window System allows for a variety of window and skylight installation options. Low cost, wired or wireless control, the Truth Marvel Power Window System can be tailored to meet specific needs.

Specifications

  • Manufacturer Part #: 42.90.03.100
  • Amperage Draw: 120 V; 60 Hz
    • 0.12 amp draw at a 45 lb load
    • 0.040 amp draw at 0 lb load
  • Input Voltage: 80V-260V at 50-60 Hz
  • Operating Temperature: -5°F to 140°F (-20°C to 60°C)
  • Dimensions: Case: 14-1/4 (L) x 1-7/8 (W) x 1-5/16 (D) inches
  • Approvals: ANSI/UL 325 Certified and CAN/CSA C22.2 Certified
  • Warranty: 1 Year

Downloads

»Truth Hardware Marvel Brochure (.pdf)
»Truth Hardware Marvel RF Motor Control Pack and Rain Sensor Installation Manual (.pdf)
»Truth Hardware Marvel Motorization System Installation Manual (.pdf)
»Truth Hardware Marvel Power Window System User Manual (.pdf)
