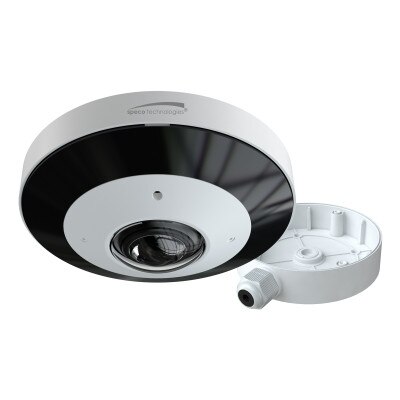

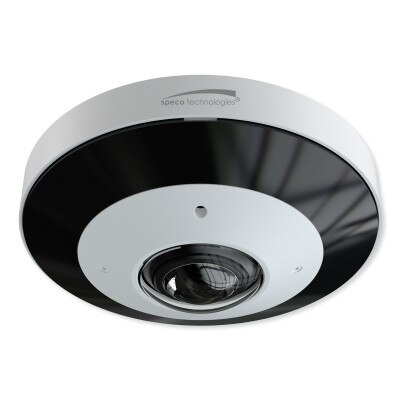

Speco 6MP IP Indoor/Outdoor 360° Fisheye Camera with Junction Box
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
View 360° Panoramic Footage In High Definition
Easily capture high-quality footage of a wide area with the Speco 6MP IP Indoor/Outdoor 360° Fisheye Camera with 1.65mm Lens. This fisheye camera offers a 360° panoramic view when mounted on the ceiling and provides a 180° view when mounted on a wall. It captures footage in 2160 x 2160 resolution at 30fps through a single fisheye lens and supports H.265/H.264/MJPEG compression formats. It has an IR range of up to 100 feet, offers Smart IR to maintain clear images in dark or well lit environments, and provides true WDR (wide dynamic range) operation for image compensation in high contrast areas to prevent the image from being washed out. When connected to a Speco NVR with Speco Blue software (sold separately), the camera provides De-Warp views, eliminating the barrel distortion typically caused by the fisheye lens to make footage easier to analyze. The Speco 6MP IP Indoor/Outdoor 360° Fisheye Camera is also well built for long-lasting use thanks to its IP67 compliant weather resistant design which enables it to operate in -40°F temperatures, making it ideal for freezing temperatures. To make installation easier, the camera has built-in standard PoE to help minimize the use of power cables.
- 1.65mm fisheye lens captures HD resolution (2160 x 2160 @ 30fps) and supports H.265, H.264, MJPEG codecs

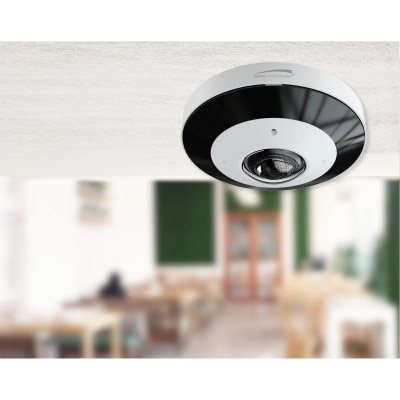

- Provides a 360° view from the ceiling or 180° view when mounted on a wall
- True WDR (Wide Dynamic Range) for image compensation in high contrast areas
- Smart IR for clear nighttime images with IR range up to 100 feet
- Micro SD card slot up to 256GB (card not included)
- Weather-resistant IP67 rated for durable use and built-in PoE standard (IEEE 802.3af)
Installation Details
This IP Fisheye Camera can be installed outdoors or indoors and is IP67 rated for weather resistance. A mounting template and hardware are also included for accurate installation and the camera can be powered by a 12VDC power supply or by Power over Ethernet (all power supply devices sold separately).
Easy Access To Footage Via Mobile App
View live and stored video from anywhere, anytime through the free SecureGuard or Speco Blue mobile apps for iOS and Android devices. When the camera is connected to a compatible Speco recorder, you'll be able to view live video footage as well as playback, pause, rewind, and fast forward recorded footage using a smartphone or tablet. This allows you to monitor your home from any location with an Internet connection, all from the palm of your hand.
Contents
- Fisheye Camera

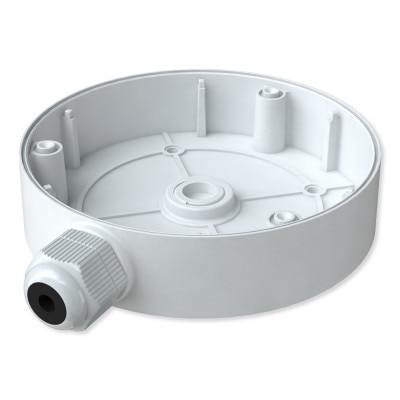

- Junction Box
- Installation Hardware
- Software CD (PC)
- Quick Start Guide
Notes
- This device supports viewing and management via a web browser on a PC.
- 12VDC Power Supply not included (uses PoE as standard).
- Speco network video recorders (NVR) and Speco Blue Recorders sold separately.
IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.
Commercial & Residential Solutions From Speco
Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed-circuit video, and electronic accessories. Contractors, installers, builders, engineers, architects, and homeowners rely on Speco products to satisfy both their commercial and residential needs.
Specifications
- Manufacturer Part #: O6MDP4
- UPC: 030519045476
- Image Sensor: Progressive scan 1/2.5" CMOS, 6MP
- Field of View: 180° (wall mounted); 360° (ceiling mounted)
- Minimum Illumination: 0.01 lux @ F2.0, AGC ON; 0 lux with IR
- Day/Night: Smart IR
- White Balance: Auto, Indoor, Outdoor, Manual
- Compensation: True WDR, BLC, HLC
- Day/Night: White LED
- Electronic Shutter Speed: 1/3 ~ 1/100000s
- DNR: 3D DNR
- Main Resolution (Mode 1):
- Fisheye + Panoramic + 3 PTZ
- Fisheye view: 2160x2160, 1440x1440 (@ 30fps)
- Panoramic view: 3200x1800, 1920x1080 (@ 30fps)
- 3PTZ view: 1280x720 *3 (@ 15fps)
- Main Resolution (Mode 2):
- Fisheye + 4 PTZ
- Fisheye view: 2160x2160, 1440x1440 (@ 30fps)
- 4PTZ view: 1280x720 *4 (@ 15fps)
- Main Resolution (Mode 3):
- Fisheye + 4 PTZ Fusion
- Fisheye view: 2160x2160, 1440x1440 (@ 30fps)
- 4PTZ fusion view: 1280x720 (@ 20fps)
- Compression: H.265, H.264, MJPEG
- Bitrate Control: VBR, CBR (64Kbps ~ 10Mbps)
- Multiple Streaming: 2 streams
- Audio Compression: G.711A/G7.11U
- Audio In/Out: 2-way audio capable ready
- Protocols: UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, QoS, HTTP Post
- DDNS Support: Speco DDNS (free of charge)
- Security: User ID & Password protection, IP/MAC address filtering, digest authentication
- User Access: Max. 6 simultaneous users. Actual number of users may vary depending on bandwidth
- PoE: Standard (IEEE 802.3af)
- Alarm Triggers: Motion detection, sensor alarm
- Alarm Events: MicroSD recording, FTP upload
- Image Settings: Region of interest, saturation, brightness, chroma, contrast, noise reduction
- Ethernet: 10/100 Mbps
- Power: DC jack
- Audio Output: 3.5mm
- Microphone Input: 3.5mm + 2 Ch built-in mic
- Card Slot: MicroSD, up to 256GB (not included)
- Alarm: 1 Ch alarm input; 1 Ch alarm output
- Video Output: CVBS output (BNC x 1)
- Other: RS 485 (PTZ Control)
- Reset: Yes
- Web Browser Support: Chrome, Edge, Safari, Firefox, Windows (Internet Explorer 8 and up)
- PC Application: Speco Blue VMS
- Mobile: Speco Blue (iPhone® and Android™)
- Power: PoE, 12VDC (power supply not included)
- Power Consumption: 10W (max)
- Operating Temperature: -40°F ~ 140°F
- Operating Humidity: Less than 95 % (non-condensing)
- Unit Dimensions: 5.11(Dia.) x 1.82(H) inches (130 x 46mm)
- Unit Weight: 1.13 lb.
- Certifications: FCC, RoHS
