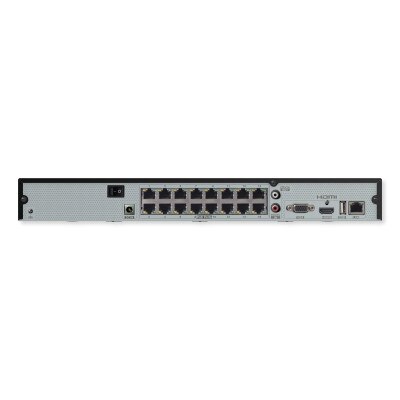

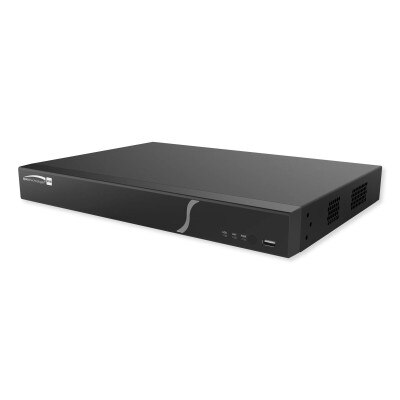

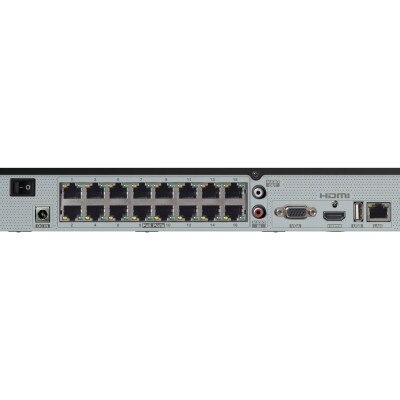

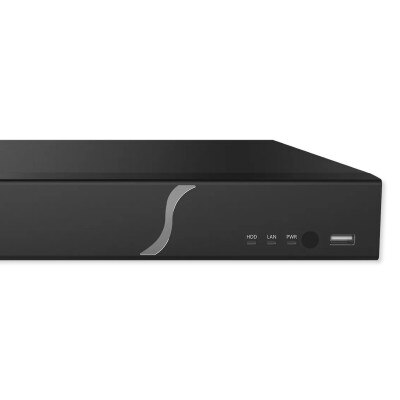

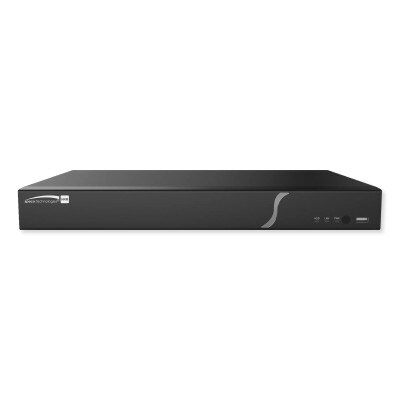

Speco 4K H.265 NVR with Smart Analytics, 16 Channel with 16 Built-In PoE Ports

Save and Review UHD Footage From 16 Cameras

Quickly build a surveillance network of PoE compatible cameras with the Speco 4K H.265 NVR with Smart Analytics 16 Channel with 16 Built-In PoE Ports. This network video recorder (NVR) records and saves surveillance footage in resolutions between 720p to 4K captured from up to 16 connected IP cameras in indoor or outdoor environments. This NVR features Smart Analytics and Facial Detection software that improves security and playback functionality by easily locating specific recordings and identifying subjects and events seen by your connected security cameras. Smart Analytics features can only be utilized when cameras that support those features are connected to the NVR. This NVR also includes 2 SATA ports to connect to an external storage device or to another NVR with up to 40TB of storage space to greatly expand the size of your surveillance network.

• Network video recorder captures UHD footage from up to 16 compatible PoE IP cameras
• Supports real time recording and playback in resolutions between 720p and 8MP (3840 x 2160)
• Max resolution 8MP and lower records and playback at 30fps
• H.265 compression stores up to 2x more footage than H.264
• Allows for remote monitoring, configuration, PTZ control via web browser
• Smart Analytics improve saved footage with smart playback functionality including Facial Detection, line crossing, people and more
• Supports VGA and 4K HDMI video outputs
• Allows for remote monitoring, configuration, PTZ control via web browser
• Mobile viewing with Speco SecureGuard and Speco Blue mobile apps

The NVR supports up to 8MP resolution (3840 x 2160) and can record HD footage up to 160 Mbps across all 16 channels. Built-in S.M.A.R.T. technology enables self-monitoring, analysis and reporting for the NVR's HDD. In case of network interruption or connection loss, the NVR can automatically record footage to inserted USB drives and transfer files back to the NVR when connection is restored.

This NVR supports Smart Analytics software, dramatically improving the quality of your surveillance network and captured footage. Smart Analytics software simplifies reviewing saved footage for specialized surveillance tasks. By connecting a Speco Analytic camera to the NVR, you can review footage through the Speco management portal using Smart Playback functions, such as drawing a line or box across a specific area of a recording in order to rapidly search for activity within the selected area. Additionally, this NVR is compatible with cameras that use Facial Detection technology, enabling you to catalogue and identify images of subjects seen within your surveillance network for more efficient reviewing of recorded footage.

Built-In Hard Drive for Convenient Storage

Each NVR comes equipped with a pre-installed multi-terabyte hard drive to store recorded video and audio and employs H.265 compression for optimized storage. Its HDD storage can also be optimized by switching between low- and high-quality streaming during simultaneous "Continuous + Sensor" or "Continuous + Motion" modes.

Easy Access To Footage Via Mobile App

View live and stored video from anywhere, anytime through the free SecureGuard or Speco Blue mobile apps for iOS and Android devices. From your smart mobile device, you'll be able to view live video footage as well as playback, pause, rewind, and fast forward recorded footage. This allows you to monitor your home from any location with an Internet connection no matter your location.

The NVR has "EZ Wizard" functions for quick installation.

• EZ Wizards: For the Quickest Use & Installation
• Camera: Quickly discovers and installs all Speco IP cameras
• Setup: For quick system setup
• Network: Network setup and port forwarding
• Record: Quickly setup recording resolutions and recording type
• EZ Search 2.0: Quickly search events from thumbnails
• EZ Copy: Auto copy what you are playing onto a USB flash drive
• EZ Mobile: Easy Mobile Setup for viewing on desktop or mobile apps

A web-enabled PC or MAC computer is required to operate the NVR. You can access the network via Speco One and SureGuard VMS, and supported Internet browsers.

Installation Details

The NVR can be placed on a tabletop or rack mounted. Once camera connections are set up, use the EZ Wizard tools to quickly set up your surveillance system. The NVR connects to the Internet to provide remote management and access to the system and enables you to playback footage, adjust settings, and monitor connected cameras from any Internet enabled device.

Contents

• NVR Unit
• Power Cable
• Ethernet Cable
• Software CD
• Optical Mouse
• Quick Start Guide

Notes

• Hard drives not covered by 5-year warranty.
• USB device not included.
• Facial Detection and Smart Analytics require Speco Facial Detection or Analytic Cameras connected to the NVR, both sold separately.

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers, architects and homeowners rely on Speco products to satisfy both their commercial and residential needs.

• Manufacturer Part #:
• N16NRM4TB: 4 TB
• N16NRM6TB: 6 TB
• N16NRM8TB: 8 TB
• N16NRM12TB: 12 TB
• N16NRM24TB: 24 TB
• UPC:
• N16NRM4TB: 030519045919
• N16NRM6TB: 030519045926
• N16NRM8TB: 030519045933
• N16NRM12TB: 030519045940
• N16NRM24TB: 030519045964

Video

• Input: 16 channels
• IP Camera: H.264/H.265 Auto Detection (Max. 8MP)
• Output: Main Monitor:
• HDMI: Max. 4K (2160p)
• VGA: Max Full HD (1080p)

Audio

• Network Input: 16 Ch. IPC audio input
• Local Input: RCA x 1
• Local Output: RCA x 1

Recording

• Endcoding Resolution: 8MP (4K) / 6MP / 4MP / 3MP / 1080p / 720p / 960H / DH / CIF
• Codec: H.264/H.265 Auto Detection
• Max Frame Rate per Channel: Any resolution @ 30fps
• Recording Mode: Analytics / Continuous / Motion / Sensor / Schedule / Manual
• Pre/Post Recording: Max 5 seconds/ Max 10 minutes

Search & Playback

• Search Modes: EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log
• Simultaneous Playback: Max 16 Channels
• Smart Search: Highlighted color to display camera records in a certain period of time, different colors refer to different record events
• Playback Resolutions: 1 x 8MP @ 30 FPS, 6 x 1080P @ 30 FPS
• Playback Functions: Play, pause, fast forward, rewind, digital zoom, etc.

Backup

• Media: USB Flash Drive, Network
• File Format: MP4, JPG, AVI, proprietary format (includes player)

Storage

• HDD: Interface Type: SATA II
• Max Capacity of Each HDD: 40TB
• Internal SATA ports: 2
• USB Ports:
• Front: 1 USB 2.0
• Rear: 1 USB 2.0

Alarm

• Mode: Manual, sensor, motion, exception, intelligence
• Input: IPC alarm in
• Output: IPC alarm out
• Linkage: Record/Snapshot/Preset/Email/Pop-up Window

User I/F

• Input Method: IR Remote, Mouse

Network

• Bandwidth: 160Mbps
• P2P/Dynamic DNS: Free US-Based Speco P2P and DDNS Service
• Protocols: TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP

Network Access

• Mobile Client: iOS/Android via Speco Blue App, SecureGuard® Client
• Web Viewer: Google Chrome®, Microsoft Edge®, Firefox®
• VMS/CMS: Speco Blue VMS, SecureGuard®
• User Access: Max 64 users online

Features

• Digital Zoom: Live and Playback, Free Size
• S.M.A.R.T.: Temperature, Power On Time, Bad Sectors, and Health

Smart Analytics

• Face, People, Vehicle Detection: Supported through all 16 channels
• License Plate Recognition: Supported through all 16 channels

Power

• Power Consumption: ≤ 10W (without HDD)
• PoE Ports: 16
• Power per PoE Port Max: 30W
• Total PoE Power Budget: 150W

Environmental & Physical

• Operating Temperature: 14°F to 122°F (-10° to 50°C)
• Relative Humidity: 10 to 90 percent RH
• Dimensions: 15 (W) x 10.6 (H) x 1.8 (D) inches (380 x 268 x 45 mm)
• Warranty: 5-Year Limited, Hard Drives Excluded
