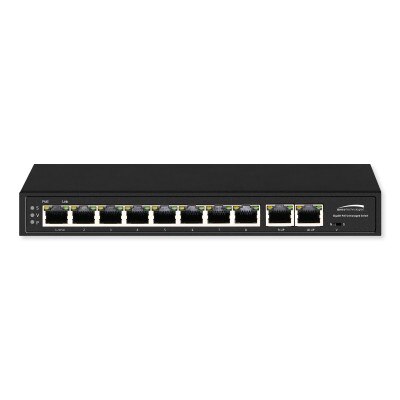

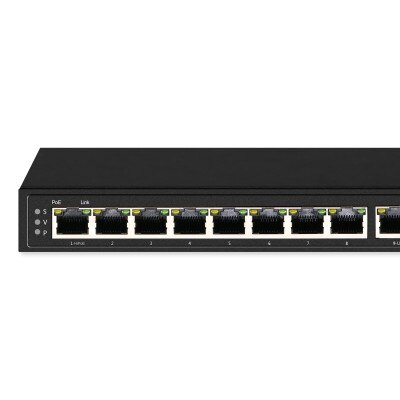

Speco 10-Port Gigabit Network Switch (8 PoE Ports, 2 Ports Uplink)

Power And Connect Up To 9 PoE Devices

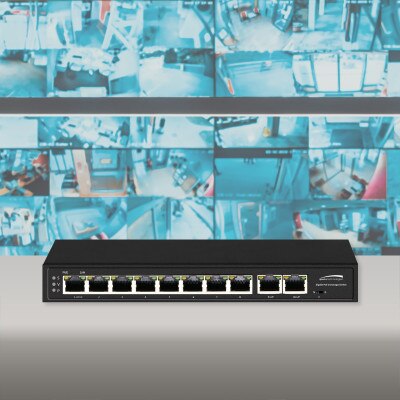

Power and connect up to 9 PoE/PSE devices using the Speco 9-Port Gigabit Network Switch. This Gigabit Ethernet switch delivers power and lightning fast data transfer speeds to up to 8 Ethernet-connected devices. This rack-mounting switch is designed to support medium-to-large data and/or surveillance networks and applications. Each PoE port handles up to 30 Watts of power (max.), with a total power budget of 120 Watts. In addition to its 8 PoE ports, the switch also includes one Gigabit SFP uplink port for easy expansion with new or existing network switches.

• Gigabit network switch supports 9 PoE devices and 1 SFP port with up to Gigabit performance for uplinks and downlinks
• PoE watchdog mode monitors for interrupted connections and reset the port when errors are detected
• VLAN Mode isolates each PoE port connection with cameras, computers or other switches while the uplink port connects with a router to avoid signal interference, ARP spoofing, etc
• Max. 30W power allocation per PoE port with built-in surge protection
• Supports long distance transmission of up to 800ft (250m) @ 10Mbps when using Cat6 cables

Contents

• Network Switch

IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.

Commercial & Residential Solutions From Speco

Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers, architects and homeowners rely on Speco products to satisfy both their commercial and residential needs. Home Controls is an authorized Speco distributor, ensuring customers obtain proper support and service.

• Manufacturer Part #: P8S10G
• UPC: 030519040853
• Downlink Ports: 8 x 10/100/1000 Base-TX (PoE)

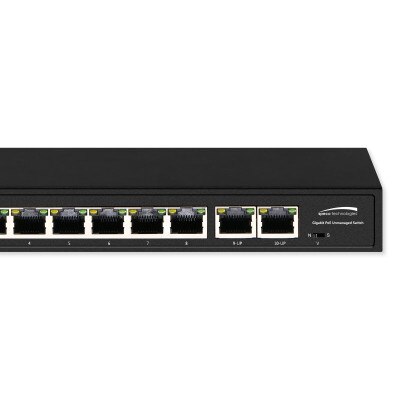

• Uplink Ports: 2 x 10/100/1000 Base TX
• PoE Standards: 802.3af/at (PSE)
• Exchange Type: Storage & Forwarding
• PoE Power Supply:
• Input AC: 100~240V 50-60Hz
• Output 52V 2.3A
• Network Standards: IEEE 802.3/IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX/IEEE 802.3x
• Ethernet Standards: IEEE 802.3af/at/PoE++
• Packet Forwarding Rate: 14Mpps
• Switch Capacity: 20 Gbps
• Throughput: 14.88Mpps
• MAC Address: 2K
• Power Consumption:
• Standby Power Consumption: ≤8W
• Full-load Power Consumption: ≤120W
• PoE Pin:
• af/at: 12 + 36-
• af/at/poe++/bt: 12 + 45 + 36 - 78-
• PoE Output:
• Single port: ≤ 30W (First Port Max 90W)
• Total for all ports: ≤ 120W

Environmental

• Operating Temperature: 14° to 131°F (-10° to 55.5°C)
• Storage Temperature: -40° to 167°F (-40° to 75°C)
• Operating Humidity (Non-Condensing): 5 to 90 percent RH

Mechanical

• Dimensions: 8.3 inches L x 5.9 inches W x 1.4 inches H (210mm x 150mm x 35mm)
• Material: Metal
• Weight: 1.8 lbs (0.8kg)

Protection Level

• ESD: Contact Discharge 6K, Air Discharge; 8KV, Per: IEC61000-4-2
• Surge Protection: 6KV (General), 4KV (Differential Mode), 8KV (ESD)

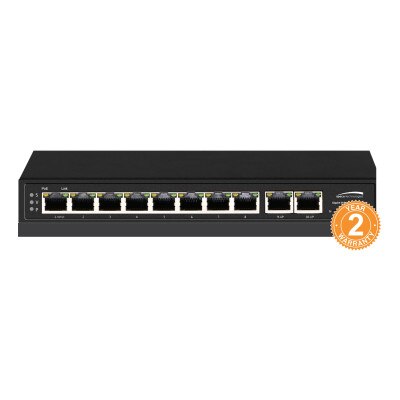

• Warranty: 2 Years
