SimplyTest SecuriTEST IP Digital, Analog, and HD Coax CCTV Tester

Test, Power, and Configure Your Security Camera System

Discover a portable essential testing kit for your security system with the SimplyTest SecuriTEST IP Digital, Analog, and HD Coax CCTV Tester! The SimplyTest SecuriTEST IP Digital, Analog, and HD Coax CCTV Tester enables installers and end users to easily troubleshoot and reconfigure individual camera settings separate from a NVR or DVR for onsite fixes. The SecuriTEST Tester is compatible with IP, Digital, Analog, PTZ, ONVIF, and non-ONVIF cameras, making it a valuable and adaptable troubleshooting tool for installers and end users. Its user interface recognizes the main settings of its connected test subject, streamlining the configuration process.

• Troubleshooting and testing kit aids in setting up surveillance cameras
• Connect to IP, Analog, PTZ, ONVIF, and non-ONVIF cameras using RJ45, Wi-Fi or BNC ports
• Power the camera with 12V barrel connector or via PoE/PoE+
• QuickIP™ and SecuriTEST functions simplify IP camera login and configuration

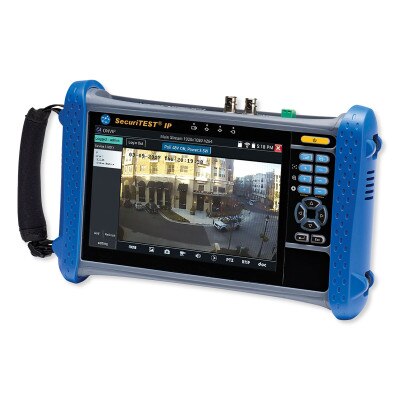

• Comprehensive camera setup with aim, focus, PTZ, presets and network settings
• Provide proof of installation with PDF reports that show camera parameters and multiple video screen-shots

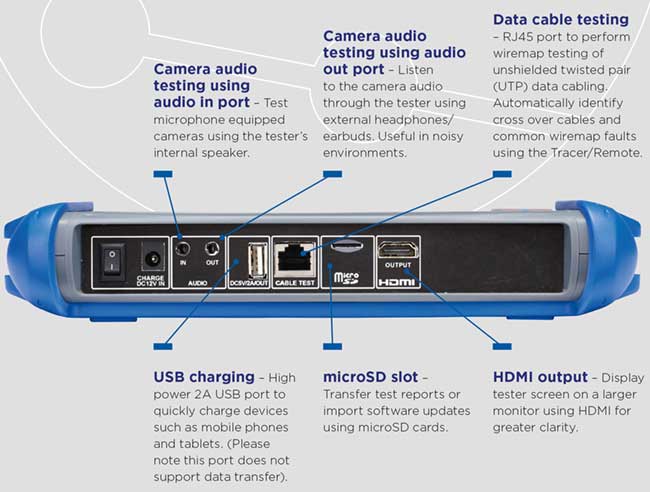

• Eliminate guesswork with data cable and network troubleshooting tools

Camera Setup

The SimplyTest SecuriTEST IP Tester assists in the setup and configuration of most camera types, providing the tools and features to simplify and speed up installation, troubleshooting, and testing. A suite of troubleshooting tools are available to pinpoint and solve network connectivity and hardware issues.

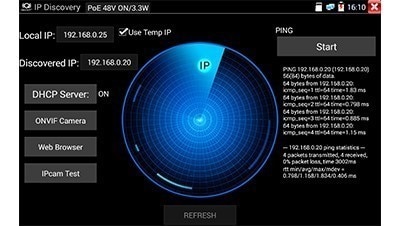

QuickIP™ automates the process of connecting to IP cameras, allowing novice technicians to configure IP cameras as easily as analog cameras. Finally, analog camera settings and PTZ protocol settings can also be configured.

• Configure Camera: Update camera information and network settings

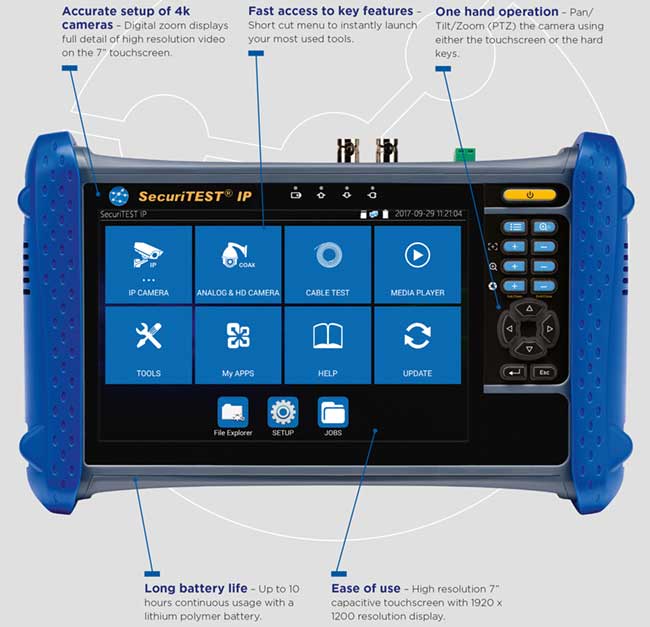

• Aim & Focus: Use the high-resolution touchscreen or the hard keys when wearing gloves
• Program Presets for PTZ Cameras: Program PTZ camera presets for users to automatically look at predefined areas
• Take a Snapshot: Save video snapshots including preset locations for your installation reports
• Record Video Clip: Record video clips to demonstrate complete coverage for PTZ cameras

The SecuriTEST IP Tester also offers a comprehensive range of ONVIF and non-ONVIF camera setup tools to ensure the camera is installed correctly. SecuriTEST IP is used in combination with the "Cable Tracer/Remote Tool" to pinpoint cabling faults such as water ingress, cross overs, miswires, shorts and opens. The length of the cabling can also be identified.

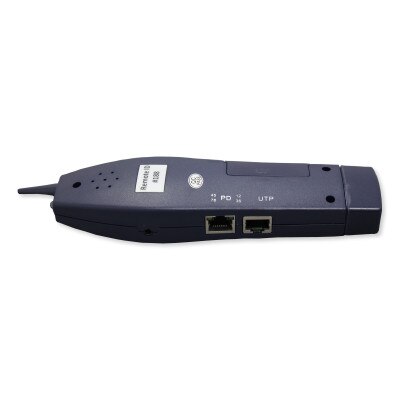

The included "Cable Tracer/Remote Tool" can also identify and trace cables using the digital tone generator. Choose from four tones and use the "Cable Tracer/Remote Tool" with variable sensitivity settings to trace either large cable bundles from a distance or pinpoint a single cable within a bundle.

The SecuriTEST IP Tester is the first camera tester to automatically document testing results and capture camera images for detailed reports. PDF reports are easily created in a professional format that installers or end-users can save, print, and digitally share.

Using the built-in Wi-Fi and the web browser, test reports can be sent directly from the Tester via email, your preferred file sharing service, or be exported on a microSD card. The tester's 18GB of combined storage, 10GB of internal memory and the included 8GB SD memory card, allows for multiple detailed reports with HD images and screenshots to be saved to the device.

Installation Details

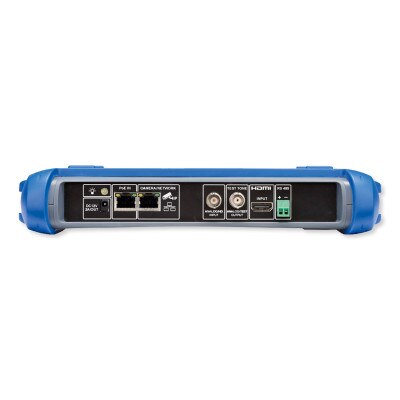

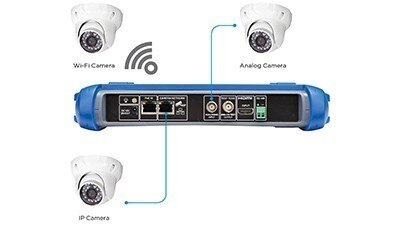

Connect to any IP or analog camera using RJ-45, BNC connections, or Wi-Fi via network.

Whether you are installing or troubleshooting cameras, SecuriTEST IP supports all your power requirements for IP and analog cameras.

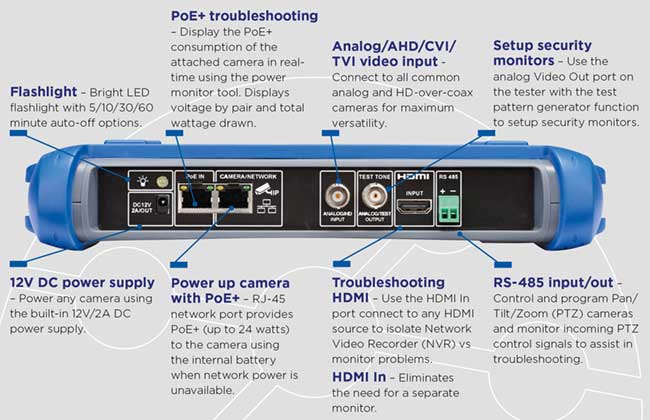

The SecuriTEST IP includes the following power outputs, ensuring you have options to provide power to both the tester and connected tested camera:

• Power over Ethernet via RJ45 output, up to 24W
• Power over Ethernet via PoE+ passthrough using both RJ45 ports
• Power via 2.5/3.5mm barrel connector while the Tester uses PoE

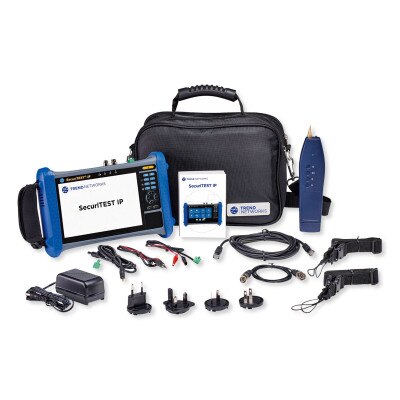

Contents

• SecuriTEST Tester
• Carrying Case with Strap
• Cable Tracer/Remote Tool
• (1) 9.84 ft DC12V 3.5(f) to 2.5(f) power cable
• (1) PSU EU/UK/US/AU adapter
• (1) 9.84 ft Cat. 5e UTP patch cable
• (1) 9.84 ft coax cable with two end BNC (m) connectors
• (1) 1.64ft RS485 cable with female green plug and two clips
• (1) 1.64ft audio male jack with other end two clips
• (1) 8GB microSD card and reader with USB adapter
• (2) RS485 female green plugs
• (2) Neck straps
• Manual

RJ45 Modular Plug Innovation and Performance Solutions

For over 20 years, Go Simply Connect™ has been a leading manufacturer in the networking industry for installing wire, cable, and field terminations. With innovative product lines that offer high-performing connectivity solutions, Go Simply Connect™ provides a slew of networking products that are used more and more in technology we use today as well as for future networking technologies that will keep everyone connected. Go Simply Connect™ provides products and experience to get the job done right, the first time.

• Manufacturer Part #: ST-171000
• UPC: 810093721191
• Internal Memory: 10GB
• Max Cable Length: 328ft
• Battery Life: Up to 10 hours
• Operating Temperature: -14 to +122°F (-25 to 50°C)
• Operating Humidity: 30% to 90% non-condensing
• Weight: 2.2 lbs
• Dimensions: 6.3 L x 9.9 W x 1.9 D inches (160.02 L x 251.46 W x 48.26 H millimeters)

»SimplyTest ST-171000 SecuriTEST IP Digital, Analog, and HD Coax CCTV Tester Spec Sheet (.pdf)
