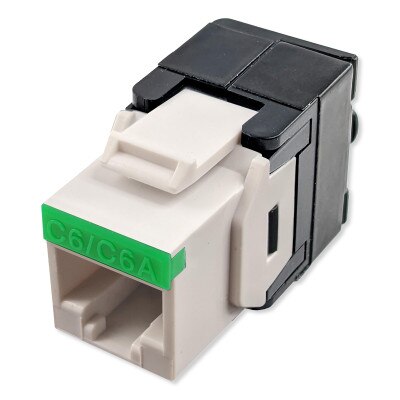

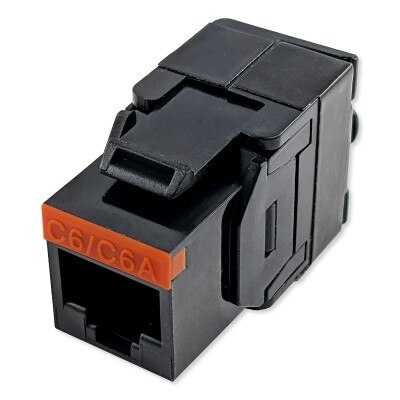

Simply45 Cat6/6A UTP 180-Degree Keystone Jack 110 Style

SKU: GSS453600x

Please Select Option To View Availability


WARNING: Cancer and Reproductive Harm –


Easily Integrate Cat6/6a Connections With No Punch Down or Special Tooling

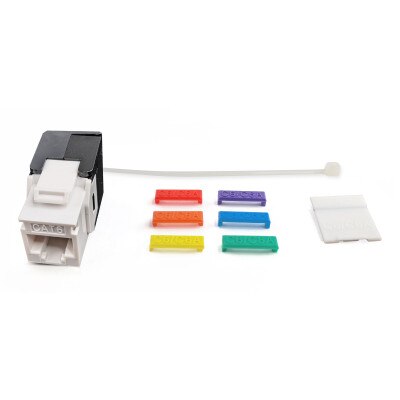

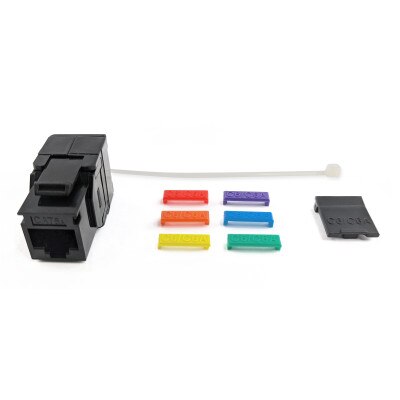

Create a custom RJ-45 Ethernet jack for use with Cat6/6a cable by installing the Simply45 Cat6/6A UTP 180-Degree Keystone Jack 110 Style. This Cat6/6a keystone jack has a narrow design, allowing for side-by-side installation in a standard patch panel. It has a 180-degree configuration for easy rear termination, enhanced alien crosstalk cancellation, and because it has a tool-less design it does not require punchdowns or speciality tooling. It comes with (6) color coded snap-on bars, a wire layout diagram, and a tooless cap to simplify termination.

  • Cat6/6a UTP cabling tool-less design for fast and easy terminations
  • Narrow design allows side-by-side patch panel installation
  • Requires no punch down or specialty tooling
  • 180-degree configuration for easy rear termination

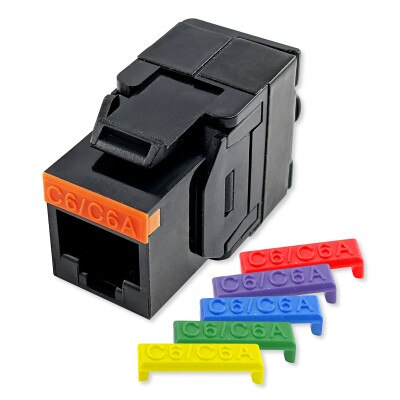

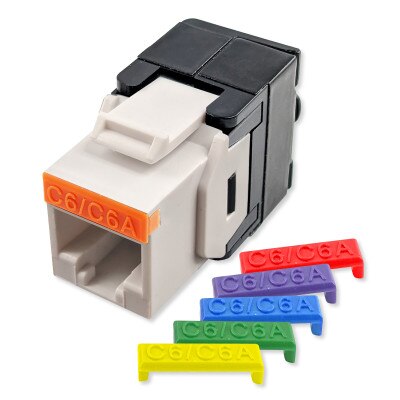

  • Includes color-coded snap-on bars


  • Simply45 Cat6/6A UTP 180-Degree Keystone Jack 110 Style

RJ45 Modular Plug Innovation and Performance Solutions

For over 20 years, Go Simply Connect™ has been a leading manufacturer in the networking industry for installing wire, cable, and field terminations. With innovative product lines that offer high-performing connectivity solutions, Go Simply Connect™ provides a slew of networking products that are used more and more in technology we use today as well as for future networking technologies that will keep everyone connected. Go Simply Connect™ provides products and experience to get the job done right, the first time.


  • Manufacturer Part #:
    • S45-3600B: Black
    • S45-3600W: White
  • UPC:
    • S45-3600B: 810093720101
    • S45-3600W: 810093720118
  • Mechanical: 23AWG Wire Conductors – Cat6a UTP; Cat6 UTP cabling
  • Plug Insertion Life: >=750 times plug in
  • Contact Force: 99.2g (3.5oz) FCC Plug
  • Plug Retention Force: 30lb (133n/13/3kg)
  • Operating Temperature: -40°F to 150°F (-40°C to 66°C)
  • Electrical: Insulation Resistance: >=500 MΩ
  • Dielectric Withstand Voltage: 100VAC RMS 60Hz
  • Contact Resistance: <=20mΩ
  • Current Rating: 1.5A at 68F
  • Contact Plating: 50μ 24ct gold
  • Dimensions: 1.4(L) x 0.8(H) x 0.6(W) inches (36.7 x 21.64 x 17.01mm)
  • Standards/Compliance:
    • ISO/IEC 11801 Class Ea, E
    • ANSI/TIA 568.2-D
    • ANSI/TIA 1096-A
    • ANSI/TIA 606-C
    • EN 50173
    • IEC 60603-7-51
    • PoE/PoH: IEEE 802.3bt Type 3, 4
    • UL 1863, cULus Listed
