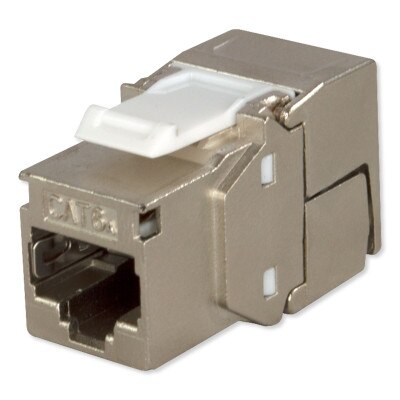

Simply45 10G Rated 180-Degree Shielded Keystone Jack

Easily Integrate Cat 7a/6a/6 Connections With No Punch Down or Special Tooling

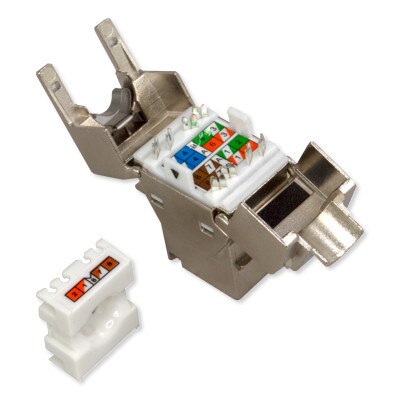

Create a custom RJ-45 Ethernet jack for use with Cat7a/6a/6 cable by installing the Simply45 10G Rated 180-Degree Shielded Keystone Jack. This 10G rated shielded keystone jack has a narrow design, allowing for side-by-side installation in a standard patch panel. It has a 180-degree configuration for easy rear termination, enhanced crosstalk cancellation, and because it has a tool-less design it does not require punchdowns or speciality tooling. It also features a fully shielded sink alloy shell for added durability and a wire layout diagram to simplify termination.

• Supports Cat7a/6a/6 shielded cabling (23 AWG)
• Narrow design allows side-by-side patch panel installation

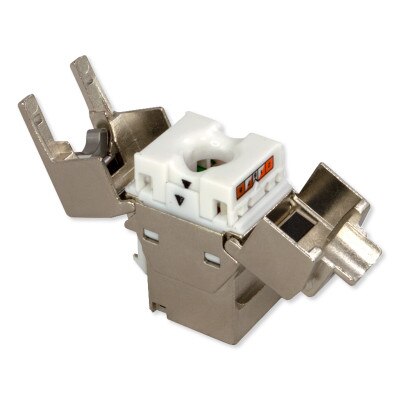

• Requires no punch down or specialty tooling

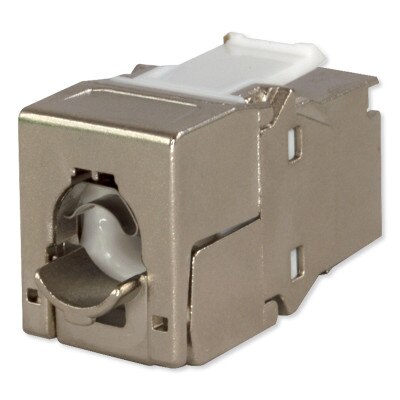

• 180-degree configuration for easy rear termination
• Fully shielded sink alloy shell for durability

Contents

• Simply45 10G Rated 180-Degree Shielded Keystone Jack

RJ45 Modular Plug Innovation and Performance Solutions

For over 20 years, Go Simply Connect™ has been a leading manufacturer in the networking industry for installing wire, cable, and field terminations. With innovative product lines that offer high-performing connectivity solutions, Go Simply Connect™ provides a slew of networking products that are used more and more in technology we use today as well as for future networking technologies that will keep everyone connected. Go Simply Connect™ provides products and experience to get the job done right, the first time.

• Manufacturer Part #: S45-3750
• UPC: 810093720125
• Mechanical: 23AWG Wire Conductors – Cat7a/6a/6 Shielded cabling
• Plug Insertion Life: >=750 times plug in
• Contact Force: 99.2g (3.5oz) FCC Plug
• Plug Retention Force: 30lb (133n/13/3kg)
• Operating Temperature: -40F to 150F (-40C to 66C)
• Electrical: Insulation Resistance: >=500 MΩ
• Dielectric Withstand Voltage: 100VAC RMS 60Hz
• Contact Resistance: <=20mΩ
• Current Rating: 1.5A at 68F
• Contact Plating: 50μ 24ct gold
• Dimensions: 1.5(L) x 1(H) x 0.7(W) inches (38.4 x 25.7 x 18.4mm)
• Standards/Compliance:
• ISO/IEC 11801 Class Ea, E
• ANSI/TIA 568.2-D
• ANSI/TIA 1096-A
• ANSI/TIA 606-C
• EN 50173
• IEC 60603-7-51
• PoE/PoH: IEEE 802.3bt Type 4
• UL 1863, cULus Listed
