Shelly Pro 4PM, Wi-Fi & Bluetooth

Add Wi-Fi and Bluetooth Connectivity to 2 Switches or Outlets

Add Wi-Fi, LAN, & Bluetooth connectivity to lights or devices controlled by up to 4 electrical loads with the Shelly Pro 4PM Wi-Fi & Bluetooth Relay Module! This 1-phase, 4-channel dry contact relay module mounts inside your breaker box to add Wi-Fi & Bluetooth remote control and energy monitoring for up to four electrical loads in your home or business. The Pro 4PM supports up to 40A for a single load or up to 16A from all four connected loads to allow you to add automated control over switches or outlets and their connected devices, appliances, computers, or large lighting installations. Once installed, the Pro 4PM can be connected to your existing smart home Wi-Fi network and enable your connected devices to respond to remote commands and automated scenes, as well as monitor energy consumption of devices connected to your selected switches or outlets.

• DIN-mountable Wi-Fi, LAN, & Bluetooth module adds On/Off commands and power monitoring to a dry contact switch or outlet
• Supports up to 40A total from a single channel or up to 16A from each channel to allow you to add appliances like computers, TVs, roller shutters, portable fans, and more to your smart home network
• Supports cover/roller control for large roller shutters, retractable awnings or curtains, motorized gates or garage doors, sliding doors, and bi-directional AC motors

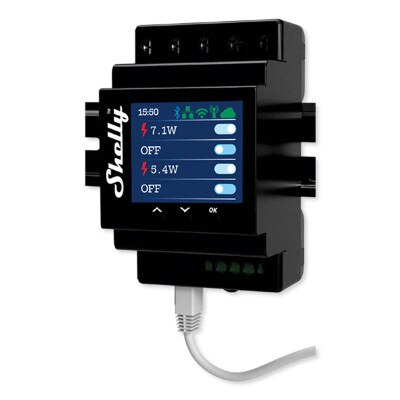

• 1.8-inch color screen with navigation keys displays connected device status, real time power usage, and network connection status
• Remotely manage and control the Shelly Pro and connected loads from the Shelly Smart Control app, no smart hub required
• Monitors and records energy consumption of devices controlled by connected switches or outlets to track activity status and optimize energy usage
• Overheat, overpower, and overvoltage protection automatically shuts off the device before voltage spikes or rapid temperature changes damage the Pro 2 or its connected devices or wiring
• Enhanced with HTTP/HTTPs webhooks, Shelly Pro devices can easily work with 3rd party electrical equipment and automation systems and follow 20 actions per week, no hub or cloud server required
• Fully supports mjS scripting and KNX integration which allows users to create their own custom features and automations
• Compatible with Google Assistant, Amazon Alexa voice assistants and Samsung SmartThings ecosystem

Three press buttons on the front plate enable users to scroll and navigate the device's menus with press and press and hold inputs. The LCD screen has a short status info bar at the top that displays the live status of the following parameters with color coded indicators: Time, LAN status, Wi-Fi STA status, Wi-Fi AP status, and Cloud network connection status. The rest of the LCD is used to display the Device menu screens:

• On/Off status for connected outputs (up to 4)
• Network status for Wi-Fi, LAN, & Bluetooth connection options
• Maintenance options, Wi-Fi reset, Factory reset, and Reboot options.

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills. Shelly devices are compatible with other most widely accepted both local and cloud based home automation platforms. A Shelly Smart Control App user account is required to access, include, and control Shelly devices through the Shelly Smart Control application and include your Shelly devices to 3rd party home automation or voice assistant platforms like SmartThings, Amazon Alexa or Google Home.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: Shelly Smart Control is natively compatible with Amazon Alexa.

Installation Details

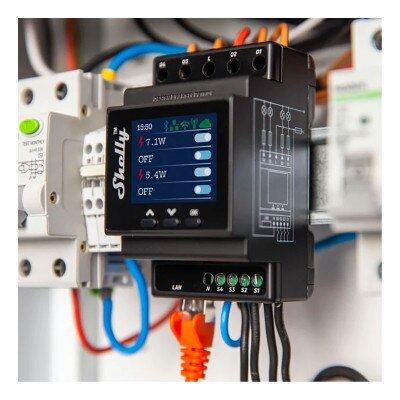

The Shelly Pro 4PM fits on a DIN rail inside a breaker box, and professional installation is required. A neutral wire is required for installation. Once connected to your Wi-Fi network or within range of a Bluetooth controller, the Pro 4PM can be included into your local compatible smart home network after it is installed.

Contents

• Pro 4PM Module
• DSK Label
• User Manual

NOTE: A neutral wire is required for installation.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: SPSW-104PE16EU
• Model Part: Pro 4PM
• EAN: 3800235268049
• Warranty: 5-Year

Radio

• RF Band: 2400 – 2495 MHz
• Max. RF Power: <20 dBm
• Wi-Fi Protocol: 802.11 b/g/n
• Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Physical

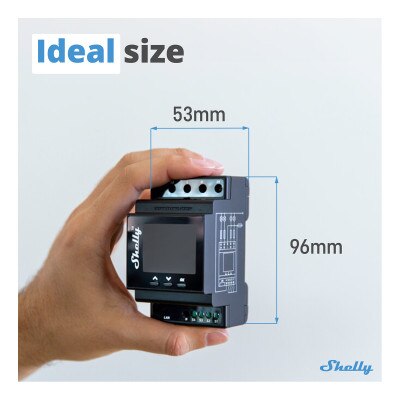

• Size (HxWxD): 94 x 53 x 69 ±0.2 mm / 3.78 x 2.01 x 2.32 inches ±0.02
• Mounting: DIN rail
• Screw Terminals Max Torque: 0.4 Nm / 3.5 lb in
• Conductor Cross Section:
• 0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
• 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
• Conductor Stripped Length:
• 6 to 7 mm / 0.24 to 0.28 in (green connector)
• 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
• Shell Material: Plastic
• Color: Black

Environmental

• Ambient Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30% to 70% RH
• Max. Altitude: 2000 m / 6562 ft

Electrical

• Power Supply Voltage AC: 110 – 240 V
• Power Supply Voltage DC: N/A
• Power Consumption: <4 W
• Neutral Wire Needed: Yes

Output Circuits Ratings

• Max Switching Voltage AC: 240 V
• Max Switching Current AC: 16 A
• Max Switching Voltage DC: N/A
• Max Switching Current DC: N/A

Sensors, Meters

• Internal-Temperature Sensor: Yes
• Voltmeter (AC): Yes
• Ammeter (AC): Yes

MCU

• CPU: ESP32-D0WDQ6
• Flash: 8 MB

Firmware Capabilities

• Schedules: 20
• Webhooks (URL Actions): 20 with 5 URLs per hook
• Scripting: Yes
• MQTT: Yes
• CoAP: No

»Shelly Pro 4PM 4-Circuit Wi-Fi Smart Relay Switch with Power Measurement User Manual (Multilingual) (.pdf)
