Shelly Pro 1, Wi-Fi & Bluetooth

Add Wi-Fi, LAN, & Bluetooth Connectivity to A Switch or Outlet

Add remote Wi-Fi, LAN, & Bluetooth connectivity to devices controlled by a switch or outlet with the Shelly Pro 1 Wi-Fi & Bluetooth Relay Module! This dry contact relay module mounts inside your breaker box to add Wi-Fi & Bluetooth remote On/Off control to an electrical load rated up to 15A in your home or business. Once installed, the Pro 1 can be connected to your existing smart home Wi-Fi network and enable your connected devices to respond to remote commands and automated scenes. Manage and control your Shelly Pro 1 and other Shelly devices from the Shelly Smart Control app. Wi-Fi and Bluetooth compatible Shelly devices do not require a smart hub for remote operation, assigning automated or scheduled functions, or inclusion into a smart scene/routine.

• DIN-mountable Wi-Fi, LAN, & Bluetooth module adds On/Off commands to a dry contact switch or outlet
• Supports up to 15A total from a single channel to allow you to add appliances like computers, TVs, space heaters, portable fans, and more to your smart home network
• Remotely manage and control the Shelly Pro and connected loads from the Shelly Smart Control app, no smart hub required
• Built-in temperature sensor and overheating protection shuts down the Pro 1 when unsafe or rapid changes in temperature are detected nearby
• Overpower and overvoltage protection automatically shuts off the Pro 1 before voltage peaks or high power consumption damage the device and its connected wiring
• Enhanced with HTTP/HTTPs webhooks, Shelly Pro devices can easily work with 3rd party electrical equipment and automation systems and follow 20 actions per week, no hub or cloud server required
• Fully supports mjS scripting and KNX integration which allows users to create their own custom features and automations

Shelly Smart Control App – Everything at Home Connected

Enjoy enhanced home automation control and precise monitoring of your Shelly devices no matter where you are with the Shelly Smart Control app. The app connects to Shelly's cloud service to help you control your connected devices remotely and send notifications for all automated events in your home directly to your smart device. You can easily configure devices and manage their settings individually, or you can create personalized scenes by combining Shelly devices to trigger certain actions in your smart home network. The Shelly Smart Control App supports real-time power metering with power management (PM) devices, smart plugs, and smart bulbs in order to allow you to build complex automation solutions for improved energy efficiency and lower electricity bills. Shelly devices are compatible with other most widely accepted both local and cloud based home automation platforms. A Shelly Smart Control App user account is required to access, include, and control Shelly devices through the Shelly Smart Control application and include your Shelly devices to 3rd party home automation or voice assistant platforms like SmartThings, Amazon Alexa or Google Home.

• Easy Inclusion and Control: Include and name new devices in the Shelly Smart Control app, assign them to the rooms they are located in, and group them into scheduled or automated scenes.
• Custom Dashboard: Create multiple dashboards for quick access to your preferred devices, rooms, and scenes. Issue commands using your dashboards or your preferred voice assistant towards individual devices or a group of devices.
• Smart Scenes: Combine multiple devices into one smart scene with pre-set triggered actions. Lower the lights when the TV is turned on for a "Movie night". Cut off the power and send a notification when a space heater has been left on past 9am while you are "Away at Work".
• Custom Schedules and Timers: Teach your home how to make you more comfortable by setting custom schedules based on your agenda. You can set a Shelly controlled switch to turn on the outdoor lights at 7:00 PM on workdays, or turn on your heater an hour before you return from work.
• Energy Monitoring: An energy consumption panel gives you a detailed view of your live and recorded energy usage from devices controlled by Shelly products. The information is stored in a free cloud and fully accessible to you for further analysis of your energy consumption habits.
• Works with Alexa: Shelly Smart Control is natively compatible with Amazon Alexa.

Installation Details

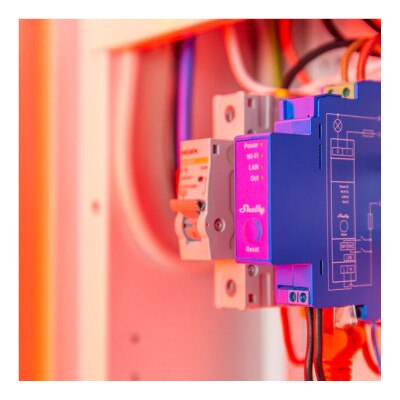

The Shelly Pro 1 Wi-Fi & Bluetooth Relay Module fits on a DIN rail inside a breaker box, and professional installation is required. A neutral wire is required for installation. Once connected to your Wi-Fi network or within range of a Bluetooth controller, the Pro 1 can be included into your local compatible smart home network after it is installed.

Contents

• Pro 1 Module
• DSK Label
• User Manual

NOTE: A neutral wire is required for installation.

Shelly Provides A 100% Wireless Smart Home

Shelly creates innovative and affordable smart home devices for residential and business applications. Shelly, formerly Qubino, now focuses on providing Wi-Fi and Z-Wave compatible smart home solutions. Shelly devices are among the smallest automation control devices in the world, allowing them to find their place in nearly any sized smart home installation. Shelly utilizes the latest technologies to deliver superior automation, safety, and energy efficiency to their customers without breaking down their walls or bank accounts.

• Manufacturer Part #: SPSW-201XE16EU
• Model Part: Pro 1
• EAN: 3800235268001
• Warranty: 5-Year

Radio

• RF Band: 2400 – 2495 MHz
• Max. RF Power: <20 dBm
• Wi-Fi Protocol: 802.11 b/g/n
• Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
• Bluetooth Protocol: 4.2
• Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Physical

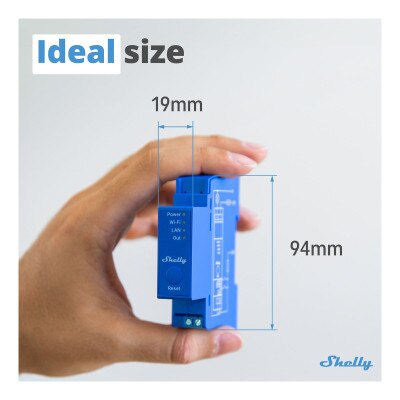

• Size (HxWxD): 94 x 19 x 69 ±0.5 mm / 3.70 x 0.75 x 2.71 ±0.02 in
• Weight: 63 g / 2.22 oz.
• Mounting: DIN rail
• Screw Terminals Max Torque: 0.4 Nm / 3.54 lb in
• Conductor Cross Section:
• 0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
• 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)
• Conductor Stripped Length:
• 6 to 7 mm / 0.24 to 0.28 in (green connector)
• 5 to 6 mm / 0.20 to 0.24 in (blue connectors)
• Shell Material: Plastic
• Color: Blue

Environmental

• Ambient Temperature: -20°C to 40°C / -5°F to 105°F
• Humidity: 30% to 70% RH
• Max. Altitude: 2000 m / 6562 ft

Electrical

• Power Supply Voltage AC: 110 – 240 V
• Power Supply Voltage DC: N/A
• Power Consumption: <3 W
• Neutral Wire Needed: Yes

Output Circuits Ratings

• Max Switching Voltage AC: 240 V
• Max Switching Current AC: 16 A
• Max Switching Voltage DC: N/A
• Max Switching Current DC: N/A

Sensors, Meters

• Internal-Temperature Sensor: Yes

MCU

• CPU: ESP32-D0WDQ6
• Flash: 8 MB

Firmware Capabilities

• Schedules: 20
• Webhooks (URL Actions): 20 with 5 URLs per hook
• Scripting: Yes
• MQTT: Yes
• CoAP: No

»Shelly Pro 1 DIN Mountable LAN & Wi-Fi Smart Relay User Manual (Multilingual) (.pdf)
