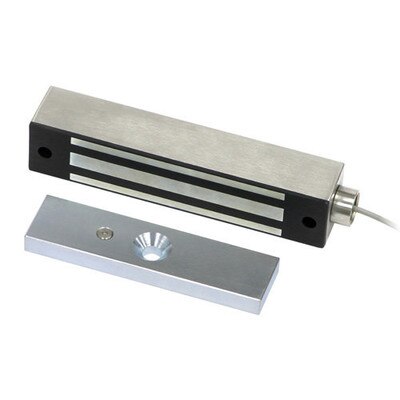

Seco-Larm Enforcer Gate Maglock, 600 Lbs.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Especially Suited For Outdoor Gates
The Seco-Larm Weatherproof Electromagnetic 600 lb. Gate Lock is water and vandal resistant. It is designed to be used with outdoor sliding and swinging electric gates. It features an attractive stainless-steel finish and a maintenance-free, factory-sealed design.
- Holding force – 600-lb (272kg).
- 12 or 24 VDC (selectable).
- No residual magnetism.
- MOV surge protection.
- UL and ULC listed.
- CE listed.
- RoHS compliant.
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
Technical Details
- Manufacturer Part #: E-942FC-600
- Holding force: 600-lb (272kg)
- Operating voltage: 12 or 24 VDC ±10%
- Current draw: 500mA@12VDC, 250mA@24VDC
- Temperature: 14° ~131° F (-10° ~55° C)
- Magnet size: 8"x2-11/16"x1-9/16" (203x42x39 mm)
- Armature size: 6-1/4"x1-3/8"x5/8" (159x41x16 mm)
- Cable length: (approx.) 6-1/2"
- Certification: UL, ULC, CE
- RoHS compliance: Yes
- Warranty: 1 Year
