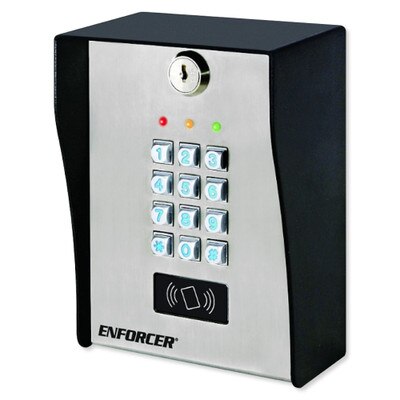

Seco-Larm Enforcer Outdoor Access Control Keypad with Proximity Reader

Outdoor Keypad With Proximity Reader

Enter your home or office via coded entry or proximity card with the Seco-Larm Enforcer Outdoor Access Control Keypad with Proximity Reader. This outdoor keypad can be programmed with up to 1,200 possible user codes and/or proximity cards over 3 outputs, and up to 50 possible temporary guest codes. It features a keypad that illuminates when a button is pressed and the backlight can be set to FULL, AUTO, or OFF in standby mode. The keypad is extremely durable, featuring a rugged, heavy duty stainless steel faceplate with coated steel housing, plus, it will easily hold up against harsh conditions since it has an IP66 weatherproof rating.

• Provides access control with coded entry or proximity cards
• 12-button outdoor keypad that illuminates when pressed
• Supports up to 1,000 possible user codes and proximity cards for Output 1 and 100 for Output 2 and 100 for Output 3
• Supports up to 50 temporary guest codes, which can be programed for one time or limited time use
• Supports up to 50 duress codes for Output 1 and 10 for Output 2 and Output 3
• Proximity card reader built-in
• Durable construction with heavy duty stainless steel faceplate and coded steel housing
• P66 weatherproof rating (protects against dust and water)

Up to 1,200 users over 3 Form C relay outputs are supported:

• Output #1: 5A at 24VDC max (1,000 users)
• Output #2: 1A at 24VDC max (100 users)
• Output #3: 1A at 24VDC max (100 users)

There are 4 available programmable access modes for all 3 outputs:

• Card only
• Code only
• Card and common user code
• Card and unique user code

Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours). User codes can be 4-8 digits long and guest codes can be programmed for one-time or limited-time use. The keypad can mount on a wall, post or to a gooseneck stand, and can be programmed easily and directly from the keypad itself – no need for an external programmer. Plus, the keypad's programmable delayed egress input allows users to exit without entering a code.

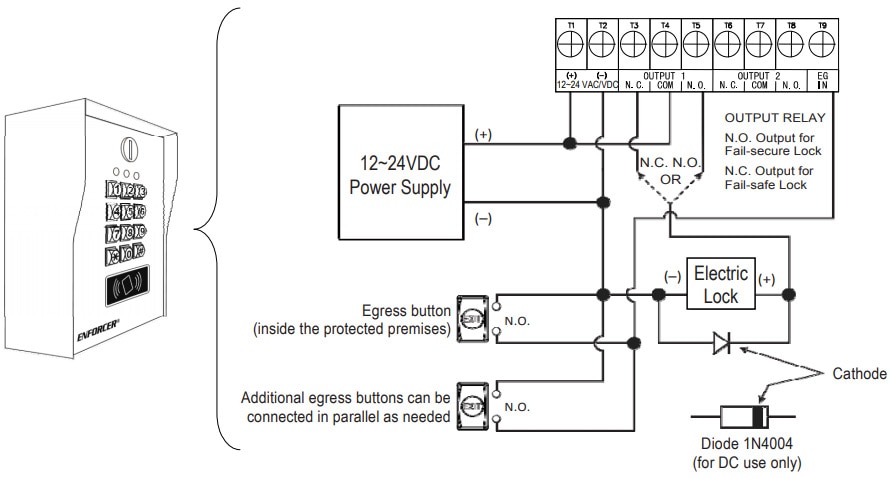

Sample Wiring

Contents

• Keypad with Steel Box
• (4) Mounting Screws
• Mounting Template
• (2) Keys
• (4) Mounting Screw Anchors
• Security Wrench
• Diode
• User Manual

Notes

• No replacement keys available. Please make extra copies of included keys for safekeeping.
• Proximity cards/tags are sold separately.

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Product Features

• 12~24 VAC/VDC Operation, auto-adjusting
• Door sensor input for anti-tailgating operation
• Super user code gives admin access to keypad
• Programmable egress input with optional warning alarm and delayed egress
• Real-time clock to auto-disable access at specific times
• For a protected area with two doors, the mantrap feature allows only one door to be opened at a time
• Door sensor input for anti-tailgating operation
• Door-propped-open and Door-forced-open warnings
• EEPROM memory will store programmed information if there's power loss

Technical Details

• Manufacturer Part #: SK-3133-PPQ
• Operating Voltage: 12 to 24 VAC/VDC (auto-adjusting)
• Current Draw at 12VDC:
• Standby: 55mA
• Keypress: 90mA
• Total max. current draw: 220mA
• Outputs:
• #1 Form C: 5A@24VDC
• #2 Form C: 1A@24VDC
• #3 Form C: 1A@24VDC
• Inputs:
• Egress: N.O. Ground
• Door Sensor: N.C. Ground
• Door Inhibit: N.O. Ground
• Proximity Reader Frequency: 125kHz (EM125)
• Proximity Reader Sensing Distance: 1-1/2" (38mm)
• IP Rating: IP66
• Operating Temperature: -4° to 158° F (-20° to 70° C)
• Operating Humidity: 5 to 95% Non-condensing
• Dimensions: 5-1/4 x 7-1/16 x 3-3/8 inches (133 x 180 x 85 mm)
• Credentials: FCC, RoHS
• Warranty: 2 Years
