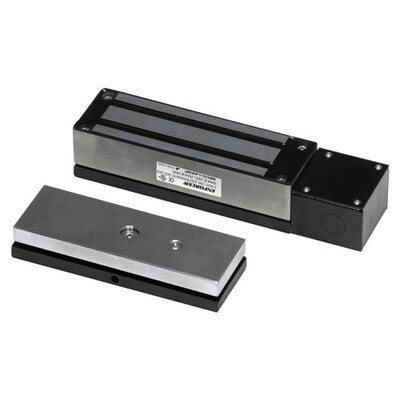

Seco-Larm Enforcer Gate Maglock, 1,300 Lbs. with Weldable Bracket

Secures An Electric Gate With 1,300 Pounds Of Holding Force

Secure your home or business against unauthorized visitors with the Seco-Larm Enforcer Electromagnetic Gate Lock, 1,300 Lbs. with Weldable Bracket. Once installed on an electric gate, the maglock keeps the gate securely closed with 1,300 pounds (591 kg) of holding force, until released through your hardwired security system. The lock features a stainless-steel finish with water and vandal resistance for long-term outdoor use.

• Secures outdoor sliding and swinging electric gates
• Fail-safe operation (unlocks if power is removed)
• Built-in MOV surge protection
• Four knockouts on the junction box

How It Works

The maglock can be used with outdoor sliding and swinging electric gates. The steel armature plate mounts on your gate, while the maglock installs on the gate post. When the maglock is powered, the steel plate is attracted to the electromagnet, holding the gate closed.

This maglock comes with a mounting bracket that can be welded or bolted directly to the gate. The bracket is zinc-plated for corrosion resistance. The lock operates on 12 or 24 VDC power (selectable), and is pre-wired for 12VDC operation.

Contents

• Maglock
• Power Supply
• Mounting Hardware
• AC Pigtail Connector
• DC Pigtail Connector
• (2) Wire Connectors

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

• Manufacturer Part #: E-942FC-1K3SQ
• Operating Voltage: 12VDC or 24VDC
• Holding Force: 1,300 pounds (591 kg)
• Power Supply:
• Input: 100~240 VAC at 50/60Hz
• Output: 12VDC at 1.0A
• Current Draw: 500mA/12V, 250mA/24V
• Weight:
• Total: 15.6 pounds (7.1 kg)
• Maglock and Armature: 11 pounds (5.0 kg)
• Bracket: 4.6 pounds (2.1 kg)
• Certifications: CE (magnetic lock only)
• Warranty: 1 Year

»Seco-Larm Enforcer E-942FC-1K3SQ Electromagnetic Gate Lock Data Sheet (.pdf)
»Seco-Larm Enforcer E-942FC-1K3SQ Electromagnetic Gate Lock Installation Manual (.pdf)
