Seco-Larm Enforcer Electromagnetic Lock, 600 Lbs.

SKU: SEE941SB600

Order now and we'll ship same business day (if ordered before 3 pm PST).

$118.95

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Secure Your Door with 600 Pounds Of Resistance

Secure your door from forceful openings with the Seco-Larm Enforcer Electromagnetic Lock (600 Lb.), Black. This electromagnetic lock uses 600 pounds (272kg) of holding force to safely keep a door in place within a standard indoor application. This magnetic door lock is housed in anodized aluminum (black finish) and features MOV surge protection to ensure long-term reliability and includes a detachable faceplate, an adjustable mounting bracket, and all the mounting hardware needed to make installation quick and easy.

  • Secures a door with 600 pounds (272kg) of holding force
  • Reliable security with MOV surge protection
  • Easy wiring with detachable faceplate
  • No residual magnetism once deactivated
  • All mounting hardware included and powered by 12 or 24 VDC

The Seco-Larm Enforcer Electromagnetic Lock uses an extremely strong magnetic field to create 600 pounds of holding force to secure a door against unauthorized entry every time power is applied to the electromagnetic lock. A steel armature plate mounted on the door is attracted to the electromagnet when in use. The only way to open the secure door and allow it to function normally is to deactivate the lock.

Contents

  • Electromagnet
  • Mounting Plate
  • Door Spacer
  • (2) Steel Washers
  • Rubber Washer
  • (4) Long Self-Tapping Screws
  • (2) Short Self-Tapping Screws
  • Sexnut Bolt
  • (2) Guide Pins
  • Door Spacer
  • (2) Hex-head Mounting Screws
  • (2) Tamper Caps
  • (2) Hex Wrenches
  • Armature Plate
  • Armature Screw
  • Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: E-941SB-600
  • Color: Black
  • Holding Force: 600-lb (272kg)
  • Static Strength: 500-lb
  • Dynamic Strength: 50 ft-lb
  • Endurance: 250,000 cycles
  • Operating Voltage: 12/24 VDC (selectable)
  • Current Draw: 500mA@12VDC, 250mA@24VDC
  • Door Thickness (max.): 2" (50mm)

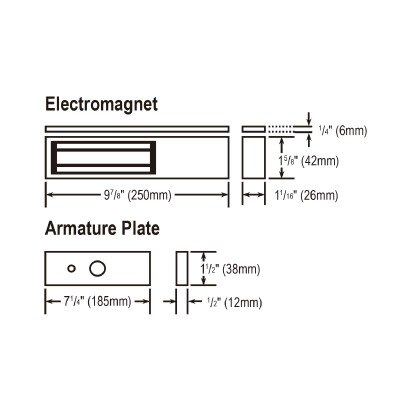

  • Dimensions – Magnet: 9-13/16"x1-11/16"x1" (250x43x25 mm)
  • Dimensions – Armature Plate: 7-1/4"x1-1/2"x1/2" (185x38x12 mm)
  • Operating Humidity: 0~85 (non-condensing)
  • Operating Temperature: 32°~120° F (0°~49° C)
  • Lock Surface Temperature: ≤ Ambient temperature ± 68° F (20° C)
  • Destructive Attack: Level I
  • Line Security: Level I
  • Standby Power: Level I
  • Endurance: Level IV
  • Weight: 4-lb 6-oz (2kg)
  • Certifications:
    • UL294 Access Control System Units – USA
    • UL1034 Burglary Resistant Electric Lock – USA
    • UL864 Fire Alarm Systems – USA
    • UL10C Positive Pressure Fire Test – USA
    • UL10B Fire Test of Door Assemblies – USA
    • ULC-S104 Fire Test of Door Assemblies – Canada
  • Warranty: Limited Lifetime

Downloads

»Seco-Larm E-941SB-600 Enforcer 600-lb Single-Door Electromagnetic Locks Spec Sheet (.pdf)
»Seco-Larm E-941SB-600 Enforcer Electromagnetic Locks Installation Manual (.pdf)
»Seco-Larm E-941SB-600 Enforcer 600-lb Single-Door Maglocks Technical Drawing (.pdf)
