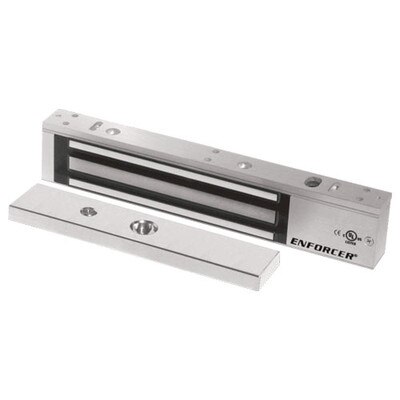

Seco-Larm Enforcer Maglock, Bond Sensor, 600 Lbs.

SKU: SEE941SA600PQ

Order now and we'll ship same business day (if ordered before 3 pm PST).

$100.28

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Built-In Status LED & Bond Sensor To Show Locking Status

The Seco-Larm Electromagnetic Lock is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the door will function normally with no residual magnetism.

  • Anodized aluminum
  • No residual magnetism
  • MOV surge protection
  • Adjustable mounting bracket
  • Complete mounting hardware for typical installations
  • "L" bracket and "Z" brackets available for easy mounting
  • 12/24VDC selectable
  • Detachable faceplate
  • Built-in dual-colored status LED and bond sensor to show locking status:
    • Green: Door is closed and locked
    • Red: Door not closed and/or locked
    • Off: Door in use / No power

Package Includes

  • 1 x Mounting plate
  • 1 x Electromagnet
  • 1 x Armature plate
  • 1 x Armature screw
  • 2 x Steel washers
  • 1 x Rubber washer
  • 1 x Door spacer
  • 1 x Sexnut bolt
  • 2 x Guide pins
  • 4 x Long self-tapping screws
  • 2 x Short self-tapping screws
  • 2 x Hex-head mounting screws
  • 2 x Tamper caps
  • 2 x Allen wrenches

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Manufacturer Part #: E-941SA-600PQ
  • Holding force: 600-lb (272kg)
  • Current draw: 500mA@12VDC, 250mA@24VDC
  • Operating voltage: 12 or 24 VDC ±10%
  • Temperature: 14° ~ 131° F (-10° ~ 55° C)
  • Magnet size: 9-7/8" x 1-1/16" x 1-5/8" (250 x 27 x 42 mm)
  • Armature size: 7-1/4" x 1/2" x 1-1/2" (185 x 12 x 38 mm)
  • Certification: UL, ULC, CE
  • RoHS: compliance Yes
  • Bond sensor: Yes
  • Status LED: Yes
  • Warranty: 1 Year

Downloads

»Seco-Larm Enforcer E-941SA-600PQ Electromagnetic Lock Spec Sheet (.pdf)
