  • Seco-Larm Enforcer Electromagnetic Lock, Bond Sensor, 1,200 Lbs. with Timer

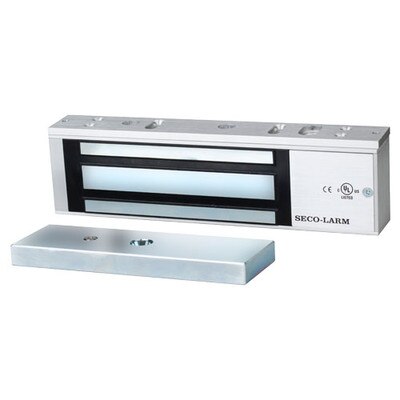

Seco-Larm Enforcer Electromagnetic Lock, Bond Sensor, 1,200 Lbs. with Timer

SKU: SEE941SA1K2PD

Order now and we'll ship same business day (if ordered before 3 pm PST).

NOTE: This is a heavy/dimensional part; it is not eligible for free shipping.

$144.51

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Automatically Relocks Door After Opening

Make sure your door stays locked after authorized entry with the Seco-Larm Enforcer Electromagnetic Lock, Bond Sensor (1,200 Lbs. with Timer). Featuring a built-in adjustable door-relock timer, this maglock can be programmed to automatically relock the door after your chosen length of time (1~78 seconds).

  • Adjustable door-relock timer
  • Housed in anodized aluminum
  • 12 or 24 VDC (selectable)
  • No residual magnetism upon deactivation
  • Built-in MOV surge protection

When powered, the electromagnetic lock creates a strong magnetic field and becomes attracted to the steel armature plates that attach to your door. This strong force prevents anyone from opening the door. When power is deactivated, the door can open without any residual magnetism.

The Electromagnetic Lock comes with all the required mounting hardware for a typical installation, including an adjustable mounting bracket and a detachable faceplate. The lock also features a dual-color status LED and a bond sensor with relay to show the locking status of the door:

  • Green: Door is closed and locked
  • Red: Door not closed and/or locked
  • Off: Door in use/no power

Building A Secure Future Since 1971

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it’s physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.

Specifications

  • Holding Force: 1,200 pounds (545kg)
  • Current Draw: 500mA at 12VDC, 250mA at 24VDC
  • Operating Voltage: 12 or 24 VDC ±10 percent
  • Temperature: 14° to 131° F (-10° to 55° C)
  • Magnet Size: 10-1/2 x 1-5/8 x 2-5/8 inches (268 x 42 x 67 mm)
  • Armature Size: 7-1/4 x 5/8 x 2-3/8 inches (185 x 16 x 61 mm)
  • Weight: 10 pounds, 8 ounces (5kg)

Downloads

»Seco-Larm Enforcer E-941SA-1K2PD Electromagnetic Lock Installation Manual (.pdf)
»Seco-Larm Enforcer E-941SA-1K2PD Electromagnetic Lock Template (.pdf)
