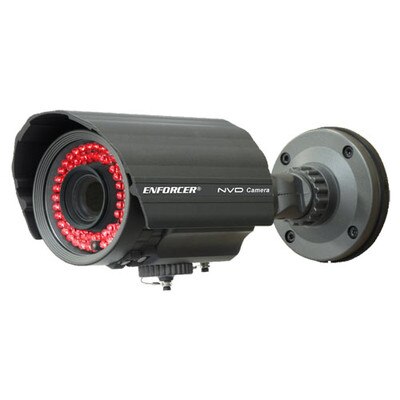

Seco-Larm Enforcer Bullet Camera, 3X Series, 600TV, 2.8~12mm, 56 LEDs
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
3-in-1 Camera With 2.8-12mm Varifocal Lens
The Seco-Larm Enforcer Bullet Camera, 3X Series is a three-in-one security camera that features 56 infrared LEDs for clear images in total darkness, a Digital Slow Shutter (DSS) that amplifies existing light to capture images in almost total darkness, and on-screen display for convenient programming. Additionally, the camera includes a DC Auto Iris Varifocal lens that allows you to adjust the focal length of the lens to either cover a wide area or focus on a specific target.
- 2.8 to 12mm varifocal lens
- Rugged, weatherproof design
- Programmable 8-zone privacy settings
- On-screen display for easy programming
- Cable concealed in the bracket for extra security
On-Screen Display
The camera's built-in display screen allows you to program motion detection that highlights moving objects, while High Spotlight Back Light Compensation (HSBLC) blacks out bright areas on screen.
Three-in-One Camera
- Infrared LEDs produce a clear image in total darkness.
- Digital Noise Reduction (DNR) cleans and sharpens images by reducing camera noise.
- Digital Wide Dynamic Range (DWDR) captures a clean, high-resolution image even with strong backlight.
Contents
- Camera with mounting bracket
- Mounting plate
- Sunshield
- 4 Mounting screws
- 4 Hex screws
- Hex wrench
- Rubber grommet
- DC plug with terminal block
- Service monitor port connector
Seco-Larm Security Products
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
Product Features
- DC Auto Iris varifocal lens with ICR
- Built-in service monitor port
- Advanced 256x DSS (Digital Slow Shutter)
- DWDR (Digital Wide Dynamic Range) for clear images under strong backlighting.
- DNR (Digital Noise Reduction) for clear images in low light
Technical Details
- Manufacturer Part #: EV-1726-NKGQ
- Color: Black
- Type: IR LED Bullet Camera
- CCD: 1/3 inch Sony Super HAD II Color CCD
- Resolution: 600 TV lines
- Lens: DC Auto Iris,2.8 to 12 mm
- Number of Infrared LEDs: 56 (850nm)
- Effective pixels: 768 x 494 pixels
- Video output: 1.0Vp-p composite video, 75Ω
- Minimum illumination: 0.00006 Lux (LEDs on), 0.05 Lux (LEDs off)
- S/N ratio: >52 dB (AGC OFF)
- On-screen display: Built-in and controlled by internal joystick
- Motion detection: 4 zones
- Backlight compensation: HLC/BLC/Off
- White balance: ATW/AWC/MANUAL (1,800 to 10,500 degrees K)
- Digital Slow Shutter (DSS): 256x
- Electronic Shutter: Auto/Manual (adjustable range: 1/60 to 1/120,000 seconds)
- Auto gain: Selectable: Low, Middle, High, Off
- 3-DNR: DNR with filtering, On/Off (adjustable range 0 to 100)
- Day and Night: Selectable: Color, Auto, B/W
- Sharpness: On/Off (adjustable range: 0 to 31)
- Privacy: On/Off (8 programmable zones)
- IP rating: IP66
- Operating voltage: 12VDC/24VAC Dual Voltage
- Current draw: 12VDC, 200 mA, 24VAC, 3.6W(LEDs off), 12VDC, 600 mA, 24VAC, 12W (LEDs on)
- Operating temperature: 14 to 122 degrees F (-10 to 50 degrees C)
- Dimensions12 x 3.875 x 3.875 inches (305 x 100 x 100 mm)
- Warranty: 1 Year
