Seco-Larm Enforcer 12VDC Switching CCTV Power Supply, 5A to 20A
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Power Multiple CCTV Devices With One Power Supply
Conveniently power multiple CCTV devices with the Seco-Larm Enforcer 12VDC Switching CCTV Power Supply (5A to 20A). This switching power supply comes in four different models with Positive Temperature Coefficient (PTC) fused outputs. Choose four outputs (5A supply current) for four CCTV devices, nine outputs (10A supply current) for nine CCTV devices, eighteen outputs (10A supply current) for eighteen CCTV devices, or eighteen outputs (20A supply current) for eighteen CCTV devices. Each output can be individually adjusted to deliver 11.0-13.8 VDC power to the connected CCTV device.
- Individually adjustable 11.0-13.8 VDC outputs
- Universal 90-120 VAC input
- Built-in short circuit and overheat protection
- 3.3-foot (1m) power cord included
- Heavy-duty steel case with removable cover

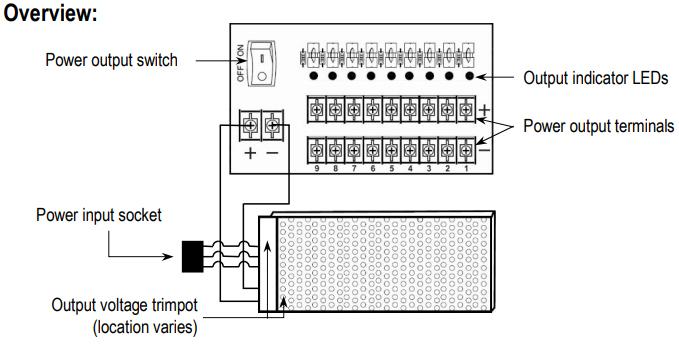

Each output of the Seco-Larm Enforcer 12VDC Switching CCTV Power Supply (5A to 20A) features an individual status LED on the cover and is protected by a PTC fuse. The lightweight power supply is housed in a rugged steel enclosure for added security and provides built-in short circuit and overheat protection.
Contents
- Power Supply
- Power Cord
- (2) Rubber Rings
- (2) Keys
- Manual
Notes
- Always test output voltage before connecting devices. Indoor use only.
- Do not mount the unit where it may be exposed to weather or high humidity.
- For professional installation only.
Building A Secure Future Since 1971
So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether it's physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers an extensive range of dependable, cost-effective security products with a full program of service and support.
Specifications
- Manufacturer Part #:

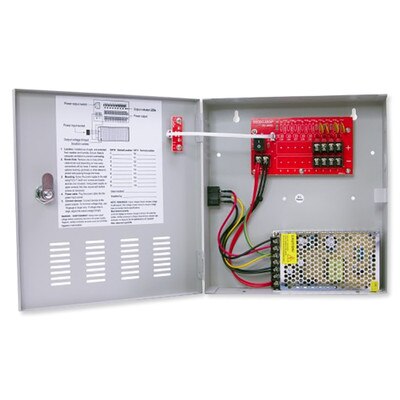

- PC-U0405-PULQ (4 Outputs, 5A)
- PC-U0910-PULQ (9 Outputs, 10A)

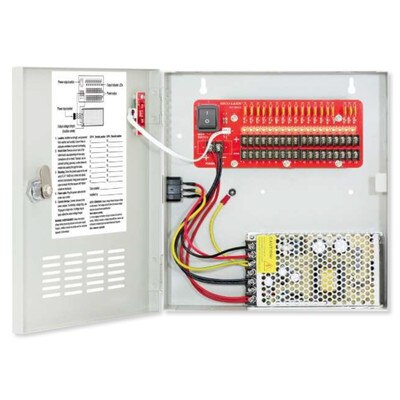

- PC-U1810-PULQ (18 Outputs, 10A)

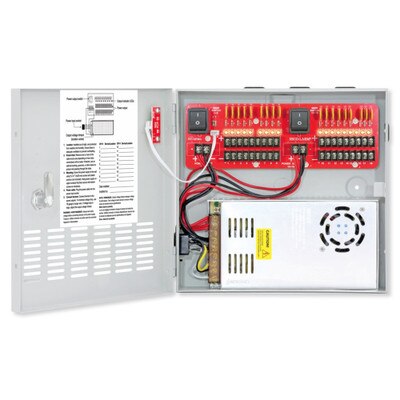

- PC-U1820-PULQ (18 Outputs, 20A)
- Total Supply Current:
- 5A (PC-U0405-PULQ)
- 10A (PC-U0910-PULQ)
- 10A (PC-U1810-PULQ)
- 20A (PC-U1820-PULQ)
- Max. Current Per Output:
- 1.6A (PC-U0405-PULQ)
- 1.6A (PC-U0910-PULQ)
- 1.1A (PC-U1810-PULQ)
- 1.6A (PC-U1820-PULQ)
- Output Fuse: PTC
- Output Voltage:
- 100~220 VAC ±10% (47~63 Hz): PC-U0405-PULQ
- 100~220 VAC ±10% (47~63 Hz): PC-U0910-PULQ
- 100~220 VAC ±10% (47~63 Hz): PC-U1810-PULQ
- 110/220 VAC (50/60 Hz): PC-U1820-PULQ
- LED Indicators:
- Cover:
- Green: AC Input, Red: DC Output
- PDM (Power Distribution Module):
- Red: DC Output
- Operating Humidity: 90% (non-condensing)
- Operating Temperature: 32°~104° F (0°~40° C)
- Dimensions:
- PC-U0405-PULQ: 9-7/16 x 10-1/4 x 2-3/8 inches (240 x 260 x 60 mm)
- PC-U0910-PULQ: 9-7/16 x 10-1/4 x 2-3/8 inches (240 x 260 x 60 mm)
- PC-U1810-PULQ: 10 x 10-5/16 x 3-1/8 inches (254 x 262 x 79 mm)
- PC-U1820-PULQ: 10 x 10-5/16 x 3-1/8 inches (254 x 262 x 79 mm)
- Weight:
- PC-U0405-PULQ: 4 pounds, 3 ounces
- PC-U0910-PULQ: 4 pounds, 7 ounces
- PC-U1810-PULQ: 5 pounds, 2 ounces
- PC-U1820-PULQ: 6 pounds, 1 ounces
- Credentials: RoHS, UL, CE
- Warranty: 2 Years
