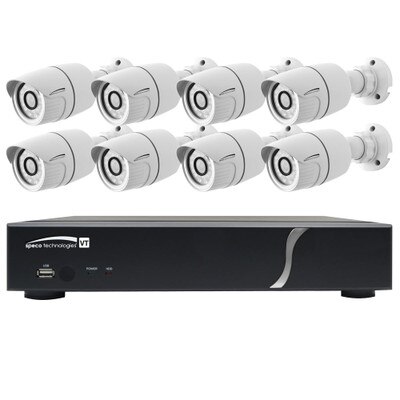

Speco HD-TVI Kit: 8-Channel DVR with 8 Bullet Cameras
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Upgrade to Full 1080p Using Your Existing Coax
The complete Speco HD-TVI Kit with 8-Channel DVR & 8 Bullet Cameras is the total package you need to create an HD surveillance system that supports high-definition recording at 1080p with the ability to connect using coax cable, so you can upgrade from analog if necessary, without rewiring! The kit comes with an Internet-accessible 8-channel DVR and eight outdoor (IP66) bullet cameras that offer an array of pro-grade features. Step into the future of video surveillance with HD-TVI!
- Includes one 8-Ch. NVR and 8 weather-resistant HD-TVI cameras
- Supports 1080p at 15fps, 720p at 30fps over coax
- Cameras have 3.6mm lens and IR LED range up to 60 feet
- UTC allows zoom/focus and OSD control over coax
- Supports 2-way audio communication
- Free mobile app for remote viewing
- Compatible with PC and Mac systems
The included Speco 1080p HD-TVI DVR has 2-way audio capabilities, so you can capture audio for up to 4 channels and/or communicate with intruders when a motion detector is triggered. Use a microphone (sold separately) to communicate in real-time, or program a pre-recorded message to play upon activation.
Built-In Hard Drive for Convenient Storage
Equipped with a pre-installed 2TB hard drive, the DVR stores recorded video and audio locally for convenient access, and employs H.264 compression to offer quick, high-quality recording. Its HDD storage can also be optimized by switching between low- and high-quality streaming during simultaneous "Continuous + Sensor" or "Continuous + Motion" modes.
Easy Access to Footage via Mobile App
View live and stored video from anywhere, anytime through the free mobile app for iOS and Android devices. The unit also features S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology for HDD) and two-way voice communication capabilities to help you take immediate action against suspicious activity. Additionally, you can program recording to initiate automatically upon motion detection, a triggered sensor, or according to your custom schedule.
Quick & Versatile Setup Options
Designed for quick setup and ease of use, the DVR offers "EZ" features that make camera surveillance a breeze.
- EZ Network: for quick set-up on a network
- EZ Copy: auto copy what you are playing onto a USB flash drive
- EZ Record: quickly set up recording schedules, resolutions and recording type
- EZ Setup: for quick system setup
- View on an Android, Blackberry, iPadView on iPhone
Compatible with both PCs and Macs, the DVR is network accessible via SpecoTech Multi-Client Software, SecureGuard Plus, Web-Viewer, and Speco Player Mobile Viewer. You can enjoy remote monitoring, recording, playback, configuration, software upgrades and PTZ control all via the Internet.
Kit Includes
- (8) HD-TVI 1080p Outdoor IR Bullet Cameras, White
- HD-TVI DVR, 8-Channel, 2TB
- Remote Control
- Audio Cable
- Power Adapter
- Power Cable
- (2) AAA Batteries 1.5V
- USB Mouse
- Software & Manual CD
- Quick Setup Guide
- Quick User Guide
NOTE: To preserve signal quality and distance, Speco Technologies recommends using coax with a 100 percent copper center conductor and at least 95% braided copper shield.
IMPORTANT NOTE: Speco Technologies products are not available to ship outside the U.S. Please contact Speco Technologies directly for international orders.
Commercial & Residential Solutions From Speco
Speco Technologies is dedicated to providing the highest quality residential and commercial sound, security, CCTV closed circuit video and electronic accessories. Contractors, installers, builders, engineers, architects and homeowners rely on Speco products to satisfy both their commercial and residential needs. Home Controls is an authorized Speco distributor, ensuring customers obtain proper support and service.
Specifications
- Manufacturer Part #: ZIPT88B2
Product Features
- Networkable DVR with free Speco DDNS server
- Signal distance up to 1600 feet*
- Smart (Museum) Search: Quickly search for specific events without motion setup
- Instant, convenient backup via USB flash drive or network
- Easy firmware upgrade by USB port or network
- Digital Deterrent supports up to 8 audio files to trigger upon sensor activation
- Covert camera operation provides enhanced security and administrator control
- Password-protected to secure installation authorization
- Supports multiple PC-based browsers such as IE, Chrome, Firefox, and Safari
- Simultaneous playback/record while continuing to network transfer or backup
- Supports up to 4 concurrent users for live viewing, 1 user for playback
- Digital watermarking
*To preserve signal quality and distance, Speco Technologies recommends using coax with a 100 percent copper center conductor and at least 95 percent braided copper shield.
Technical Details
- Manufacturer Part #: ZIPT4B1
HD-TVI 1080p Outdoor IR Bullet Cameras
- Lens: 3.6mm fixed lens
- Image Sensor: 1/3" 2MP CMOS
- Resolution: 1080p/720p
- Minimum Illumination: 0 lux at F2.0 (IR on) / 0.1 lux at F2.0 (IR off)
- S/N Ratio: 50dB
- Motion Detection: Yes
- Day/Night: IR-cut filter
- DNR: 2D/3D Automatic
- Number of IR LEDs: 28
- IR Range: 60 feet (depending on scene reflection)
- Power Supply: 12VDC (power supply not included)
- Power Consumption: 400mA (IR on)
- Operating Temperature: -4° to 104°F
- Weight: 9.6 ounces
- Dimensions: 2.5(Dia.) x 7.2(L) inches
- Warranty: 2 Years
HD-TVI DVR, 8-Channel, 2TB
- Power Supply Voltage: 12VDC, 3A
- Operating Temperature: 41° to 104°F (5° to 40°C)
- Storage Temperature: 14° to 122°F (-10° to 50°C)
- Operating Humidity: 20 to 80 percent (non-condensing)
- Weight: 3.3 pounds (1.5kgs)
- Dimensions: 13.4(W) x 10.31(H) x 2.48(D) inches (340 x 262 x 63 mm)
- Warranty: 3 Years
Video
- Input:
- Number of Channels: 8
- Signal Distance: Up to 1,600 feet (depending on coax quality)
- Input Level Composite: 1.0Vp-p, 75 ohms
- Signal Format: NTSC / PAL
- Video Loss Check: Yes
- Output:
- HDMI: 1 HDMI (1024x768, 1280x720, 1280x1024, 1920x1080)
- VGA: 1 VGA (1024x768, 1280x720, 1280x1024, 1920x1080)
- CVBS/Spot: 1 main or 1 spot
Audio
- Input: 4 line input
- Output: 1 line output
- Audio Codec: G.711
Sensor / Alarm
- Sensor Input: 4 channel (NC/NO selectable)
- Alarm Output: 1 alarm out by sensor, motion, video loss, HDD temperature and HDD failure
Serial
- RS-485: 1 – PTZ
Recording
- Compression: H.264
- Multi-Operation: QUADPLEX (play / record / network / backup)
- Resolution:
- 1080p TVI: 120fps
- 720p TVI: 240fps
- 960H Analog: 240fps
- Recording Mode: Continuous / Schedule / Motion / Sensor / Manual / Continuous + Motion / Continuous + Sensor
- Motion Detection: Motion detection setup by grid
- Recording by Channel's Resolution: Yes
- Pre-Recording: Max. 20 minutes
- Post-Recording: Max. 60 seconds
Playback
- Multi-Decoding: 1, 4, 8
- Search Mode: EZ Search, Smart (Museum) Search, Timeline, Event, Archive, Log
Storage
- HDD:
- Interface Type: Serial ATA
- Capacity of 1 HDD: Up to 4TB
- Internal HDDs: 2
- Backup:
- USB Flash Drive: Video and Still Image
- USB External HDD: Video and Still Image
- Network: Video and Still Image
- USB Ports: 1 front, 1 rear
User Interface
- Menu Display: GUI
- Input Method: IR, Mouse, Keyboard Controller
Network
- Interface: 10/100 Base-T
- Streaming: CIF 15fps / channel max
Network Access
- Mobile Viewer: Live, Search, PTZ, 2-Way Audio
- PC Web Viewer: Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup)
- PC Client: SpecoTech Multi-Client Viewer and SecureGuard CMS (Live, Search, Backup, PTZ, Remote Setup)
- MAC Client: Speco Client for MAC and SecureGuard® CMS (Live, Search, Backup, PTZ, Remote Setup)
Additional Features
- Digital Deterrent: Default + up to 8 custom audio files
- Digital Zoom: Yes
- DLS (Daylight Savings): Yes
- EZ Record: Yes
- S.M.A.R.T: Yes
- Internal Beep: By video loss, HDD error Multi-Language English / Spanish / French
- Dynamic DNS: Yes (free Speco DDNS)
- SW Upgrade: USB and remote software upgrade
- Email Notification: Yes
- NTP (Network Time Protocol): Yes
