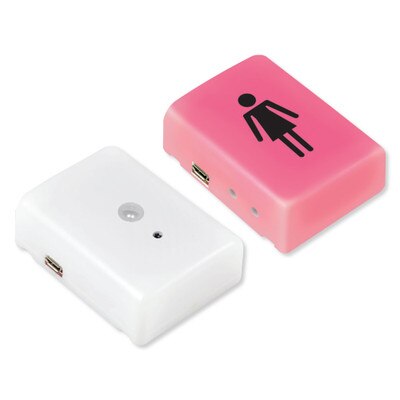

Seco-Larm Enforcer 1-Room Occupancy Monitor Kit

Easily Know If A Room Is In Use

See at a glance whether a room is occupied with the Seco-Larm Enforcer 1-Room Occupancy Monitor Kit. This kit includes a sensor and room indicator that can be programmed in three different ways to detect occupancy: PIR (movement), phototransistor (light), or door sensor input (switch). It also features a built-in buzzer and service button input for when occupants may need assistance. And it's easy to install, just mount it to a wall and connect power to it via the included micro USB cable and any USB adapter (sold separately).

• Indicates whether a room (restroom, fitting room, etc.) is occupied or vacant
• Programmable to use PIR (movement), phototransistor (light), or door sensor input (switch) to detect occupancy
• Indicator decals included (Male, Female, 1, and 2)
• Built-in buzzer for service input
• Easy to install with micro USB or terminal block (5~12VDC)

Contents

• Sensor
• Room Indicator
• (2) USB Power Cords
• Indicator Decal
• Manual

Seco-Larm Security Products

So many places and things to protect; so many ways to protect them; one partner: Seco-Larm. Under the Enforcer trademark, Home Controls offers an impressive line of Seco-Larm security products, ranging from simple switches to some of the most sophisticated alarm devices. Whether for physical security, CCTV, access control, RF equipment, or vehicle security, Seco-Larm is the premier choice. Seco-Larm gives its customers such an extensive range of dependable, cost-effective security products with a full program of service and support.

Product Features

• Programmable to flash to alert staff to check on occupant after a set amount of time
• Indicator will flash and beep if Help Button (sold separately) is pressed
• Each sensor can transmit to an unlimited number of indicators
• Programmable reminder, 3~30 min

Technical Details

• Manufacturer Part #: RM-R100-KB1Q
• Current Draw – Standby:
• Sensor: 2mA@12VDC
• 1-Room Monitor: 6mA@12VDC
• Current Draw – Active:
• Sensor: 15mA@12VDC
• 35mA@12VDC max.
• PIR Sensor Range:
• Sensor: ~16' (5m)
• 1-Room Indicator: N/A
• Operating Frequency: 433.92MHz
• Connections: Screw terminals
• Operating Voltage: 5VDC via micro USB or 5~12 VDC via terminal block
• Dimensions: 2-1/2 x1-5/16 x1-7/8 inches (64 x 24 x 48 mm)
• Credentials: FCC, RoFC
• Warranty: 1 Year

»Seco-Larm Enforcer RM-R100-KB1Q Room Occupancy Monitor Spec Sheet (.pdf)
»Seco-Larm Enforcer RM-R100-KB1Q Room Occupancy Monitor Installation Manual (.pdf)
