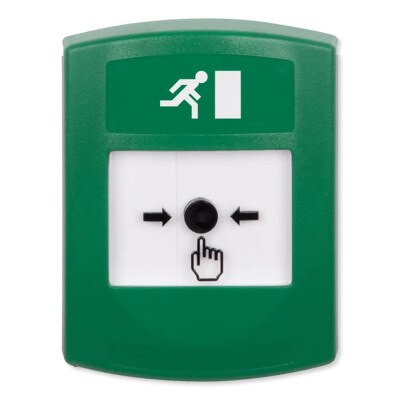

STI Global ReSet Indoor Only Key-to-Reset Push Button with Running Man Icon, No Cover, Green

Simulates Break Glass Activation Without Breaking Glass

Quickly activate the alarm in case of an emergency situation where a quick exit from a building is required with the STI Global ReSet Indoor Only Key-to-Reset Push Button (Green). Unlike other emergency release buttons, this device has no glass to break to activate the alarm. Just press the resettable push button and the device will drop a yellow and black warning flag into view, indicating that the alarm has been activated. To reset the unit, a special key has to be inserted at the bottom and rotated. This helps to eliminate maintenance that's typically required to replace broken glass. This green unit comes with a running man icon and has a shatter-proof polycarbonate push button with a glass appearance.

• Resettable push button switch (no glass) simulates break glass activation
• Shatter-proof polycarbonate push button with a glass appearance
• 2 Form "C" contacts rated 5A @ 30VAC
• Green colored with running man icon
• Yellow and black warning flag indicates alarm activation
• Fits to U.S. single-gang, double-gang and four-square electrical boxes, and European single-gang electrical box

Contents

• STI Global ReSet Indoor Only Key-to-Reset Push Button with Running Man Icon, No Cover, Green
• (2) Keys
• Manual

We Protect The Things That Protect You®

Safety Technology International (STI) is a family owned and operated business that began over 35 years ago with Jack Taylor's invention of the Stopper Pull Station Protector. STI now markets more than 1,000 products throughout the world that help prevent false fire alarms, theft, and vandalism of the devices that protect us all.

• Manufacturer Part #: GLR101RM-EN
• Cover: Polycarbonate
• Relay Output: 2 Form "C" contacts rated 5A @ 30VAC
• Relay Contact Rating: 1A @ 42VDC
• Dimensions: 5.43(H) x 4.13(W) x 1.31(D) inches
• Mounting Plate: fits to U.S. single-gang, double-gang and four-square electrical boxes, and European single-gang electrical box
• Rated: UL/cUL Listed, ADA Compliant
• Warranty:
• 3 year guarantee against breakage of polycarbonate in normal use
• 1 year on electromechanical and electronic components

»STI Global ReSet GLR Series Spec Sheet (.pdf)
»STI Global ReSet GLR Series Installation Manual (.pdf)
