Russound Outdoor 2-Way Landscape Satellite Speaker, 6.5"
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Install Weatherproof Speakers to Enjoy Audio Outdoors
Discreetly add speakers to your yard or patio with the Russound Outdoor 2-Way Landscape Satellite Speaker, 6.5"! This weather resistant speaker features a 3/4'' (19mm) marine grade PEI tweeter and a 6.5" (102mm) PP weatherproof cone woofer to deliver high quality audio at a specific area of your outdoor environment. The speaker's low profile design allows them to blend in with your outdoor decor. The Landscape Satellite Speaker also features a rustproof aluminum grille, ASA shell, weep drainage hole, and weatherproof rear cap to protect the internal components from a wide range of temperatures and humidity levels for year round endurance in virtually any climate. An included bypass setting allows you to adjust the speaker's amplification output between 70V or 100V to perform in various audio installations. Add a number of Satellite Speakers to an existing outdoor audio zone with other Russound outdoor speakers, such as the AW10-LSUB-BR Landscape Subwoofer, to enhance the quality of your audio experience.
- Low profile weatherproof outdoor 6.5" satellite speakers discreetly distribute audio around your exterior property
- Flexible 70v/100v/8Ω design with adjustable tap settings for use in any sized audio application
- Point the speakers at your desired listening area with 150° vertical directional adjustment

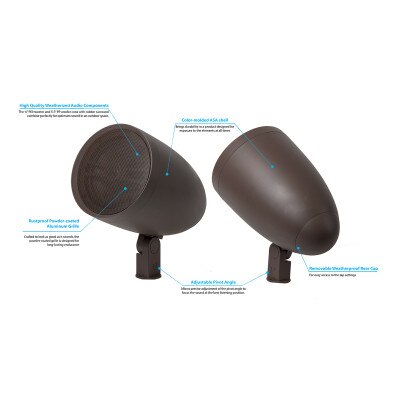

- Rust-proof aluminum grille, ASA Shell, weep drainage hole, and weatherproof rear cap ensure year round performance in any weather conditions

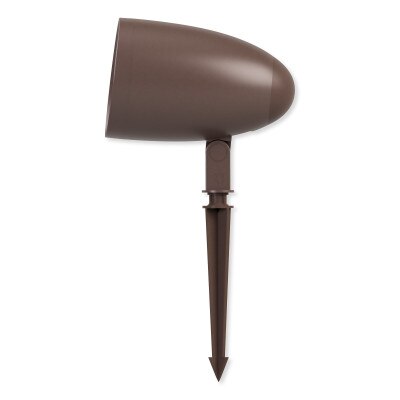

- Included 11" mounting stake allows for grounded installation, and supports 1/2"-threaded landscape lighting mounts for limitless mounting options
Installation Details
Russound Landscape Satellite Speakers can be placed at ground level with an included 11" mounting stake or mounted onto walls, trees, or poles with common lighting mounting canopies and ½" NPS Thread, sold separately. The base of the speaker includes a 5mm hole for mounting an optional security wire. The speakers' vertical angle can be adjusted by 150° to better direct sound within your outdoor audio zone.
Contents
- Landscape Speaker
- Mounting Stake
- (2) Waterproof Wire Nuts
- Installation Manual
NOTE: Remember to leave additional slack during installation to account for hiding the speaker cable underground or behind/under various items.
Russound Brings Engineered Innovation and Extraordinary Sound
The Russound name is synonymous with audio quality around the world. Russound delivers a complete range of multiroom audio systems, source equipment, volume controls, amplifiers, loudspeakers and intercom systems. Every audio device from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. Russound remains dedicated to providing its dealers and customers with the right products for their desired audio needs.
Specifications
- Manufacturer Part #: AW6-LS-BR
- UPC: 612934853715
- Type: 2-Way Landscape Speaker
- Woofer: 6.5" (16.5cm) PP Weatherproof Cone (Rubber Surround)
- Tweeter: 3/4" (1.90cm) Marine Grade PEI Dome
- Frequency Response: 50Hz – 20kHz
- Nominal Impedance: 8Ω – 70/100V
- Sensitivity: 91 dB SPL (2.83V @ 1m)
- Recommended Power: 5 to 125 Watts RMS for low impedance systems
- SPL: 90db @1W/1M
- Tap Settings:
- 70V: 7.5W, 15W, 30W, 60W
- 100V: 15W, 30W, 60W
- 8Ω Bypass
- Dimensions: 11 3/8" L x 7 1/5" Diameter (28.9 x 19.1 cm)
- Unit Weight: 6.2 lbs. (2.8 kg)
- Shipping Dimensions: 13" W x 12" D x 7" H (33 W x 30.5 D x 17.8 H cm)
- Shipping Weight: 4.6 lbs (2 kg)
- Warranty: 5 Years
