Russound 2.1-Channel Low-Profile Mini-AVR with HDMI
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Details
Improve Your TV Audio with a Multi-Channel Amplifier
Enhance the audio output from your TV with the Russound 2.1-Channel Low-Profile Mini-AVR with HDMI. This mini digital audio amplifier connects to your television or home audio system and supports up to two external speakers and one subwoofer to provide improved audio quality. The Mini-AVR includes 4 inputs: HDMI ARC, Digital Optical, Line Level Stereo, and Bluetooth 5.0 wireless streaming, to ensure you can listen to virtually any audio source through connected speakers. An included IR Learning Remote simplifies control of the amplifier and your connected inputs and audio setup so you don't have to fumble with multiple remote controllers. Additionally, the HDMI input supports CEC Control to allow your existing TV or audio remotes to continue controlling the volume of your entertainment system.
- 2-channel Class D amplifier can connect to two speakers and subwoofer to enhance audio from your TV
- 50 Watts per channel at 4 ohms or 25 Watts per channel at 8 ohms with subwoofer output
- Supports 4 audio inputs: HDMI ARC with CEC control, Digital Optical, Line Level Stereo, and Bluetooth 5.0
- HDMI ARC (Audio Return Channel) input enables the Amplifier to be controlled by your TV or cable boxes' existing remote
- Bluetooth 5.0 version ensures wireless streaming with most BT streaming devices

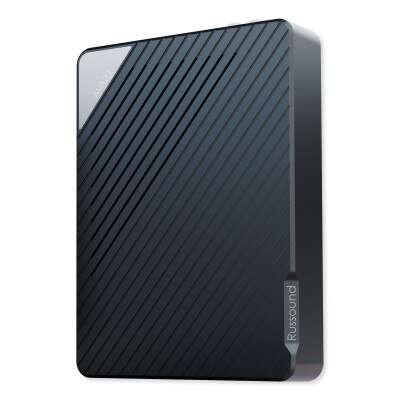

- Ultra-compact design allows the AVR to fit into most media centers, behind electronics, large electrical boxes or on shelves

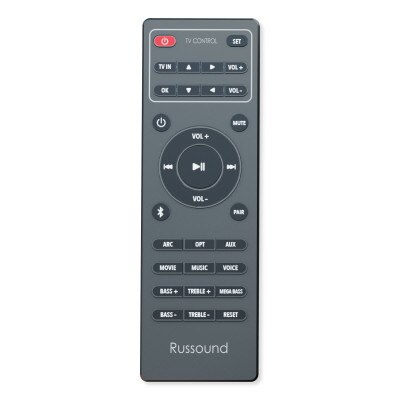

- Included IR Learning Remote can control the Mini-AVR and connected audio systems and TVs
- Works seamlessly with Russound speakers and audio distribution systems
Installation Details

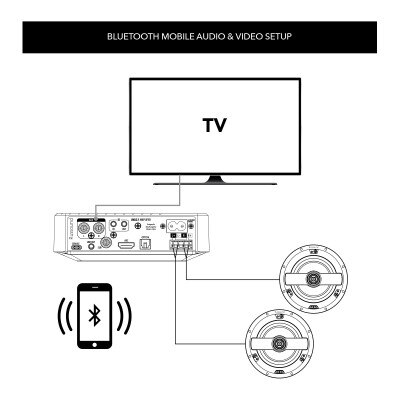

The Low-Profile Mini-AVR with HDMI's compact design allows it to easily be placed and/or hidden anywhere you choose near your audio inputs. Place it on a flat surface, install it behind a TV or media system, or mount it into a media cabinet or enclosure. The amplifier and connected audio sources and zones can be controlled with the included IR Learning remote or with an existing IR remote via CEC control through the HDMI input.
Contents
- Amplifier
- Learning Remote
- Power Cord
- Mounting Bracket
- Infrared Receiver with IR Receiver Eye
- Installation Manual
Russound Brings Engineered Innovation and Extraordinary Sound
The Russound name is synonymous with audio quality around the world. Russound delivers a complete range of multiroom audio systems, source equipment, volume controls, amplifiers, loudspeakers and intercom systems. Every audio device from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. Russound remains dedicated to providing its dealers and customers with the right products for their desired audio needs.
Specifications
- Manufacturer Part #: AVA2.1
- UPC: 612934853982
- Number of Channels: 2.1

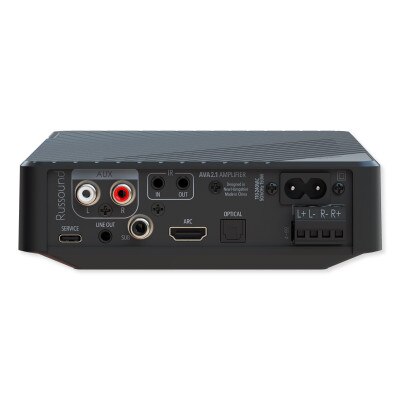

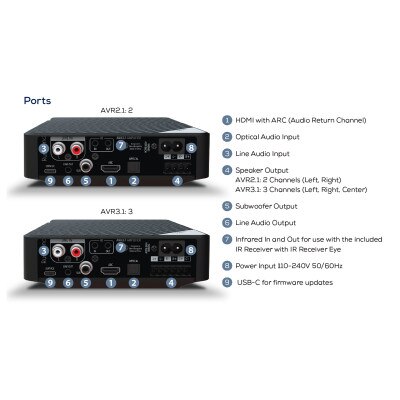

- Inputs: HDMI (ARC), Line In (RCA), Optical, Bluetooth
- Bluetooth Version: 5
- Bluetooth Range: Up to 100ft line of sight (30m)
- Power Output:
- 50W Per Channel @ 4 ohms
- 50W Per Channel @ 8 ohms
- Frequency Response: 20Hz to 20kHz ±3dB at 1W output into 4 or 8 Ohms
- Input Sensitivity: 620V for 80W @ 1KHz
- Input Impedance: >22k ohms Line Input
- Signal to Noise Ratio:
- >94dB A-weighted at 4 ohms
- >96dB A-weighted at 8 ohms
- Remote Control: Included
- IR Sensor: Included
- IR Input/Output: 3.5 mm
- Speaker Connectors: Detachable Screw-down, up to 14AWG
- Line Out: 3.5mm Stereo
- Subwoofer Out: RCA
- Operating Altitude: 0 to 9,843 feet (3000m)
- Power Requirement(s): 115-120VAC, 60Hz (150W Max)
- Standby Power Consumption: 0.45W
- Dimensions: 5.8 W x 1.4 H x 12.7 D inches (27.48 W x 8.3 H x 32.2 D cm)
- Weight: 1.5lbs (0.7kg)
- Shipping Dimensions: 10.7 (W) x 3.3 (H) x 12.7 (D) inches (27.2 x 8.3 x 32.2 cm)
- Shipping Weight: 2.4 lbs (1.1 kg)
- Certifications: CE, UL STD. 60065 Certified to CSA STD. C22.2 No. 60065
- Warranty: 2 Years Limited
