Russound Digital Amplifier, 16-Channel

Efficient High Power Sound From A 16-Channel Amplifier

Experience audio that is more powerful than most standard audio systems with the Russound Digital Amplifier, 16-Channel. With similar features of the Russound R-Series Amplifiers, the D series can be completely customized to provide ultra-low distortion output that produces clean, undistorted audio, even when listening at high levels. This amplifier is designed to provide powerful audio in a small, lightweight chassis for efficient output. It features a robust protection circuit that helps protect the output channel of each amplifier, all while providing safe and efficient operation under extreme conditions. The D1650 is compatible with Russound volume controls and designed for the demands of distributed audio systemsdue to its 16 channels that are arranged in stereo pairs, which provide discrete amplification and customization for configuring each 8 zones.

• 16-channel amplifier arranged in stereo pairs for custom configurations for each 8 zones
• 50 watts per channel into 8 ohms and 80 watts per channel into 4 ohms
• Zones can be bridged for creating flexible power configurations
• Compatible with Russound volume controls
• Global and independent zone triggering
• Signal sensing turns on amp when signal from sources is sensed
• Can be rack mounted using the included rack-mount ears and hardware

The Russound D1650 Amplifier is extremely versatile. In bridge mode, it can provide a 160 watt x 8 channel high powered zone that meets the rigorous demands of a home theater application or you can individually un-bridge pairs to run lower applications using surround speakers. Additionally, you won't hear amplifier hum from the speakers when the system isn't in use since the D1650 offers advanced triggering options, which allow the amplifier to operate on demand.

Contents

• D1650 Digital Amplifier, 16-Channel
• Mounting Hardware
• Manual

Russound Brings Engineered Innovation and Extraordinary Sound

The Russound name is synonymous with audio quality around the world. Russound delivers a complete range of multiroom audio systems, source equipment, volume controls, amplifiers, loudspeakers and intercom systems. Every audio device from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. Russound remains dedicated to providing its dealers and customers with the right products for their desired audio needs.

• Manufacturer Part #: D1650
• UPC: 612934536229
• Power Output: 80W /Channel, 1kHz into 4 Ohms, 50W /Channel, 1kHz into 8 Ohms. Bridged: 160W, 1kHz into 8 Ohms
• Amplified Channels: 16 channels, 8 independent zones
• Signal-to-Noise Ratio: >90dB A-weighted
• Frequency Response: 20Hz to 20kHz +1.7/-1dB at 1W output into 8 Ohms
• Minimum Impedance: Stereo Mode 4 Ohms, Bridge Mode 8 Ohms
• Input Sensitivity: 600 mV for 80W @ 1 KHz 4 Ohm One Zone, 700 mV for 50W @ 1 KHz 8 Ohm One Zone
• Input Impedance: >22k Ohms Line Input

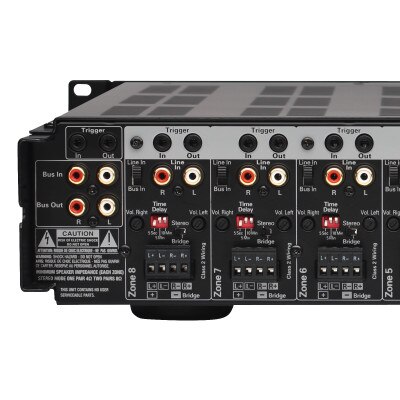

• Trigger Inputs/Outputs: Bus In /Out. Each Zone In/Out 12VDC 100mA
• Zone Line Input: Line or Bus select switch per zone
• Bridge Mode: Select Stereo or Bridge mode per zone 8 Ohm only
• Speaker Connectors: Detachable speaker terminals support up to 14awg wire
• Switching Delay: Three settings, 5 seconds, 5 minutes, 10 minutes
• Power Requirements:
• North American Model D1650: 100-120VAC 60Hz 1200W max, IEC C14 type connector with 3 terminal detachable power cord
• International Model D1650i: 220-240VAC 50Hz 1200W max, IEC C14 type connector with 3 terminal detachable power cords for UK, Europe, and Australia
• Fuse Rating: 100-120V/T5A, 250V US & Canada, 220-230V/T2.5A, 250V Europe
• Dimensions: 16.81(W) x 3.46(H) x 16.14(D) inches (42.7 x 8.8 x 41.0 cm)
• Warranty: 2 Year
