Russound Digital Amplifier, 2-Channel

SKU: RUD250LS

Usually ships in 3-5 days.

$599.00

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Details

Automatically Switches From The Main Audio System To A Local Source

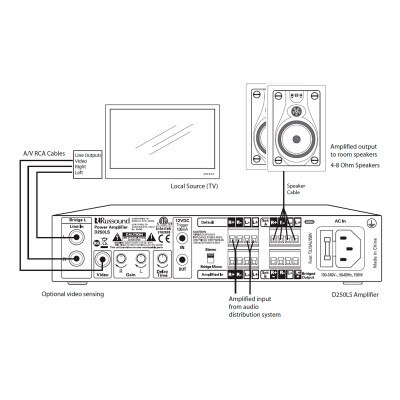

Provide an easy way to listen to high-quality audio and switch from one audio source to another with the Russound Digital Amplifier, 2-Channel. This amplifier is specifically designed to automatically switch between a default source from a whole-home audio system to a local source such as a television or PC located in a bedroom. For example, when a television is turned on in the bedroom the amplifier will automatically switch the room's speakers to its own output so you can hear audio from the television instead of the audio from your whole-home audio system. It can also be used as a single-source two-channel zone amplifier for any zone in your home. The D25-LS Amplifier can be mounted on a wall or in a rack as a single unit or rack mounted side by side within a 1U space next to a second D250LS 2-Channel Digital Amplifier.

  • 2-channel amplifier can switch from whole-home audio system to local source
  • 50 watts per channel into 8 ohms, 75 watts per channel into 4 ohms and bridgeable to 150 watts at 8 ohms
  • Small 1U design takes up a half-rack space
  • Built with robust circuitry for long-lasting stability
  • Can be wall mounted or installed in a rack (1U space)

Rated at 50 watts per channel into 8 ohms and 75 watts per channel into 4 ohms, the D250LS Amplifier can be set in bridge mode, which will make it rated at 150 watts of power into a single 8 ohm load for louder and cleaner sound. Each output channel of the amplifier is designed with robust thermal and short circuit protection so it can perform safely and reliably under extreme conditions.

Contents

  • D250LS Digital Amplifier, 2-Channel
  • Mounting Hardware
  • Manual

Russound Brings Engineered Innovation and Extraordinary Sound

The Russound name is synonymous with audio quality around the world. Russound delivers a complete range of multiroom audio systems, source equipment, volume controls, amplifiers, loudspeakers and intercom systems. Every audio device from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. Russound remains dedicated to providing its dealers and customers with the right products for their desired audio needs.

Specifications

  • Manufacturer Part #: D250LS
  • UPC: 612934533280
  • Amplifier Channels: 2
  • Channel Separation: >60dB @ 1 kHz
  • Frequency Response: 20 Hz to 20 kHz ± 0.4 dB
  • Fuse Rating: T3.15AL/250V
  • Input Impedance: 47 k ohms Line Input
  • Input Sensitivity:
    • 70 mV for 1 watt at 8 ohms
    • 550 mV for 50 watts at 8 ohms
  • Power Consumption (Standby): <0.5 watts
  • Power Output Continuous Stereo:
    • 50 watts per channel at 8 ohms (<0.3% THD+N) @ 1kHz
    • 75 watts per channel at 4 ohms
    • 150 watts at 8 ohms, 2 channels bridged
  • Power Requirement(s):
    • North American: 120 VAC 60 Hz 2.5A
    • European: 230 VAC 50 Hz 2.5A
    • IEC 320 type connector with 3 terminal detachable power cord
  • Signal to Noise Ratio: >112 dB A-weighted
  • Switching Delay: 5 seconds to 5 minutes
  • Total Harmonic Distortion:
    • <0.3% THD+N from 20 Hz to 20 kHz for 50W into 8 ohms
    • <0.05% from 20Hz to 20kHz for 1W into 8 ohms
  • Trigger Input(s): 12 VDC 10 kilohms
  • Trigger Output(s): 12 VDC 100 mA max
  • Voltage Gain: 32 dB
  • Zone Outputs: 1
  • Warranty: 2 Year
