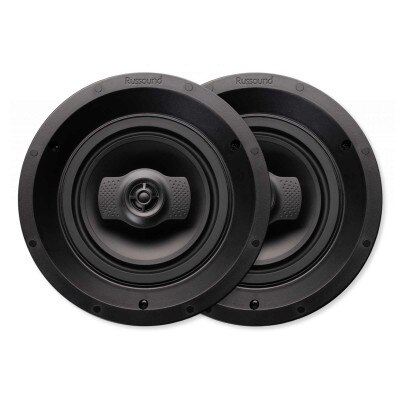

Russound 6.5" All-Purpose Ceiling Loudspeakers (Pair)

Easily Install Speakers For Background Music

Install reliable speakers with versatile audio performance with the Russound 6.5" All-Purpose Ceiling Loudspeakers (Pair)! This pair of high quality in-ceiling speakers are perfect for virtually any audio application and home audio configuration. The IC-610 speakers deliver balanced and wide sound frequency thanks to its one-piece baffle / woofer basket. The speakers can be tweaked to aim sound at your preferred listing spot with the speaker's 15° pivoting tweeter. The speakers are lightweight and feature a trademarked EasyGrip design that makes it easy to handle during installation, even with one hand.

• Pair of indoor speakers for background listening home audio configurations
• One-piece baffle / woofer basket design for enhanced rigidity and more efficient bass
• Paintable edgeless grilles blend seamlessly into any décor
• Powerful neodymium grille magnets for easy and secure attachment
• Pin-Cushion, EasyGrip™ design for one-handed install

Speaker Placement in the Room

Russound's Architectural Series Speakers are designed to provide full sounding dispersion even in suboptimal positions away from the targeted primary axis, so that listeners throughout the room are treated to full, rich audio reproduction. For each room, think about what kind of listening will be most often occurring there. In a Great Room, living room, or bedroom, the ideal speaker placement will result in smooth, even coverage throughout the room. In a Home Theater set-up, you want the speakers to be equidistant from the prime listening position in order for the breadth and depth of the audio to feel like a movie theater's surround sound system.

For TV, movie, and music usage, ceiling speakers should be placed directly to the sides or behind the prime listening position and aimed toward the listener. If the prime purpose of the surround system is to listen to music, the in-ceiling speakers should be aimed at the prime listening position. Any in-ceiling speakers used for rear surround sound channels should be placed just behind the viewers.

Your speaker's low frequency bass reproduction is "helped" when ceiling speakers are placed close to a wall or ceiling. This is known as the boundary effect. Each nearby surface helps to amplify the perceived sound output. Better audio performance will result if both speakers are placed in similar positions and face a similar type of surface. For example, avoid placing one speaker in a corner and another on a long flat surface.

Below are some examples for in-ceiling placement options:

• Good placement for serious listening: Stereo pair In-ceiling. 6' to 8' (1.8m-2.4m) apart, on the long wall of a rectangular room, centered on the listening area.
• Good placement for background listening: Stereo pair behind, above or to the sides of the main listening area. 6' to 8' (1.8m-2.4m) apart, centered on the listening area.

Contents

• Speaker
• Installation Hardware
• Cut-Out Template

NOTE: Russound recommends cutting an 8.375" (21.27 cm) opening for ease of installation.

Russound Brings Engineered Innovation and Extraordinary Sound

The Russound name is synonymous with audio quality around the world. Every speaker model from Russound has been manufactured to fulfill the ideal listening experience of any user – from background music listening to premium performance in your favorite listening areas at home. From the kitchen to the living room to the bedroom, with Russound, there is a perfect speaker for every room.

• Manufacturer Part #: IC-610
• UPC: 612934537141
• Speaker Type: Two-way in-ceiling
• Frequency Response: 50 Hz – 20 kHz
• Impedance: 8 ohms
• Magnet Structure: 11 oz (0.312 kg)
• Mounting Depth: 3.98" (10.1 cm)
• Recommended Power: 5 – 90 watts
• Sensitivity: 88 dB @ 1w/1m
• Tweeter: 0.75" / (19 mm) Pivoting Silk
• Woofer: 6.5" / (16.51 cm) Polypropylene cone
• Overall Dimensions: 9.37" (23.8 cm) diameter
• Cutout Dimensions: 8.25" (20.96 cm) diameter*
• Shipping Dimensions (Pair): 11.75" x 10.75" x 12" (29.8 cm x 27.3 cm x 30.5 cm)
• Shipping Weight (Pair): 8 lbs (3.6 kg)
• Warranty: Limited Lifetime

»Russound IC-Series Loudspeaker Collection Spec Sheet (.pdf)
»Russound IC-Series Architectural Speakers Installation Manual (.pdf)
»Russound IC-Series Comparison Chart (.pdf)
