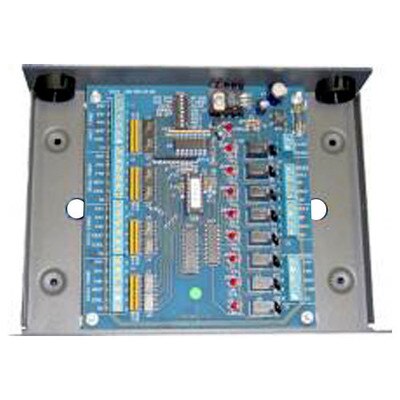

ZTech 4 Zones HVAC Controller (for Standard or Heat Pump Systems)

Standard Gas & Electric Or Heat Pump

The ZTech 4 Zones HVAC Controller is an HVAC zone controller that operates up to 4 independent comfort zones in your home using your single stage heat/cool or heat pump system! Zoning reduces energy use by not heating or cooling unused zones. It also improves comfort level within the home by allowing independent control of each zone's temperature. In addition, zoning improves your system's efficiency by satisfying heat/cool calls faster, and extends the HVAC system life reducing run times!

For two story homes, the thermal equalizer feature does away with the age-old problem of too much heat upstairs and too little downstairs, and provides for further energy savings by recycling the excess upstairs heat to the lower levels. This zone controller works great with standard non-power stealing single stage heat/cool or heat pump thermostats or ZTech communicating thermostats controlled by X-10 or RS232/485 systems. Easily installed and comes in a compact 6" x 8" x 1.5" one pound chassis.

• Operates up to 4 independent heating/cooling zones using a standard gas/electric system or heat pump system
• Works with standard HVAC systems: single stage heat, single stage cooling systems
• Works with heat pump HVAC systems: two stage heat, single stage cooling systems
• Automatically switches between heating and cooling modes based on the current room temperature
• Works with normally open, two position, spring return, 24VAC, 2-wire motorized dampers (four 2-wired damper connections)
• Thermal Equalizer helps to distribute heat more evenly by circulating air from warmer areas to cooler ones

Contents

• 4 Zones HVAC Controller
• Manual

Notes

• Use only electronic thermostats that are battery operated or use BOTH sides of the 24VAC power from the HVAC system.
• Do not use "power stealing" thermostats.

Saving Energy, Improving Life

ZTech Technology is a leading manufacturer of communicating thermostats, zone control systems, energy management and home automation products for residential and light commercial use.

• Manufacturer Part #: 001-00250
• UPC: N/A
• Zones: 4
• Damper Info: Normally open, two position, spring return, 24VAC, 2 wire motorized dampers
• Damper Maximum Rating: Per zone is 1.0 A
• Valve Info: Each zone controls a two position, spring return, 24VAC, 2 wire motorized valve
• Valve Maximum Rating: Per zone is 1.0 A
• Wiring: 18 gauge thermostat wiring
• Power: 24VAC power transformer connected to power input terminal J8

»ZTech ZC4 4-Zone HVAC Control Unit User Manual (.pdf)
