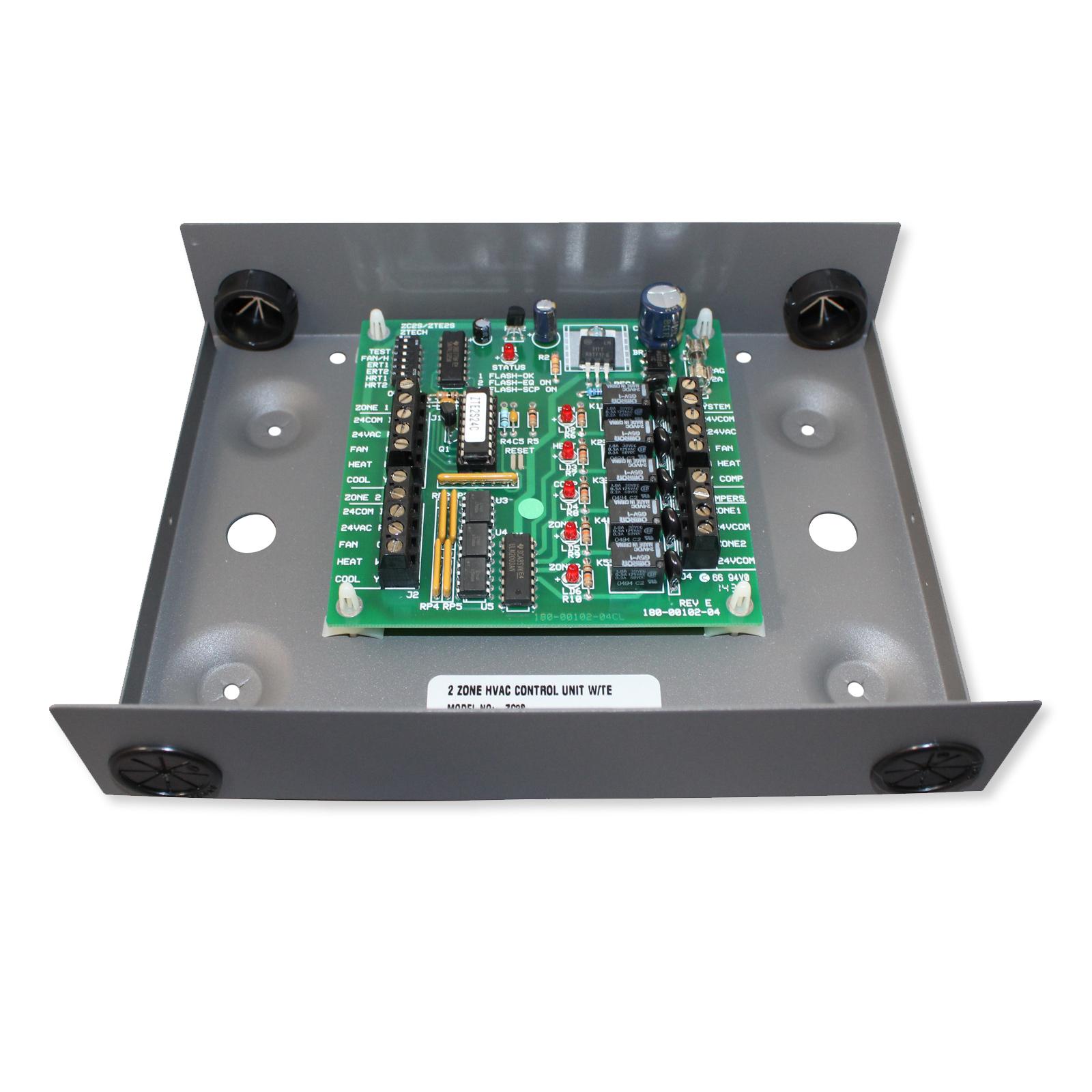

ZTech 2 Zones HVAC Controller (for Standard Gas/Electric Systems)

Improve Heating & A/C Comfort While Reducing Energy Expenses!

The ZTech 2 Zones HVAC Controller is an HVAC zone controller that operates multiple, independent comfort zones in your home using your standard gas/electric system. Zoning reduces energy use by not heating or cooling unused zones. The dual zone HVAC controller also improves comfort level within the home by allowing independent control of each zone's temperature. In addition, zoning improves your system's efficiency by satisfying heat/cool calls faster, and extends the HVAC system life reducing run times!

For two story homes, the thermal equalizer feature does away with the age-old problem of too much heat upstairs and too little downstairs, and provides for further energy savings by recycling the excess upstairs heat to the lower levels. This dual zone HVAC controller works great with standard non-power stealing single stage heat/cool thermostats or ZTech communicating thermostats controlled by X10 or serial RS232/485 systems. Easily installed and comes in a compact 6" x 8" x 1.5", one pound chassis.

• Operates 2 independent heating/cooling zones using a standard gas/electric system (not for heat pump systems)

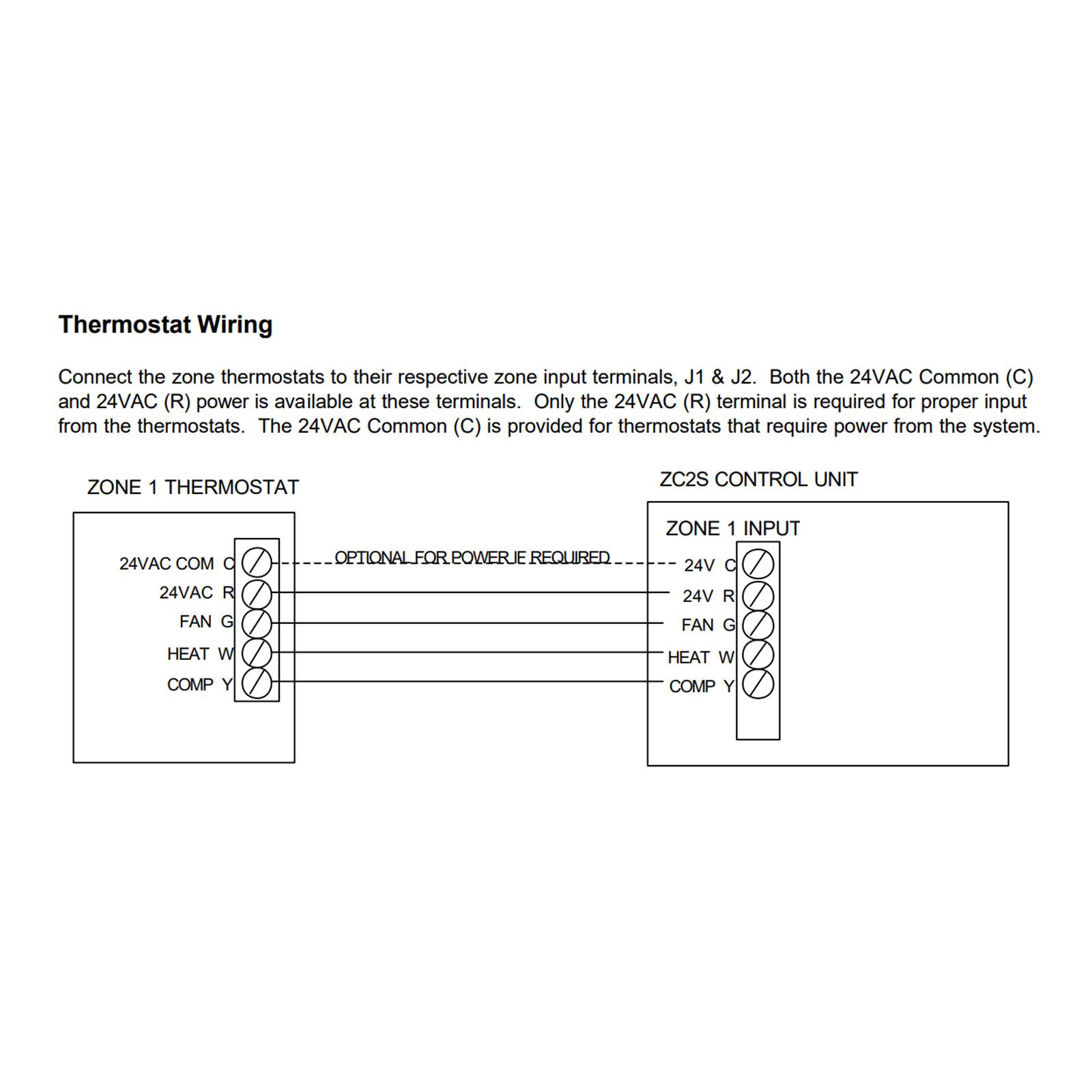

• Works with standard one stage HVAC systems and standard thermostats
• Automatically switches between heating and cooling modes based on the current room temperature
• 2-wire, 2 position 24VAC Zone damper outputs with LED status indicators on all outputs
• Thermal Equalizer helps to distribute heat more evenly by circulating air from warmer areas to cooler ones

Contents

• 2 Zones HVAC Controller
• Manual

Notes

• Not for heat pump systems.
• Do not use "power stealing" thermostats.

Saving Energy, Improving Life

ZTech Technology is a leading manufacturer of communicating thermostats, zone control systems, energy management and home automation products for residential and light commercial use.

• Manufacturer Part #: 001-00242
• UPC: N/A
• Zones: 2

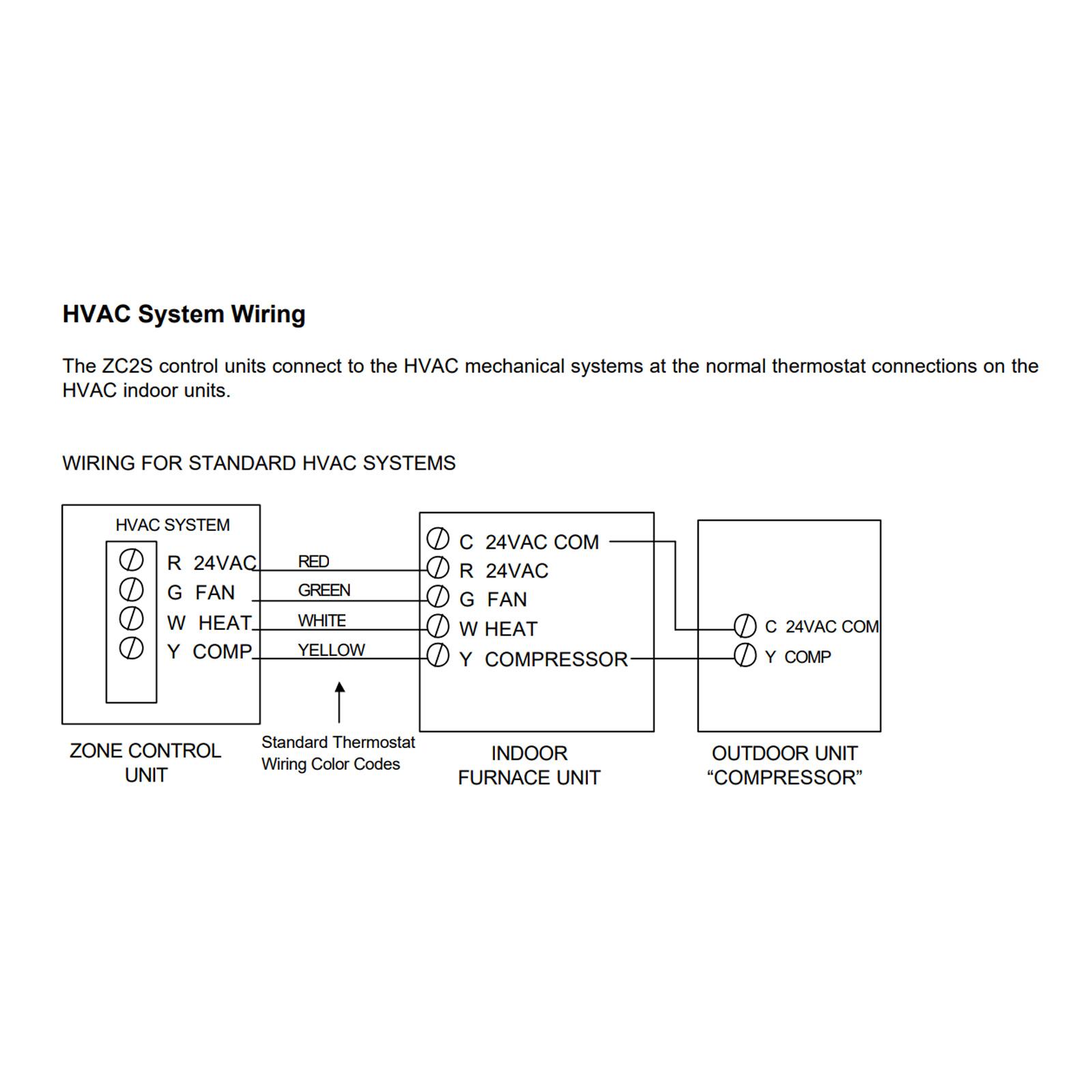

• Wiring: HVAC system and Damper wiring is typically 18Ga thermostat wiring
• Power: 24VAC from the HVAC system or a separate 40VA power transformer
• Size: 8" x 6" x 1.75"

»ZTech ZC2S 2-Zone HVAC Control Unit User Manual (.pdf)
